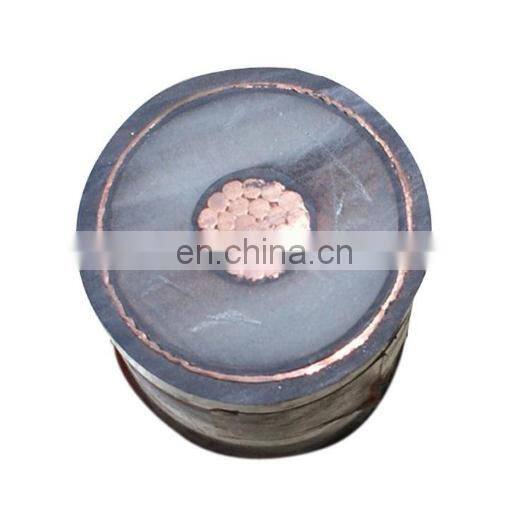

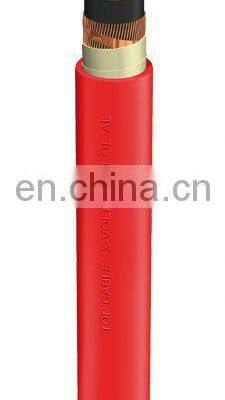

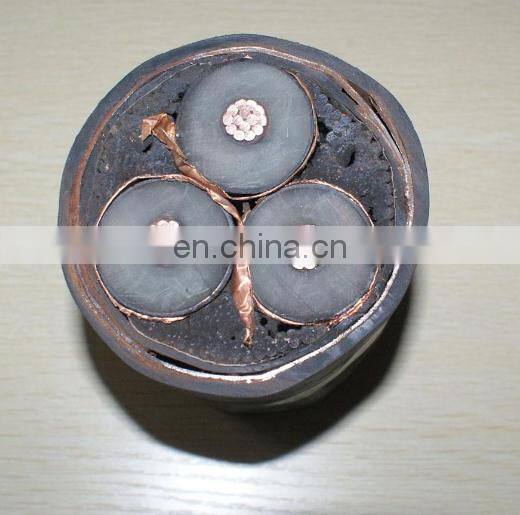

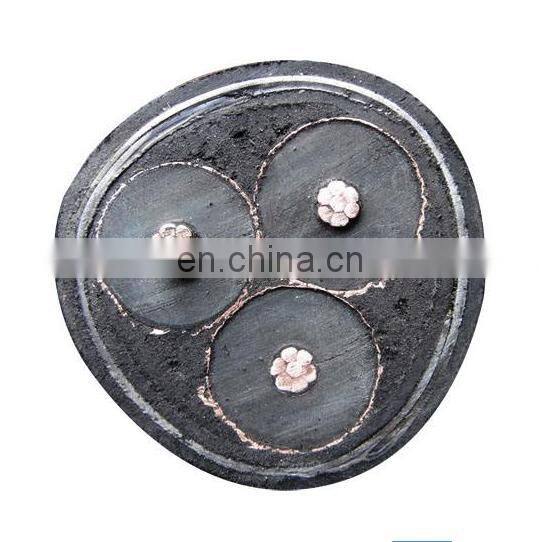

XLPE 24kv Power Cable
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Underground Cables Single Core 500mm2 XLPE Insulated High Voltage CableNegotiableMOQ: 1 -
High Voltage 30kv XLPE Cable 3x50mmNegotiableMOQ: 1
-
YJV22 Steel Wire Armored Multicore Power CableNegotiableMOQ: 1
-
YJV22 0.6/1KV Low Voltage 3x150 Power CableNegotiableMOQ: 1
-
VDE Certificate 3x150 Copper Armoured Power CableNegotiableMOQ: 1
xlpe 24kv power cable
1). Standard: IEC60502, GB/T12706
2). Voltage: 0.6/1kV
3). Nominal cross-sectional areas: 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2
4). Production range: Single core cable from 1.5mm2 to 800mm2; Multi-core cable from 1.5mm2 to 400mm2.
5). Operating characteristics:
Rated power-frequency voltage U0/U: 0.6/1kV
Max. Permissible continuous operating temperature of conductor: 90 oC
Max. Short-circuit temperature of the conductor shall not exceed(Max. 5 seconds duration): 250 oC.
The ambient temperature under installations should not be below 0 oC.
The bending radius of single core cable should not be less than 20 times of the cable diameter; The bending radius of multi-core cable should not be less than 15 times of the cable diameter.
| Type | Designation | Applications |
| YJV YJLV | Copper conductor, XLPE insulated, PVC sheathed power cable Aluminium conductor, XLPE insulated, PVC sheathed power cable | For laying indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single core cable is not permissible to lay in magnetic duct. |
| YJY YJLY | Copper conductor, XLPE insulated, PE sheathed power cable Aluminium conductor, XLPE insulated, PE sheathed power cable | |
| YJV22 YJLV22 | Copper conductor, XLPE insulated, steel tape armoured, PVC sheathed power cable Aluminium conductor, XLPE insulated, steel tape armoured, PVC sheathed power cable | For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| YJV23 YJLV23 | Copper conductor, XLPE insulated, steel tape armoured, PE sheathed power cable Aluminium conductor, XLPE insulated, steel tape armoured, PE sheathed power cable | |
| YJV32 YJLV32 | Copper conductor, XLPE insulated, steel wire armoured, PVC sheathed power cable Aluminium conductor, XLPE insulated, steel wire armoured, PVC sheathed power cable | For laying indoors, in tunnel, in cable trench or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| YJV33 YJLV33 | Copper conductor, XLPE insulated, steel wire armoured, PE sheathed power cable Aluminium conductor, XLPE insulated, steel wire armoured, PE sheathed power cable | |
| Note: The armoured single core cables is only used for D.C. system. As for A.C. system, non-magnetic armour material should be applied. | ||
welcome your inquiry.we will provide you with High quality and reasonable price wire and cable.
