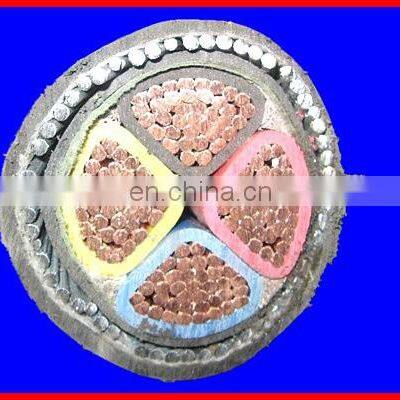

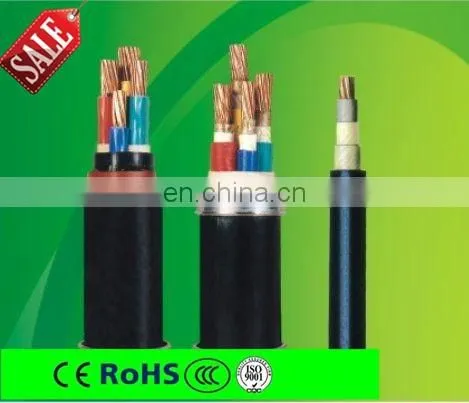

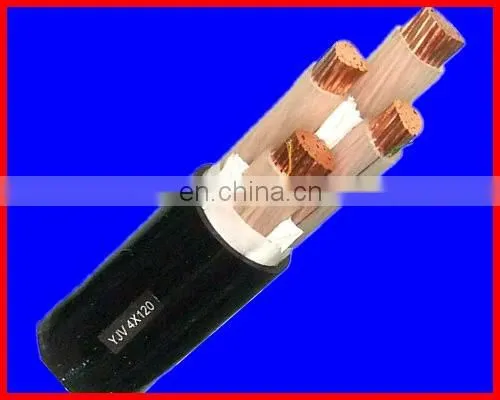

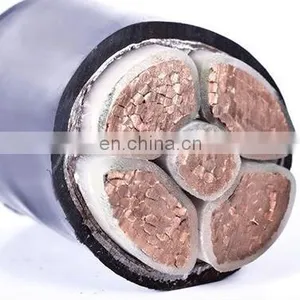

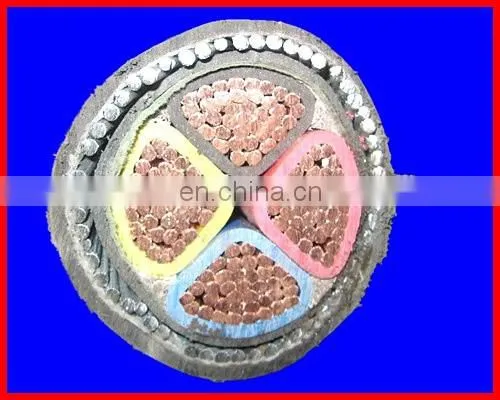

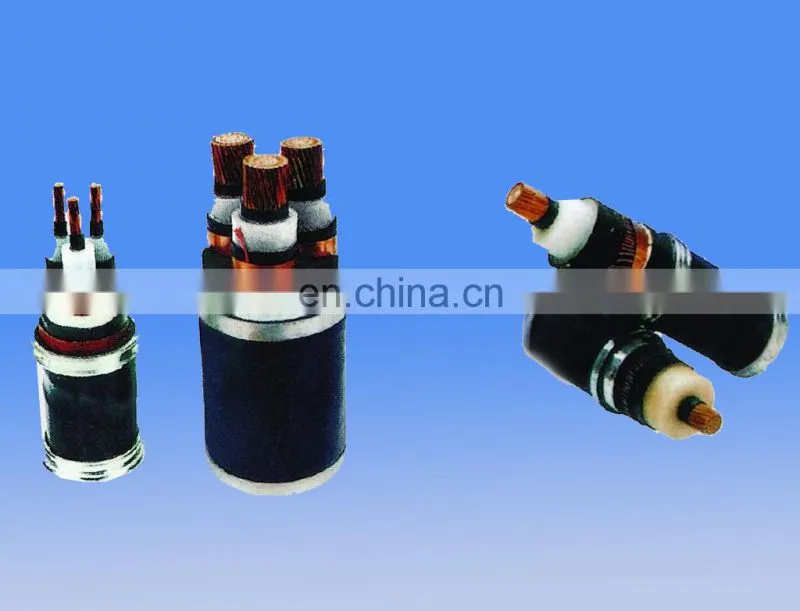

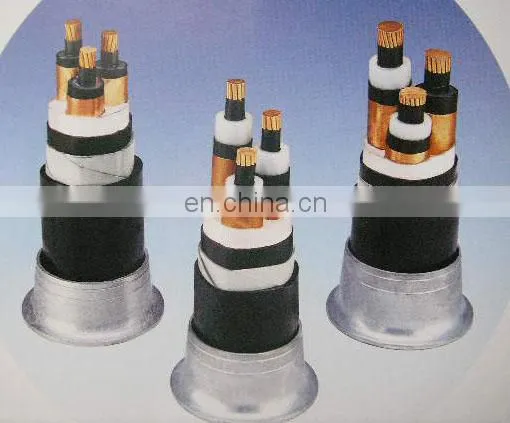

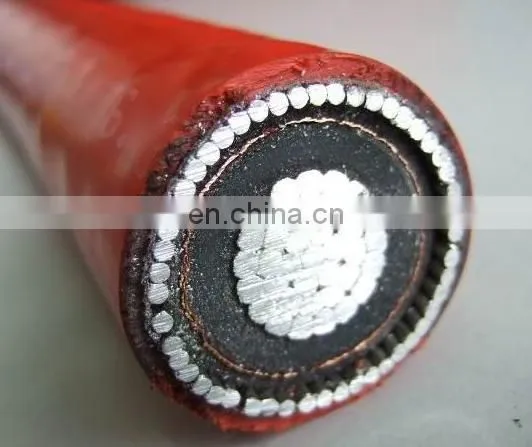

Help CenterYJV22 0.6/1KV Low Voltage 3x150 Power Cable
Related Products
-
VDE Certificate 3x150 Copper Armoured Power CableNegotiableMOQ: 1 -
0.6/1KV XLPE Insulated PVC Sheathed Cable for NordicNegotiableMOQ: 1
-
33KV High Voltage Copper Conductor XLPE Electrical Power CableNegotiableMOQ: 1
-
High Voltage 35KV Single Core 240MM2 XLPE Insulated Power CableNegotiableMOQ: 1
-
China 4x35mm2 11/33kv YJLV XLPE Insulation PVC Sheath Power CableNegotiableMOQ: 1
2.Aluminium or Copper Conductor XLPE Insulated Armored Cable
3.0.6kV~1kV~35kV
4.Reliable quality,best price
5.Strong capacity,fast delivery
Descriptions:
| 1. Application | Power cables for power networks, underground, outdoors and in cable ducting. |
| 2. Type | YJV/YJLV, YJSV/YJSLV, YJV32/YJLV32, YJSV32/YJSLV32, YJV22/YJLV22, YJSV22/YJSLV22. |
3. Standards |
ASTM, BS6622, IEC etc. |
| 4. Conductor | Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360) |
| 5. Conductor screen | Semi-conducting material |
| 6. Insulation | XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655 |
| 7. Insulation Screen | Semi-conducting material |
| 8. Metallic Screen | ndividual and overall copper tape screen to BS6622 |
| 9. Filler | PETP (Polyethylene Terephthalate) fibres |
| 10. Separator | Binding tape |
| 11. Bedding | PVC (Polyvinyl Chloride) Type TM1 to BS7655 |
| 12. Armouring |
Single Core: Aluminium Wire Armoured (AWA) Multi-core: Steel Wire Armoured (SWA) |
| 13. Sheath | PVC (Polyvinyl Chloride) Type TM1 to BS7655 |
| 14. Colour | Red or Black or as clients' request |
| 15. Voltage Rating | 19000/33000V |
| 16. Temperature Rating | 0°C to +90°C |
-
Nominal cross sectional area of conductor(mm2)Insulation thickness
(mm)
Sheath thickness
(mm)
Approx overall diameter of cable(mm)
Approx
Weight of cable
(kg/m)
Testing volatge
A.C
Cu
Al
(KV/5min)
3*4+1*2.5
3*6+1*4
0.7
0.7
1.5
1.5
13
14
236
316
147
187
3.5
3.5
3*10+1*6
3*16+1*10
0.7
0.7
1.5
1.5
16
18
461
679
234
322
3.5
3.5
3*25+1*16
3*35+1*16
0.9
0.9
2.0
2.0
22
24
1065
1360
505
615
3.5
3.5
3*50+1*25
3*70+1*35
1.0
1.1
2.0
2.0
28
31
1901
2585
816
1085
3.5
3.5
3*95+1*50
3*120+1*70
1.1
1.2
2.0
2.5
36
40
3518
4443
1440
1766
3.5
3.5
3*150+1*70
3*185+1*95
1.4
1.6
2.5
3.0
44
48
5326
6682
2100
2650
3.5
3.5
3*240+1*120
3*300+1*150
3*400+1*240
1.7
1.8
2.0
3.0
3.1
3.1
53
57
60
8501
11155
14470
3291
4440
5392
3.5
3.5
3.5
- Minimum Bending Radius:
-
Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter - and 3 core 10 x overall diameter
- where bands are positioned adjacent
- to joint or terminations provided that the
- bending is carefully controlled by the use of a former)
-
Quality goes first, we pay highly attention to this.
Good quality and competitive price will be your best choice.
Choose what you like, we will offer you the best prices.
Any inquiries or questions, pls contact me freely!~.~
