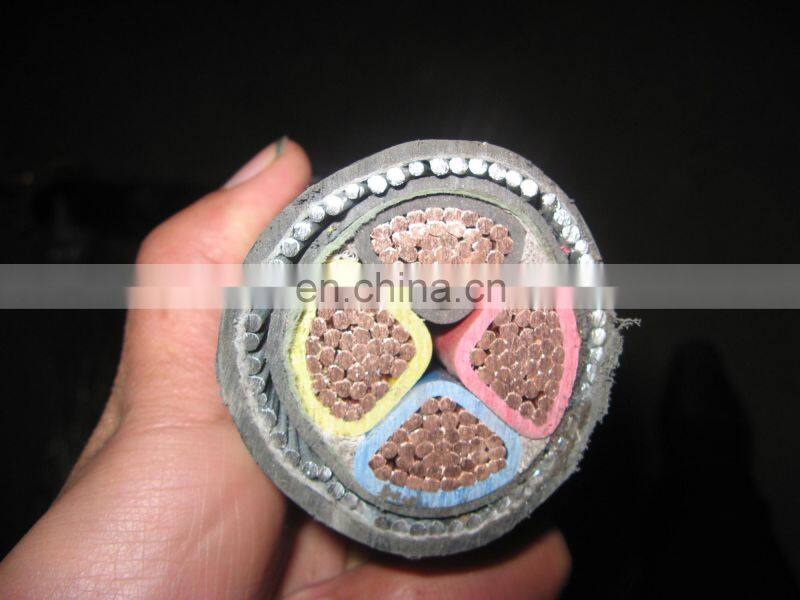

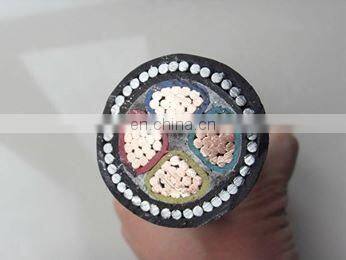

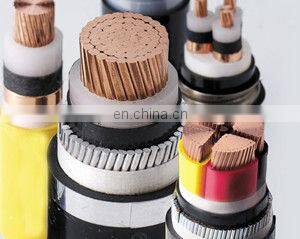

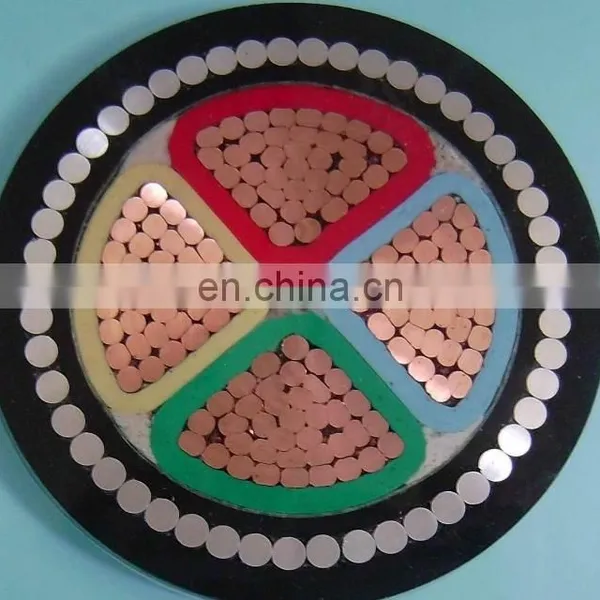

Medium voltage multi core armored PVC power cable
1.Using Feature:
(1.) The long-time working temperature of cable should not be highter than 70 oC
(2.) When core is in short-circuit(max 5s) the temperature should not exceed 160 oC
a.For single no-armored cable, it is not less than 20 times of outer diameter
b.For single-core armored cable, it is not less than 15 times of outer diameter
c.For multi-core no-armored cable, it is not less than 15 times of outer diameter
d.For multi-core armored cable, it is not less than 12 times of outer diameter
(3). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0 oC.
If so, the cable should to be preheated.
(4). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
(5).Light weight, perfect bending properties, installed and maintained easily and conveniently.
2. The description:
Cu Core |
AL Core |
Description |
Application |
VV |
VLV |
Cu(Al)Core PVC Insulated PVC Sheathed Power Cable |
For laying indoors, in ducts and tunnels, but unable to bear pulling force and pressure |
VY |
VLY |
Cu(Al)Core PVC Insulated PE Sheathed Power Cable |
|
VV22 |
VLV22 |
Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable |
For laying indoors, in tunnels and directly in ground, able to bear pulling force and pressure |
VV23 |
VLV23 |
Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Power Cable |
|
VV32 |
VLV32 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Power Cable |
For laying indoors, in wells and underwater, able to bear certain pulling force |
VV33 |
VLV33 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Power Cable |
