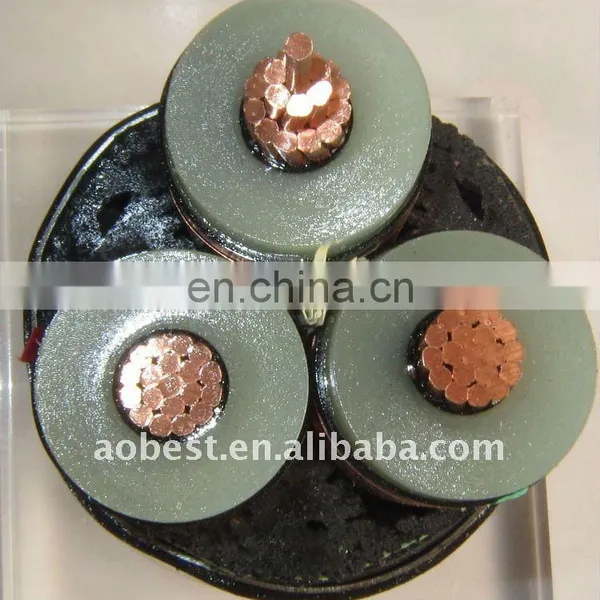

YJSV Cable With Copper Conductor Medium Voltage
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2001
Annual Export Value:
US$1.5 Million - US$2.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VV32 PVC/SWA/PVC Armored Power CableNegotiableMOQ: 1 -
Cu/rubber With Rubber Jacket Power CableNegotiableMOQ: 1
-
High Quality and Best Price VV VV22 VV32 VLV VLV22 VLV32 Power CableNegotiableMOQ: 1
-
Flame Retardant Medium Voltage Screened Power Cable(18/35kv)NegotiableMOQ: 1
-
YJV YJLV ZR-YJV ZR-YJLV XLPE Power CableNegotiableMOQ: 1
Specifications
XLPE/PVC High Voltage Power Cable
1.Aluminium or Copper Conductor XLPE Insulated Armored Cable
2.0.6kV~1kV~35kV
1.Aluminium or Copper Conductor XLPE Insulated Armored Cable
2.0.6kV~1kV~35kV
XLPE/PVC Low and medium Voltage Power Cable
- Application:
- Power cables for power networks, underground, outdoors and in cable ducting.
- Standards:
- ASTM, BS6622, IEC etc.
- Conductor:
- Class 2 stranded plain copper conductor to BS EN 60228:2005 (previously BS6360)
- Conductor screen:
- Semi-conducting material
- Insulation:
- XLPE (Cross-Linked Polyethylene) Type GP8 to BS7655
- Insulation Screen:
- Semi-conducting material
- Metallic Screen:
- Individual and overall copper tape screen to BS6622
- Filler:
- PETP (Polyethylene Terephthalate) fibres
- Separator:
- Binding tape
- Bedding:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Armouring:
- Single Core: Aluminium Wire Armoured (AWA)
Multi-core: Steel Wire Armoured (SWA) - Sheath:
- PVC (Polyvinyl Chloride) Type TM1 to BS7655
- Colour:
- Red or Black or as clients' request
- Voltage Rating:
- 19000/33000V
- Temperature Rating:
- 0°C to +90°C
- Minimum Bending Radius:
- Single Core: 15 x overall diameter
Three Core: 12 x overall diameter
(Single Core 12 x overall diameter and 3 core 10 x overall diameter where bands are positioned adjacent to joint or terminations provided that the bending is carefully controlled by the use of a former) -
We can provide more info than above data, if needed.The above are just some examples.
Customer's specifications are available upon request.
