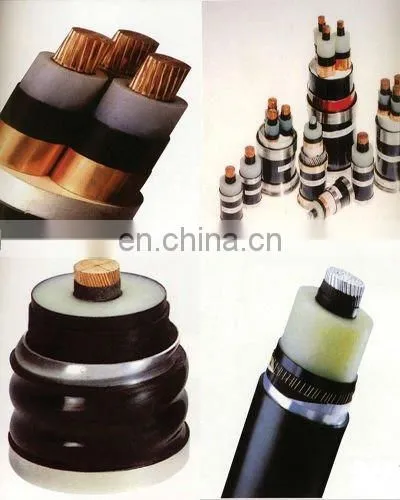

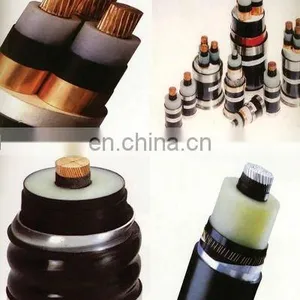

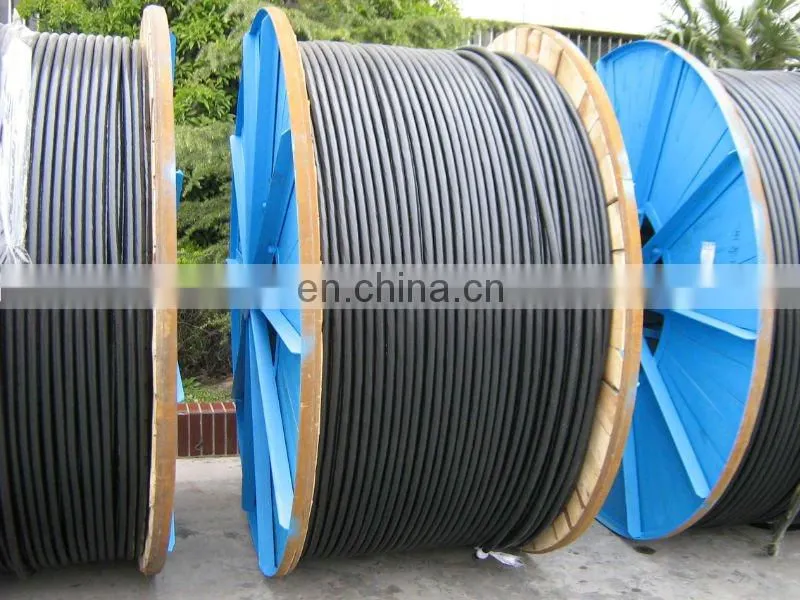

Insulated Wire Vv22 Vv32 Power Cable Electric Wire
insulated power cable VV22 VV32
Flame-retardant PVC insulated PVC sheathed power cableZR-VV22/ZR-VLV22
PVC insulated thick steel wire armored PVC sheathed flame-retardant power cable(ZR-VV32/ZR-VLV32)
PVC insulated thin steel wire armored PVC sheathed flame-retardant power cable3(ZR-VV42/ZR-VLV42)
Pressure cross-linked armored cable
1) for voltage 0.6/1KV
2) laying indoors, tunnels, pipelines, and buried
3) can withstand pressure, and the role of mechanical force
4) There are flame-retardant and non flame-retardant jacket
5) The sheathed and non-sheathed (and can withstand the mechanical forces and external force)
6) all of our products certified by the China Quality Certification Center
Standard: Wire: GB/T5023-2008
Cable: GB/T12706-2008
The following specifications for our standard, we can also manufacture according to your reques
|
Conductor nominal cross sectionmm2 |
Conductor single root number |
Insulation Thicknessmm |
Sheath thicknessmm |
Cable diameter |
Approximate Cable WeightKG/KM |
|
1*1.5 |
1 |
0.8 |
1.4 |
6.1 |
50.7 |
|
1*2.5 |
1 |
0.8 |
1.4 |
6.5 |
63.5 |
|
1*10 |
7 |
1 |
1.4 |
9.2 |
166.6 |
|
|
|
|
|
|
|
|
1*630 |
91 |
2.9 |
2.2 |
43.7 |
6707 |
|
2*1.5 |
1 |
0.8 |
1.8 |
10.5 |
119 |
|
2*2.5 |
1 |
0.8 |
1.8 |
11.3 |
150 |
|
2*4 |
1 |
1 |
1.8 |
13.1 |
210 |
|
2*6 |
1 |
1 |
1.8 |
14.1 |
264 |
|
2*10 |
7 |
1 |
1.8 |
16.7 |
393 |
|
|
|
|
|
|
|
|
2*120 |
19 |
1.6 |
2.1 |
31.3 |
2733 |
|
2*150 |
37 |
1.8 |
2.2 |
34.7 |
3396 |
|
2*185 |
37 |
2 |
2.4 |
37.9 |
3943 |
