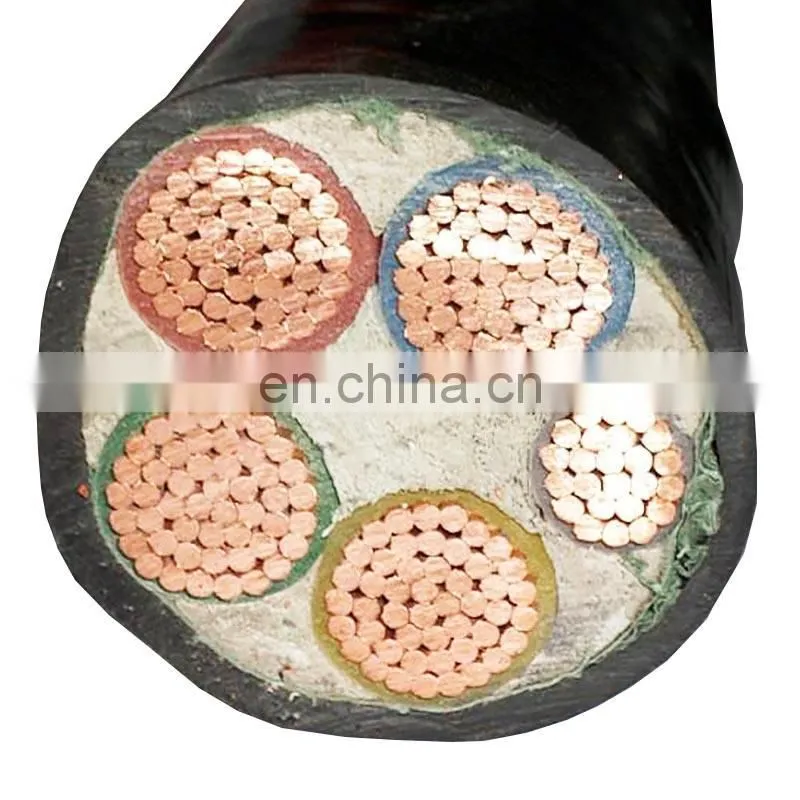

Help Center2021 Year Copper Conductor PVC Insulated Steel Tape Armored PVC Sheathed Power Cable
Related Products
-
China Hot Sale Copper Conductor RWU90-XLPE CableNegotiableMOQ: 1 -
4x95mm2+1x50mm2 Copper Conductor PVC Insulated Sheathed CableNegotiableMOQ: 1
-
Stranded Aluminum Conductor Overhead Cable With All InsulatedNegotiableMOQ: 1
-
China Best Price Cobre(Cu) 6/10 KV XLPE Cable for South AmericaNegotiableMOQ: 1
-
NYY Cable 25mm2 50mm2 NYY Power CableNegotiableMOQ: 1
Copper Conductor PVC Insulated STA PVC Sheathed Power Cable
1.Features and applications
XLPE insulated High voltage power cable of 35kv or lower not only has excellent electric character, mechanical character, heat and aging-resistant character, environmental stress-resistant character and chemical corrosion- resistant character, but simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working as well.
They are suitable for using in rated AC voltage(Uo/U) 6/6-26/35kv system transmitting and distributing lines. According to different sheath make ups, they can be used for laying in the air (cable bridges,indoor wall supports and groove boxes) and in soil(direct burying,cable canals and pipelines)
2.Standard
The product is manufactured according to the standard of GB12706 or IEC,BS,DIN and ICEA upon request.
3. Type Description & Application Occasion of xlpe insulated high voltage power cable
|
Type |
Description |
Application n |
||
|
Cu |
Al |
|||
|
YJV |
YJLV |
XLPE insulation PVC sheath power cable |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
|
|
YJY |
YJLY |
XLPE insulation PE sheath power cable |
||
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
|
|
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable |
||
|
YJV62 |
YJLV62 |
XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable |
||
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint
. |
|
|
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
||
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
|
|
Special Note |
,6272.,. The single-core magnetism material packs the cable is not suitable for to use for the AC power supply back track, the necessity hour eligibility uses the single-core 62 or 72 type pack the cable. Disallow the cent to cross the magnetism piping mutually when single-core cable establish, the in order to prevent results in the descent that cable transport electric current ability. |
|||
4.operating characteristics
1, Rated power-frequency voltage Uo/U : 3.6/kV-26/35kV
2,Max.permissible continuous operating temperature of conductor: 90
3,Max.short-circuit temperature of conductor shall not exceed 250.(5s maximum duration ).
4,The ambient temperature under installation should not below 0
5, The bending radius of a single-core cable should not less than 20 times of the cable diameter. The bending radius of a three-core cable should not less than 15 times of the cable diameter.
Dear customers, we're a leading and professional manufacturer of cables and wires in China, and has over 10 years of production and marketing experience. To offer the best-quality products with the lowest price is our principle. We'd like to cooperate with more customers from other places.
For more information about the products and our company, please contact with us.
