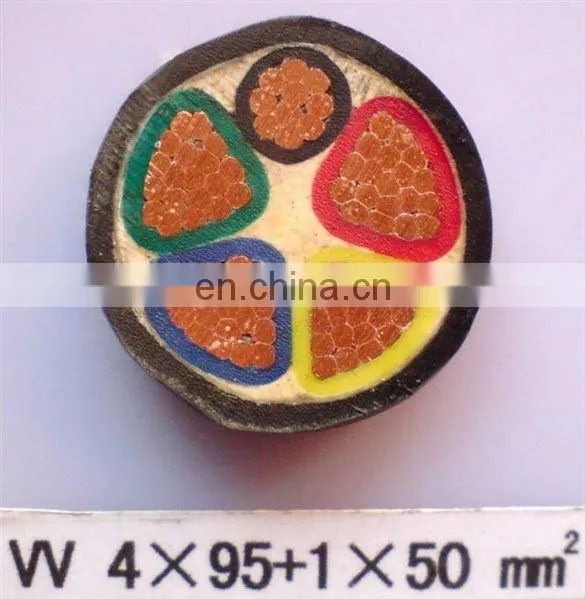

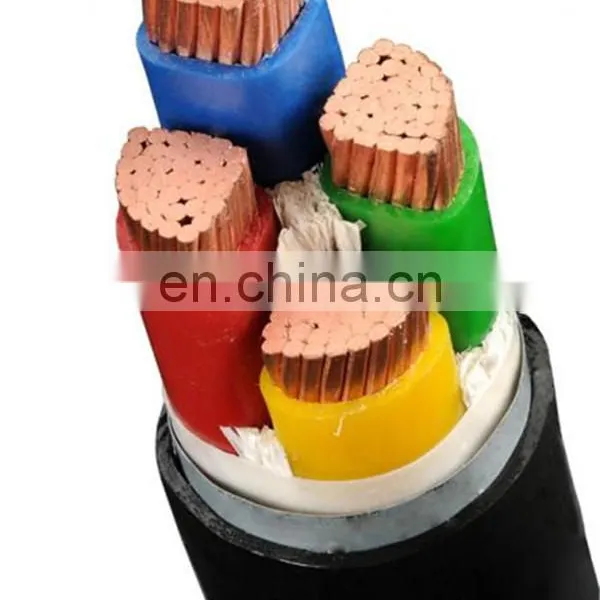

Help Center4x95mm2+1x50mm2 Copper Conductor PVC Insulated Sheathed Cable
Related Products
-
Stranded Aluminum Conductor Overhead Cable With All InsulatedNegotiableMOQ: 1 -
China Best Price Cobre(Cu) 6/10 KV XLPE Cable for South AmericaNegotiableMOQ: 1
-
NYY Cable 25mm2 50mm2 NYY Power CableNegotiableMOQ: 1
-
CHINA New Products SZ1-K Power Cable for Spain Electric WireNegotiableMOQ: 1
-
CHINA Best Price Copper Armoured Cable 4 Core 25mm for PakistanNegotiableMOQ: 1
We can supply various armoured cable with competitive price according to IEC, ASTM, DIN, BS standards.
armoured cable ------- steel tape armoured cable or steel wire armoured cable
0.6/1KV PVC Insulated PVC sheathed flame retardant and npn-flame retardant power cable.
1. Product Performance:
(1).The long-time permissible operation temperture of conductor shall not be higher than 70oC.
(2).Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.
(3).The power cable is not limited by drop in level when being laid,and the ambient temperature shall not be lower than 0 oC.
(4).Perfect chemical stability,resistant against acids,alkalis,grease and organic solvents,and flame.
(5).Light weight, perfect bending properties, installed and maintained easily and conveniently.
Voltage rating:0.6/1kV.
Conductors:copper or aluminum.
Numberof cable cores: one core(Single core), two cores(Double cores), threecores, four cores( Four Equal-section-area cores or threeequal-section-area cores and one smaller section area neutralcore), five cores(Five equal-area cores or three equal-section-areacores and two smaller section area neutral cores). We provide armouredtrpe and non-armored type for the power cables above.
Our companyhas been carrying out Chinese national standard GB 12706 and GB12666.6( equivalent to IEC 60502 and IEC 60331) for PVC insulated powercable and fire resistant cable needed by domestic customer, and forforeign customers we can manufacture in accordance with BS, DIN andother countries, standards. In addition,we can design and manufacture PVCinsulated power cable with special characteristics according to needsof customers.
2. Technical Requirements
Description
|
Cu Core |
AL Core |
Description |
|
VV ZR-VV |
VLV ZR-VLV |
Cu(Al)Core PVC Insulated PVC Sheathed Power Cable Cu(Al)Core PVC Insulated PVC Sheathed Fire Resistant Cable |
|
VY ZR-VY |
VLY ZR-VLY |
Cu(Al)Core PVC Insulated PE Sheathed Power Cable Cu(Al)Core PVC Insulated PE Sheathed Fire Resistant Cable |
|
VV22 ZR-VV22 |
VLV22 ZR-VLV22 |
Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable |
|
|
|
|
|
VV32 ZR-VV32 |
VLV32 ZR-VLV32 |
Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Power Cable Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Fire Resistant Cable |
|
|
|
We will provide you with High quality and reasonable price wire. welcome your trial order.
