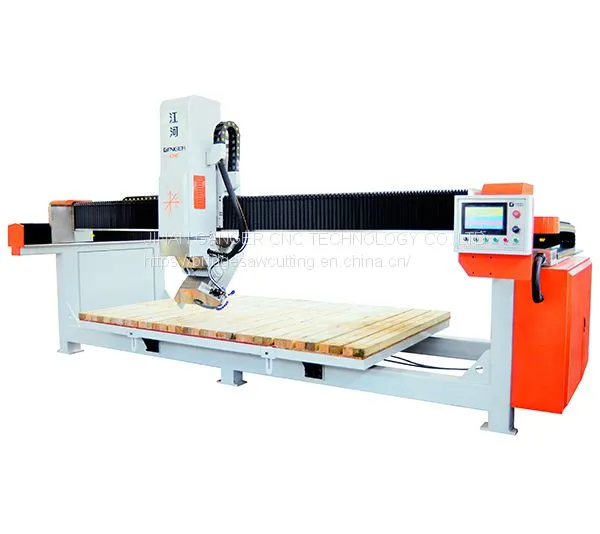

4-Axis Southeast Asia 45 Degree CNC Bridge Saw GQ-3220B Slab Cutting Machine up to 50mm

4-Axis Southeast Asia 45 Degree CNC Bridge Saw GQ-3220B Slab Cutting Machine up to 50mm thumbnail-1
4-Axis Southeast Asia 45 Degree CNC Bridge Saw GQ-3220B Slab Cutting Machine up to 50mm thumbnail-2
4-Axis Southeast Asia 45 Degree CNC Bridge Saw GQ-3220B Slab Cutting Machine up to 50mm photo-1
4-Axis Southeast Asia 45 Degree CNC Bridge Saw GQ-3220B Slab Cutting Machine up to 50mm photo-2
US$ 13800 - 15200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Ganger
Place of Origin:
China
Model Number:
GQ-3220B
Contact Supplier Request Quote Chat Now
Jinan Ganger Cnc Technology Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Ganger
Place of Origin China
Model Number GQ-3220B
Type Stone Cutting Machine
Use Granite
Certification CE
After-sales Service Provided Overseas third-party support available
Warranty 1 year
Weight 4500KG
Dimension(L*W*H) 5500*3000*2650mm
Production Capacity 30sets/month
Condition New
Voltage 380V
Power(W) 25KW

Machine Features:

1. XYZC four axis, C axis 0 to 135 degree automatic rotation,horizontal, vertical and diamond cutting, and miter 45° cutting.
2. PLC control system, input operating parameters on the control panel, and the cutting process is automated and programmed.
3. By infrared ray to confirm the position of the workpiece.
4. Whole steel structure machine body ensuring high stability.
5. Running stability, high precision, high speed.
6. Compact and rational design, small size machine, convenient to handle and move.

Applicable industries and materials:
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.

Technical parameters
Model
GQ-3220B
X/Y/Z Axis working size
3200*2000*200mm
Diameter of blade
350mm
Working table size
3200x2000mm
Rotation speed of blade
 3000/6000rpm
Blade motor power
 11KW
Total power
25KW
C axis rotation angle
0°- 135°
Control system
GANGER
Gross weight
4500KGS
Quality Control
1.1  In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
1.2  Each machines will run around 24 hours and tested about 8 hours before delivery to ensure
normal using in your workshop .

Guarantee & After sale services
2.1  Free training available here China or teaching video with machine to your Country
2.2  12 months guarantee under normal use & Lifetime maintenance free of charge.
2.3  Spare parts shall be changed free of charge if any problem during the warranty period
2.4  Consumable parts will be offered at agency price when replacement needed.

OEM service available
3.1  XYZ working size customized according to your requirement
3.2  Main spare parts: motor,system,inverter choose as your choice
3.3  Machine brand and oil painting customized (agent available or MOQ 10 sets)

Delivery
4.1 Standard model
3 axis cnc router 4 axis cnc router 5 axis cnc router around 90 working days
4.2  Customized model
Depends on special spare parts delivery time

Payment terms
5.1  T/T in advance
5.2  West union: Available when amount less than 1000$, banking charges paid by buyer
5.3  LC: Available when amount more than 30000$,
      LC draft should be sent to confirm before Original LC made.

With near 16 years rich experience, we assure you perfect machine quality and after sale service.
Based on mature technical assurance, my cnc router will be surely finish satisfactory work for you.
I am Layne for your service now, any questions or requirement about machine ,directly contact me here online ,or email as you like.
I will always be ready to give what you need
Just Start right now.
