Technical parameter:
Model |
ZT-3004 Phone Glass 3 Point Bending Test Machine |
Max load |
5KN,10KN, 20KN |
Accurate grade |
1 % /0.5 % |
Effective measuring range |
0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
Measuring accuracy |
Display the value ±1%/Display the value±0.5% |
Tester resolution |
Max load 1/200000,regardless of inside and outside,constant the resolution |
Load sensor |
Basic configuration:sensor(max load): one Extended configuration:can add more sensors |
Effective testing width |
390mm(can be widened according to customer’s requirement ) |
Effective Tensile stroke |
800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
Range of testing speed |
0.001~200mm/min ; 500mm/min (1000mm/min is option) |
Accuracy of displacement measurement |
Tolerance: ±0.5%/ tolerance: ±0.2% |
Deformation of measured system(according to the requirements) |
Min span :10mm, Max range of deformation :800mm Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
Accuracy of measured deformation |
Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
safety |
Electronic-limit protection |
Testing platform moving device |
Fast /slow two speeds to control,can jog |
Return back |
Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
Overload protection |
Overload 10%,automatic protection |
fixture |
A set of tensile fixture |
Machine size |
80x55x220cm(length*width*height) |
Power system |
Panasonic AC Servo Motor + Driver + high-precision ball screw |
Power supply |
220V,50HZ, |
Power |
0.4KW(depending on different demand of force, using different motor) |
Machine weight |
(about)250 Kg |
Units |
Kg, N, LB, TON, can be exchanged. |
Equipment summary:

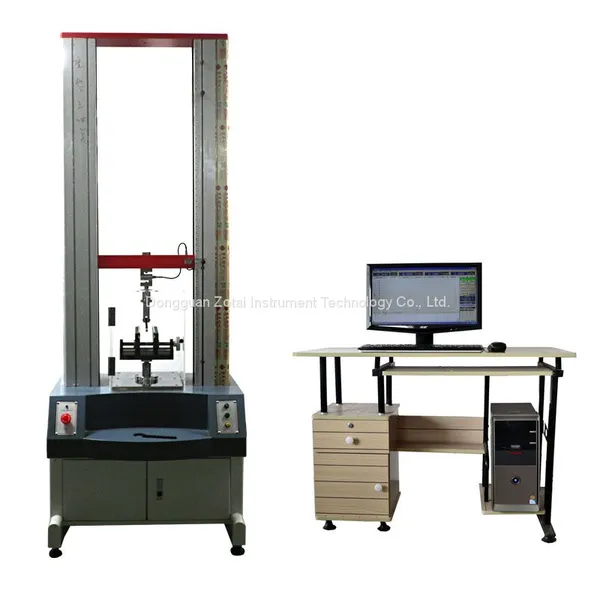

Computerize 3 Point Bending Test Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 2 ton.
Main feature:
Adopted photoelectric encoder to measure the displacement, the controller uses the embedded single-chip microcomputer structure with multi-function software, which combined with measurement, control, calculation and storage. It can automatic calculate the stress, rate of elongation (need to add with extensometers), tensile strength, elastic modulus, automated statistical results; automatically recorded the biggest point, breaking point, the designated point value or the rate of elongation; Using computer to display the dynamic curves in the testing process and process the data, After testing, it can re-analysis and editing the data by amplifying the curves through the graphics processing module, printing reports, product performance reached the international advanced level.
Main functions:
Computerize Phone Glass Bending Test Equipment is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
Applicable industry:
Computerize 3 Point Bending Test Machine is widely used in controlling the quality; Rubber & Plastics; metallurgical iron and steel; manufacturing machinery; electronic equipment; automobile production; textile fiber; wire and cable; packaging materials and foodstuffs; instrumentation; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research Laboratory; inspection arbitration, technical supervision departments; building materials, ceramic; Petroleum & Chemical; other industries.
Corresponding standard:
GB/T16491-1996 electronic universal testing machine
