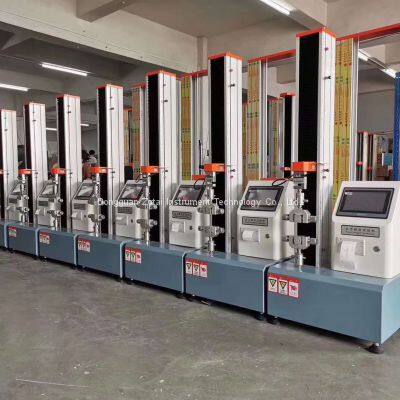

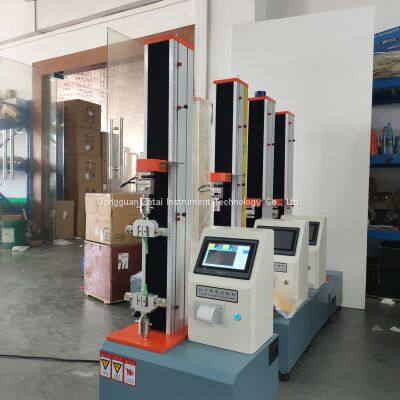

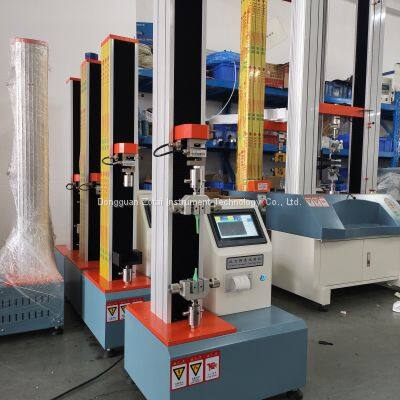

Desktop 1KN Digital Tensile Test Machine
Technical parameters:
Model |
ZT-3001B Plastic Wrap and Agricultural Film Material Tensile Test Equipment |
Maximum load |
1KN high-precision sensors from U.S.A. |
Capacity choice |
200N, 500N, 1KN or less than can be self-selected |
Unit |
KG,N,LB, TON |
Measurement system |
Load cell |
Accuracy load of measurement |
the load cell + LCD screen ± 0.5% (full range of 5% -100%) |
Resolution |
1 / 50000 |
Maximum test stoke |
About 500mm (excluding gripper, special testing space can be customized according to customer needs) |
Test speed |
50-300mm / min with stepless speed and 5 fixed-speed (special testing speed can also be customized according to customer needs) |
Data sampling frequency |
200times/sec |
Machine with thermal printers can automatically output the testing results. | |
Can store 10 testing results and auto-calculate its average, auto-grab maximum force and the force at break. | |
Display |
LCD display, membrane touch keys, with the following functions. |
Machine size |
45x58x135cm (length*width*height) |
Weight |
75KG |
Ratio of Breakpoint |
from 0 ~ 99%, which the user can set according to different materials to stop the machine, realizing stop machine at any position. |
Safety |
The system would shut down if overload or over-trip. |
Shape |
column shell is made of aluminum material. |
Power system |
AC Motor |
Power |
120W(depending on different demand of force using different motor) |
Power supply |
1Φ, 220V, 15A |
1. Single test, 10-point statistics manually and automatically calculate its average and break values;
2. Multi-unit automatically exchange such as kg, Lb, N;
3. Function of free to take point;
4. With multi-calibration function;
5. Auto printing function;
6. Using 24-bit AD acquisition, resolution 1 / 200000;
7. Decimal digits 0 to 4 arbitrary choice;
8. Starting up using password protection feature can effectively prevent the non-operators to use
9. Ratio of Breakpoint from 0 ~ 99% makes the user can set according to different materials to stop the machine
10. Overload protection function can be set, effectively preventing machine from overload;
Equipment summary:
PLC Control Plastic Wrap and Agricultural Film Material Tensile Test Equipment is a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1KN.
Main functions:
PLC Control Plastic Wrap and Agricultural Film Material Tensile Test Equipment can be test all the material in tensile, compression, bending, shear, peel, tear, two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials,
Corresponding standard:GB/T16491-1996 electronic universal testing machine
Applicable industry:
PLC Control Plastic Wrap and Agricultural Film Material Tensile Test Equipment is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.
Main feature:
1. Excellent design: my company has focused on product appearance over the years, company has developed many products that is similar with the foreign products, the surface of product is made of aluminum and process by electrostatic spray
2. digital force displayed by LCD , discernible tension or pressure, LCD display clearly
3. Three kinds of units: N,Kg ,Lb ,ton option or automatically exchange;
4. LCD with backlight can be used in low-light environments
5. Single measurement, it can record the max force of tension and compression in both directions, automatic or manual cleared to zero.
6. The system would shut down if overload or over-trip.
7. Structure of single-column is beautiful and sophisticated, seating operation, relaxation and nature.
