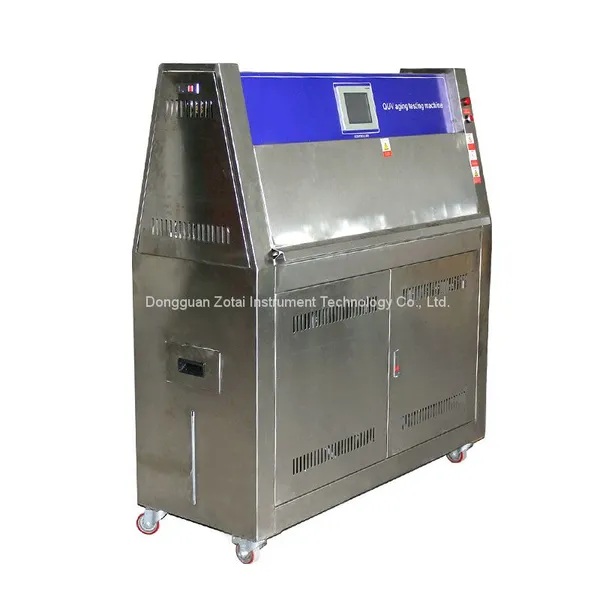

UV Light Rubber Accelerated Aging Test Chamber
Technical parameter:
Name |
UV Light Rubber Accelerated Aging Test Chamber |
Bulb number |
UV Lamp 4,spare lamp :4 |
ATLAS,UVA340,UVB313,UVC351) | |
Ultraviolet tube |
UV wavelength 280~ 350nm |
Recorder |
Option |
Radiometer |
Option |
UV temperature |
RT+10 ℃ to 75 ℃ |
| Temperature uniformity | ±3°C |
Temperature fluctuation |
±0.5°C |
Humidity range |
≥75%RH |
Inner center distance of lamp tube |
65~70mm |
| The distance between the sample and the center of the lamp tube | 55mm |
Water spray |
0.8MM spray hole, 8 nozzles |
Water and consumption |
distilled water, 8 liters / day |
Volume |
120 * 50 * 60cm (W * D * H) |
Outer box room size |
145 * 85 * 165cm (W * D * H) |
Weight |
150kg |
Power |
1 ψ , 120V/60Hz,16A or 230V/50Hz, 9A,1800W(max) |
Equipment summary:
UV aging testing machine can simulate the sun, rain and dew to damage the material, UV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Main functions:
UV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.
Corresponding standard:
Accord with ASTMG53-77,ASTM D4355
Applicable industries:
It is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc.
