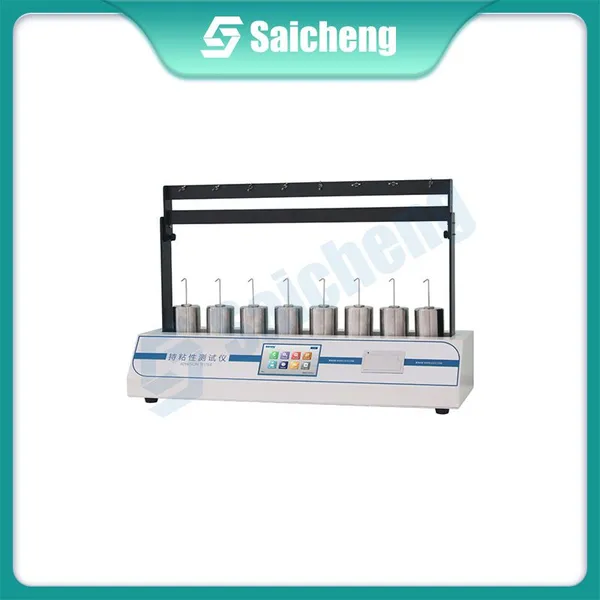

Help CenterTape Label Lasting Adhesion Tester
Related Products
-
Adhesive Label Temperature Control Lasting Adhesive TesterUS$ 1000 - 2000MOQ: 1 Set -
Adhesive Label Peel Strength TesterUS$ 1000 - 2000MOQ: 1 Set
-
Label Film Soft Package Peel Force TesterUS$ 1000 - 2000MOQ: 1 Set
-
Label Sticker Initial Adhesion TesterUS$ 1000 - 2000MOQ: 1 Set
-
Bottle Wall Thickness Measurement TesterUS$ 1000 - 2000MOQ: 1 Set
Ø Standard test plates and weights ensure the accuracy of data.
Ø Touch interface is convenient for customers to operate and check test data.
Ø Intelligent software provides users with better experiences.
Ø Eight stations can test groups of specimens simultaneously.
Ø Testing results can be printed by the embedded micro-printer.
PrincipleThe test plate with adhesive specimen is vertically hanged on the frame and its bottom is attached with a standard weight. The lasting adhesive property can be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at such load.
Standards GB 4851, JIS Z0237, ASTM D3654ApplicationsVarious adhesives, e.g, pressure-sensitive tapes, medical patches, adhesive labels and protective films.Technical SpecificationsWeights |
1000 ± 5 g (with triangle hook) |
Standard Roller |
2000g ± 100g |
Size of Test Plate |
125 mm (L) × 50 mm (W) × 1.1 mm (D) |
Time Range |
0~10000h (Normal) |
Number of Stations |
8 |
Dimension |
600 mm (L) × 240 mm (W) × 600 mm (H) |
Net Weight |
23kg |
Standard: Instrument, Micro-Printer, Weights, Triangle Hook, Test Plate, Standard Roller
Optional: NIST SRM1810A Fiber Board, Horizontal Test Accessories (Horizontal Test Frame, Weights, Test Plate)
