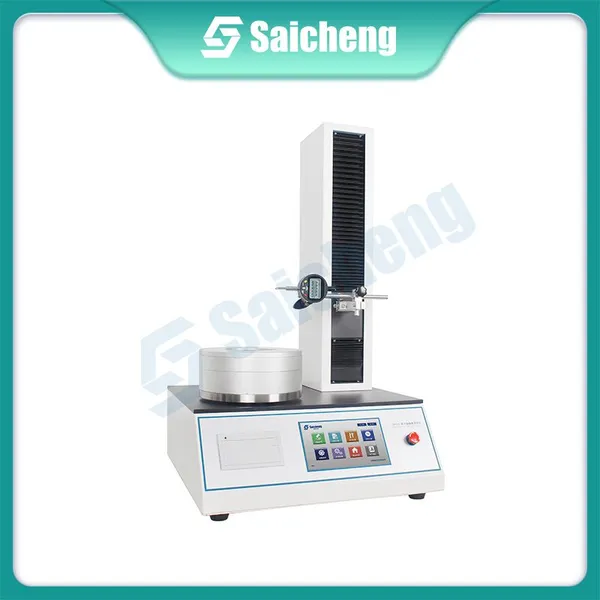

Glass Bottle Perpendicularity Tester is suitable for measuring the perpendicularity (deviation) of ampoule, vials and other bottles of drugs, food, cosmetics. According to the international standards, the innovative design and the fully automated process greatly improves the accuracy of the test.
Features
Ø Touch interface is convenient to operate. The instrument automatically groups and analyzes maximum, minimum, average value.
Ø Two test modes of vertical axis deviation and circle run-out are getting to meet different test requirements.
Ø 360° measurement deviation of compensation is to ensure the test accuracy.
Ø Equipped with micro-printer.
Ø Functions of curve display in real time, storage of data, statistics, printout are essential.
Ø GMP management of users’ grading authority is advance.
Principle
Fix the bottom of the bottle on the rotating plate of the horizontal plate, make the mouth of the bottle touch the dial gauge, and rotate 360° to read the maximum and minimum values. 1/2 of the difference between the two is the perpendicularity value.
Standards
GB/T 8452-2008, GB/T 2639, QB/T 2357, QB/T 1868, YBB00332002-2015, YBB00332003-2015, YBB00032004-2015.
Technical Specifications
Test Range |
0-12.7mm/0.5″ |
Resolution |
0.001mm/0.00005″ |
Diameter of Sample |
5mm ~ 190mm |
Height of Sample |
5mm ~ 400mm |
Speed of Electric chunk |
2r/min |
Speed of Testing Head |
300mm/min (Electronic) |
Dimension |
600 mm (L) X 480 mm (W) X 800 mm (H) |
Power Supply |
AC 220V 50Hz |
Net Weight |
58 kg |
Configurations
Instrument, Measuring Device, Micro-Printer, Professional Software, Communication Cable.
Saicheng Instrument is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice.
