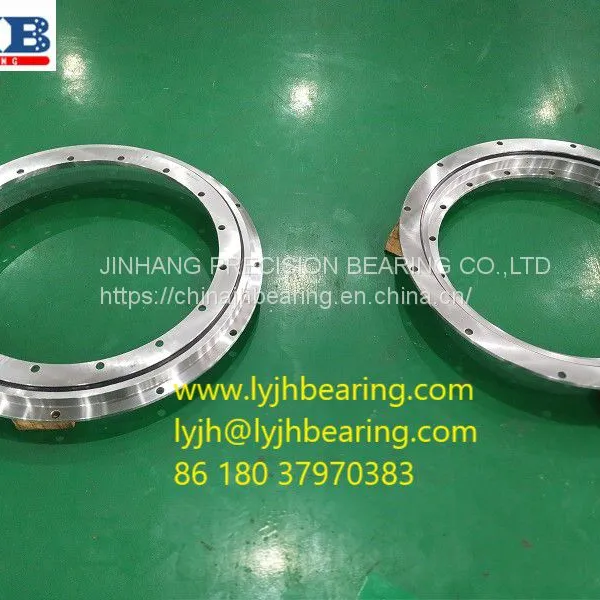

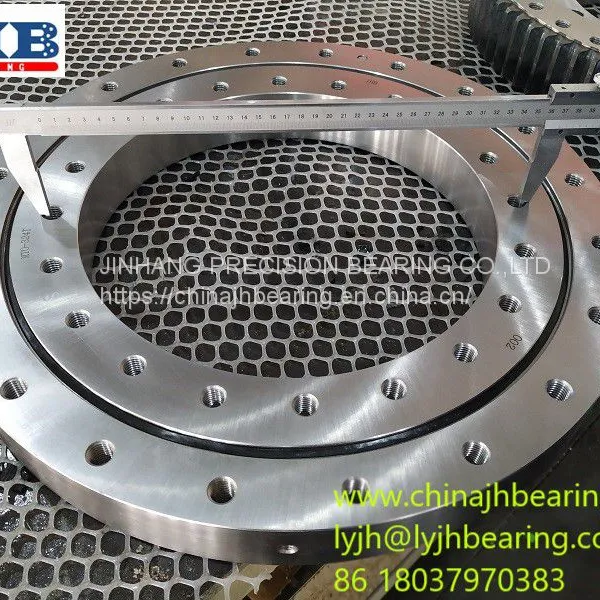

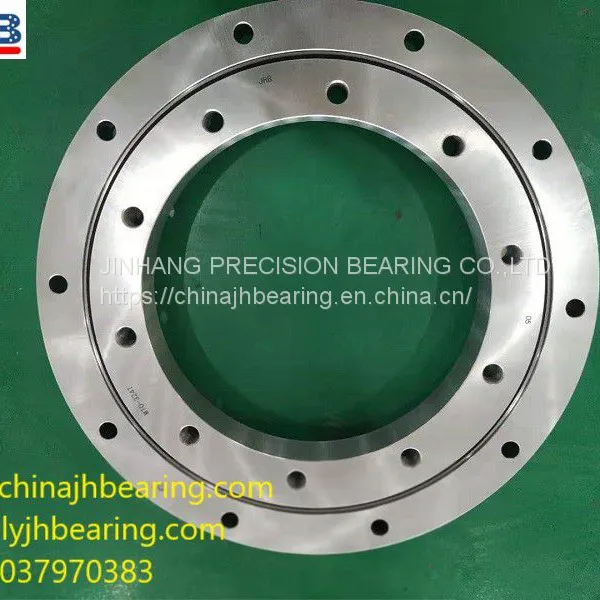

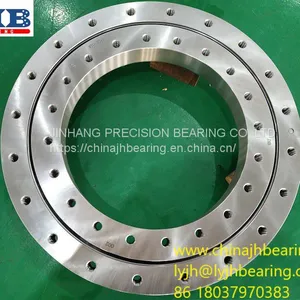

VLA 200644 N Slewing bearing 742.3x534x56mm for conveyor booms equipment
VLA 200644 N bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:742.3mm,Inner diameter:534mm,Height:56mm, It is the light series bearing structure with teeth.
Description |
VLA 200644 N slewing ball bearing |
Dimension(ODXIDXH) |
742.3x534x56mm |
Outer diameter(OD) |
742.3 mm |
Inner diameter(ID) |
534 mm |
Width/Height/(H) |
56 mm |
Gear teech d0 |
732MM |
Gear teeth m |
6 |
Gear teeth Z |
122 |
weight |
52kgs |
Material |
42CrMo,42CrMo4V,50Mn |
Rolling |
LYC ball |
Package |
Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time |
20-30 days |
Serive |
Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
