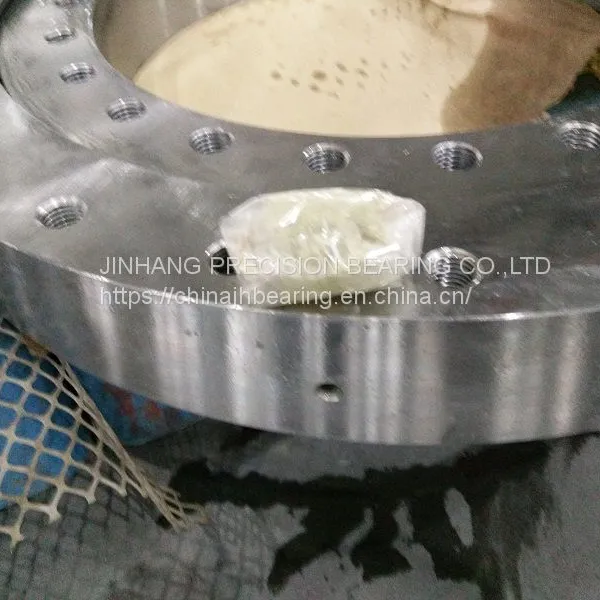

010.35.559 four point contact ball slewing bearing without teeth 431.8x695.452x90.932mm
010.35.559 four point contact ball slewing bearing without teeth belong to China slewing bearing standard.we can offer the dimension 431.8x695.452x90.932mm 010.35.559 bearing.
010.35.559four point contact ball slewing bearing specification as follows:
Slewing bearing type 010.35.559
Boundary dimension: 431.8x695.452x90.932mm
Outer dia: 695.452 mm
Inner dia: 431.8mm
Height 90.932mm
Oil nipple: yes
Seal: double side seal
Soft zone: Yes
Plug: yes
Slewing bearing type |
010.35.559 |
Boundary dimension: |
431.8x695.452x90.932mm |
Outer dia: |
695.452 mm |
Inner dia: |
431.8mm |
Height |
90.932mm |
Oil nipple |
yes |
Outer ring and inner ring material |
42CrMo,50Mn |
Ball material |
GCr15 |
Ball brand |
LYC |
Seal material |
NRC |
010.35.559 slewing bearing material and heat treatment:
The heat treatment of the gear teeth is Normalised (N), the hardness of raceway is HRC58-64 After quenched and tempered. The 010.35.559 slewing ring material is 50Mn OR 42CrMo.
Storage and storage life of slewing rings 010.35.559 :
Bearings should only be stored lying down, never standing up
The storage life of the bearings is limited by the storage life
of the grease. Experience shows that the greases with a mineral
oil base used can be stored for up to 3 years if the following
preconditions are met:
■ closed storage room
■ dry, clean rooms with temperatures between 0 ºC and +40 ºC
■ relative atmospheric humidity not more than 65%
■ no influence by chemical agents such as vapours, gases, fluids.
After long storage periods, the frictional torque may temporarily be higher than that of freshly greased bearings. The lubricity of the grease may also have deteriorated.
