VLI 200744 N slewing bearing for conveyor booms machine 848x648x56mm
- 3000 Piece / Pieces per Month
- SHANGHAI
- T/T
- 30 days
You May Like
-
VLI 200844 N slewing ball bearing 948x736x 56mm stackers machine
-
Spherical roller bearing 22209 E 22209 EK 45x85x23mm for Roller tables
-
Spherical roller bearing 21309 E 21309 EK 45x100x25mm for Calanders machine
-
Spherical roller bearing 22309 E 22309 EK 45x100x36mm for Calanders
-
Handling mine machine slewing ball teeth bearing RKS.21 0541 640x434x56mm
-
Man lift platform use slewing ball teeth bearing RKS.21 0641 742x534x56mm
Product Details
| Brand Name | JHB | Place of Origin | China | |
| Model Number | VLI 200744 N | Feature | Four Point Contact | |
| Seals Type | doulbe seal | Outside Diameter | 848, | |
| Bore Size | 648, | Gear Options | Nongeared |
Product Description

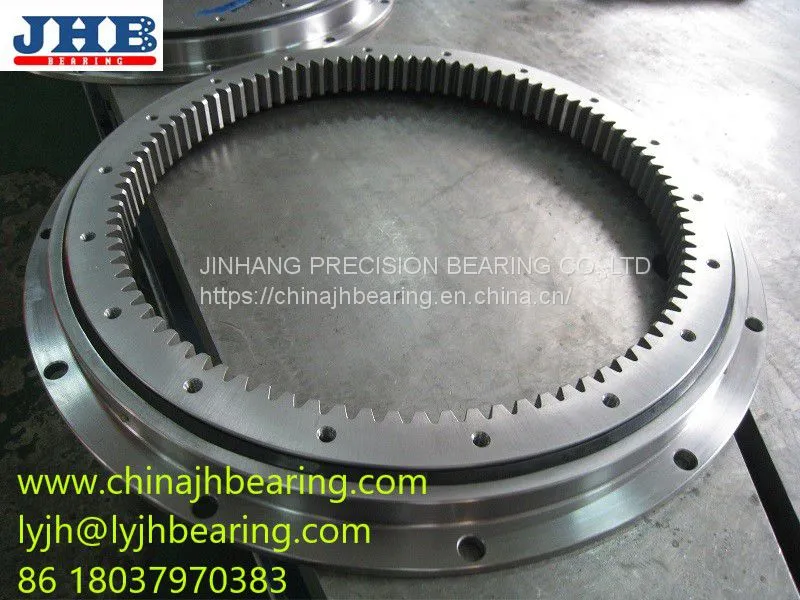

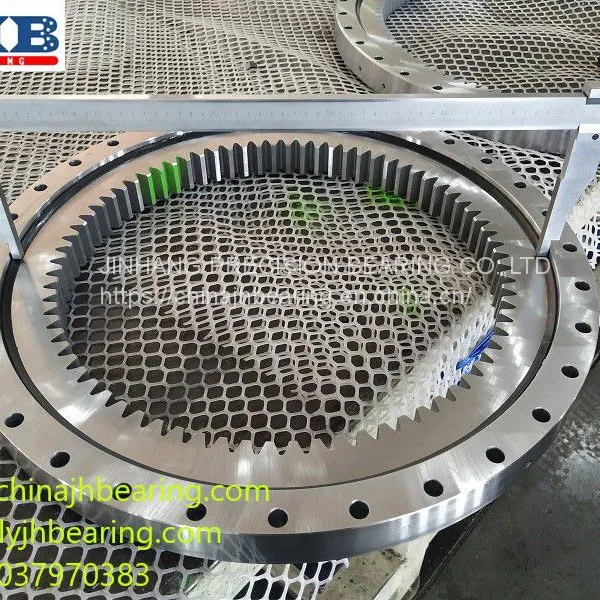

VLI 200744 N slewing bearing for conveyor booms machine 848x648x56mm
VLI 200744 N slewing bearing is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected. The outer diameter:848mm,Inner diameter:648mm,Height:56mm, It is the light series bearing structure with internal teeth.
Description | VLI 200744 N slewing ball bearing |
Dimension(ODXIDXH) | 848x648x56mm |
Outer diameter(OD) | 848 mm |
Inner diameter(ID) | 648 mm |
Width/Height/(H) | 56 mm |
Gear teeth d0 | 660MM |
Gear teeth m | 6 |
Gear teeth Z | 110 |
weight | 52kgs |
Material | 42CrMo,42CrMo ,50Mn |
Rolling | LYC ball |
Package | Inside package: plastic film + kraft paper + blue tape; Outside package: standard export free-fumigation wooden case. |
The delivery time | 20-30 days |
Service | Technology communicate with engineer, and if you need the assembly drawing,we can send to you |
