Offset Short-run Digital Inkjet Printer IN1800A-CR
Perfect solution for producing short-run orders of offset printing quality!
Technical Features
Utilizing advanced board control technology, it is equipped with 16 i3200-A1 printheads, producing 3.5pl ink droplets. Its industrial-grade design ensures printhead durability. A brand-new automated production solution, featuring a high-strength industrial design structure, enables unattended automated production, further enhancing productivity.
Industrial-grade heavy-duty frame enhances machine stability and long-term use;
High-precision X-axis linear motor, high-performance driver, 1µm metal grating ruler, and THK linear guide provide carriage operation accuracy and lifespan;
Y-axis servo motor paired with a high-precision RV reducer provides better material feeding accuracy;
Supports continuous single-sheet feeding, eliminating the scenario of feeding multiple sheets of material;
8-color scheme provides high-quality printing results;
Printhead base plate heating function provides a stable printhead working environment;
Automatic carriage lifting function is suitable for printing thicker materials;
Inverter with high-power suction motor allows for digital adjustment of suction power via the HMI, providing stable material feeding;
Self-developed ink supply system and micro-balance pressure control system ensure the stability and protection of the printing ink path;

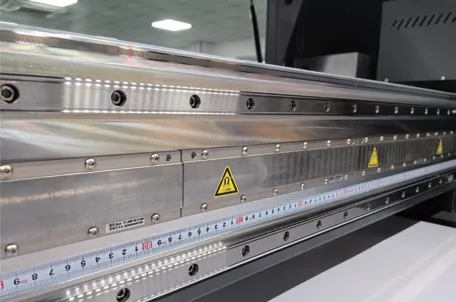

High-precision X-axis linear motor, high-performance driver, 1µm metal grating ruler, and THK linear guide provide carriage operation accuracy and lifespan

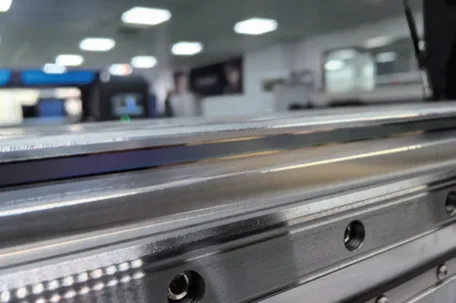

Thickened, high-stability imported magnetic grating ruler

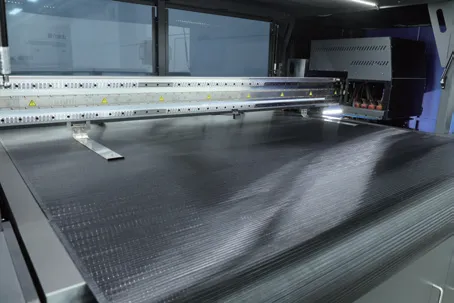

High-strength mesh belt with strong vacuum suction

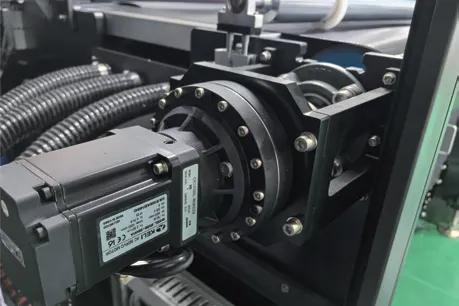

Y-axis servo motor paired with a high-precision RV reducer provides better material feeding accuracy

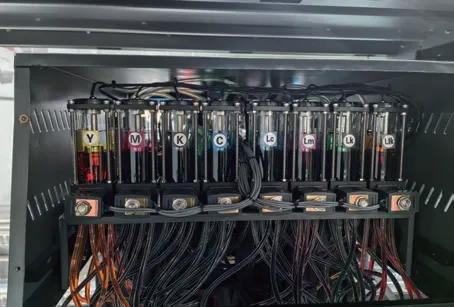

Negative Pressure Stable Ink Supply system with 8 colors

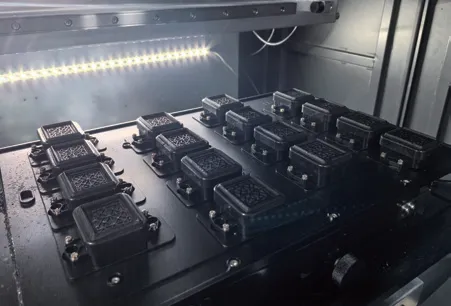

Moisturizing ink stack with auto cleaning function
Cardboard sorter feeds the boards in single sheets, eliminating the scenario of feeding multiple sheets of material

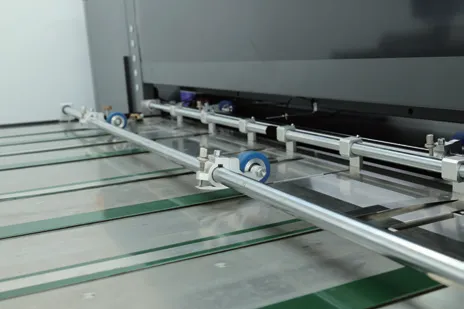

The front guide and left pull guide ensure same printing location on every sheet

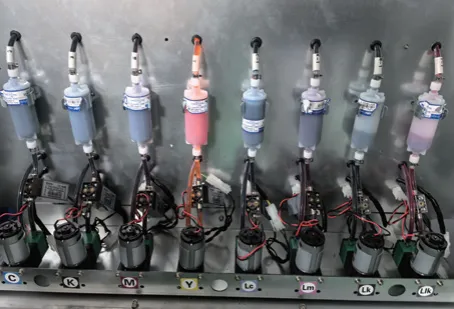

Self-developed ink supply system and micro-balance pressure control system ensure the stability and protection of the printing ink path
Technical Parameters
Model No. |
IN1800A-CR |
Print Head |
Epson i3200 A1, 3.5PL |
Color Configuration |
CMYK LcLm Orange Green |
Ink |
Dye Ink / Pigment Ink |
Printing Medias |
Coated paper, cardboard, corrugated board, Kraft Paper, etc. |
Min Media Size for Loading |
800 x 1200mm |
Max Media Size for Loading |
1300 x 1800mm |
Media Thickness |
1~5mm |
Printing Width |
1800mm |
Ink Supply |
Automatic Ink Supply System |
Rip Software |
Neostampa |
Positive System |
Digital Adjustable Positive Pressure System |
Printing Resolution |
720 x 1200dpi (8 colors) |
Printing Speed |
2 pass: 280m2/h; 4 pass: 150m2/h |
Data Interface |
USB 3.0 |
Operation System |
Win 10, 64 byte |
Power Supply for Printer |
AC220V, 16A, 50/60Hz |
Power Supply for Vacuum Suction |
AC220V, 10A, 50/60Hz |
Operation Environment |
Temperature: 25℃; Humidity: 40%~65% |
Machine Dimension |
4200 x 1900 x 1800mm (Printer); 2500 x 2300 x 1500mm (Feeder) |
Machine Structure |
Integrated industrial-grade heavy-duty frame |
X axis |
High-precision Linear Motor; Metal Raster Tape, THK Guide Rail |
Y axis |
Servo motor paired with a high-precision RV reducer |
Z axis |
Automatic Lifting Carriage |
Print Head Maintenance |
Automatic Cleaning and Maintenance; Independent ink stack moisturizing |
Ink Tank Capacity |
12L for each color; With Ink Level Alarms |
Other Functions |
Human-machine interface control system and alarm system, five-level digital air suction setting for the platform, automatic pause when ink level is low, PLC ink supply system, constant temperature heating for print head plate, and paper shortage pause function. |
Applications
