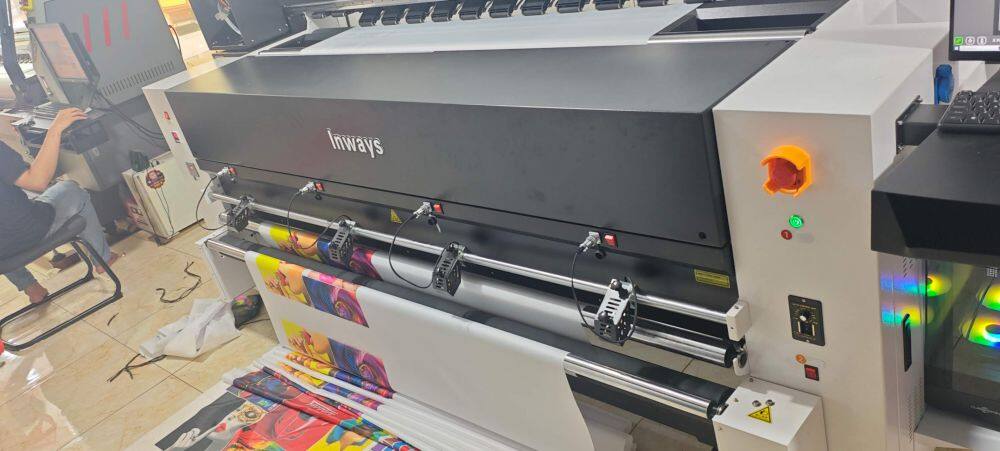

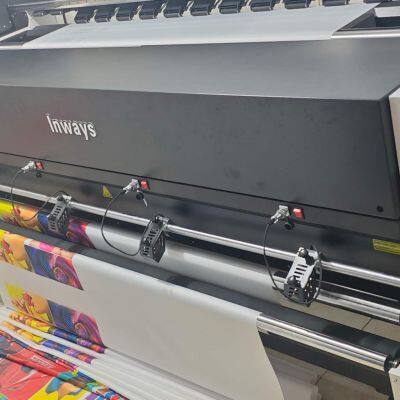

Inways Teardrop flag digital printer YJ2104-S

Overview

YJ2104-S adopts 4 Epson i3200 print heads, and is equipped with metal raster. Its printing speed is upto 130㎡/h. This printer has many simple and user-friendly operations: One -key automatic lifting of the support rod in the heater, one-key automatic lifting of the printing platform, automatic lifting of the ink stack, and ink shortage alarm and waste ink alarm device.

Technical Advantages

• Fabric supply system: feeding fabric by rubber roller clamping. no indentaion. no wrinkle,. no deviation;

• Tension system: double-end high-precision gear and rack transmission to keep fabric smooth, stable and accurate.

• Position system: High accurate magnetic raster. It is stain-resistant, long-life. free maintenance. high precision.

• Patent System 1: Automatic up & down system to collect waste ink. one button to control up & down to change fabric,

  then no dyed cloth any more. Meanwhile. itelligent negative splashing ink pumping system reduces waste ink flying.

• Patent Systerm 2: fabric guide roll with up & down systerm inside of colour curing device to control curing time accurately,

  the fabric will not be burnt when machine stops. The color curing is uniform. It is easy to load fabric. Also. curing chamber

  is sealed, no smoke leakage.

• Patent System 3: Fume extracting syslem, complelely smoke free processing inside, no any smell, first palent in Chinese

  market.

Technical Parameters

Model No.  Inways YJ2104-S

Print Head  Epson 3200 Industrial Print Head

Head No.   4pcs

Printing Width   2100mm

Material Width   2100mm

Ink Type       Dye sublimation ink

Ink Color      CMYK

Printing Resolution    360 x 1200dpi; 360 x 1800dpi; 720 x 1200dpi

Printing Mode    Unidirectional / Bidirectional

Data Transfer    Gigabyte Port

Printing Speed    8 heads

Production Mode: 130㎡/h

Quality Mode: 100㎡/h

High Quality Mode: 93㎡/h

Cleaning System    Negative Pressure Ink Purging

Rip Software    Maintop 6.1, Photo Print

Image format    Bitmap, TIFF, Quark Xpress, eps, PDF, etc.

Color Control    ICC color profiles

Power Supply     Single Phase AC220V ±10% 50Hz

Working Environment     Temperature: 20~28℃, Humidity 40%~70%

Machine Weight     890kg

Machine Dimension    3820 x 1110 x 1750mm

Applicable Materials   Chemical Fibre Fabrics

Applications
