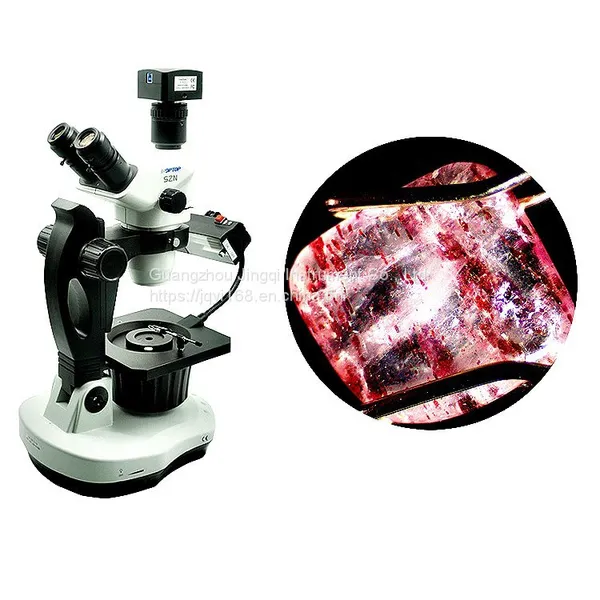

Product Name: Research Digital Gem Microscope
Product introduction:
Digital gemstone microscope NGI-Z5C for professional students adopts Grinoff optical imaging system and special lens body suitable for jewelry detection, which fully meets the needs of all kinds of diamonds, crystals, gems and other jewelry appreciation.
Adoption of 1:6.7 continuous zoom optical system, 0.67x-4.5x continuous zoom objective lens, magnification Settings to meet the needs of jewelry external observation and internal fine identification, excellent optical system provides high definition, high contrast, high resolution images, and has a large depth of field, so that the final imaging has a strong 3D effect.
Multi-functional base bracket design, professional gem microscope bracket, with chassis rotation, observation Angle adjustment, lens lifting and other functions, can be adjusted according to different use habits and different samples.
A variety of lighting and imaging methods, fluorescent lamp and halogen lamp lighting, can achieve parallel light, oblique light, transmission light and other lighting methods; It can realize the observation of bright field, dark field and polarized light, and can be used to analyze the various components and characteristics of gemstones.
Technical parameters:
Eeyepiece High Point Large Field of View Adjustable Eeyepiece WF10x /22mm(Micrometer can be mounted)
Observation head Z5C: Three-eye observation head,45° tilt, continuous zoom objective lens 0.67X to 4.5X, working distance 100mm. Pupil distance adjustment range 54mm-76mm, with built-in interlocking machinery, fixed eyepiece cylinder
Rough adjustment mechanism of the frame group adjusting stroke is 110mm, and the elbow can rotate 0 ~ 45°; Provide dark field and bright field two different lighting methods; The light bar hole is adjustable from φ44mm-φ3mm variable light bar, and the inside door is 110V ~ 220V wide voltage system
Upper lighting: 7W daylight fluorescent lamp
1W single high power LED, white, brightness adjustable
Lower illumination: 6V 30W halogen lamp, Philips 5761, brightness adjustable
Gem clip: steel clip, flat clip (choose one of two)
Polarizing device polarizer/polarizer
Optional configuration:
High point and large field of view adjustable eyepiece WF15x /16mm(micrometer can be mounted)
High point and large field of view adjustable eyepiece WF20x /12mm(micrometer can be mounted)
Auxiliary objective 0.3x / 287mm
0.4 X / 217 mm
0.5 X / 177 mm
0.75 X / 117 mm
1.5 X / 47 mm
2X/26mm
Camera device 0.35x / 0.5x / 1.0x C type camera connector
