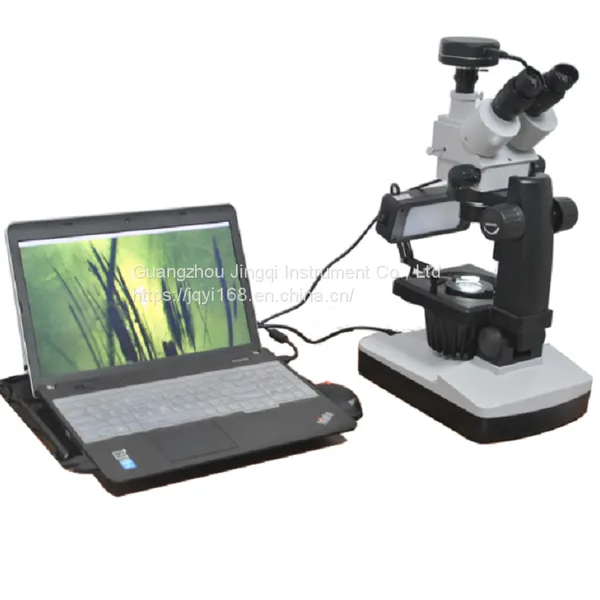

Product name: professional spiral arm digital gem microscope
Product features:
The connection of the lamp tube is easier to adjust the lighting Angle. The focusing stroke is 125mm, which can observe the different sizes of jade stones and samples.
Flat mouth gemstone clamp moderate rigidity is firm and convenient to hold, reduce the light block of the gem waist, you can observe the gemstone in all aspects;
There are mounting holes on both sides of the table, which can adjust the height and Angle of the observation point, so that the operation is more convenient and comfortable;
The bright and dark field illuminator provides two different lighting methods. The light hole is 41mm ~ 2mm variable light bar, which can adjust the lighting beam, and the light and dark field lighting conversion is more convenient.
The gem lamp adopts 8W daylight fluorescent lamp (color temperature: 6000K) to meet the requirements of diamond lighting;
Through the microscope camera, connected to the computer, the computer can be timely observation, photography, video recording, storage and other functions.
Technical parameters:
Observation head: three-eye observation cylinder (45 degrees incline)
Optical system: internal oblique optical path doubling system, body Angle of view 0-45 degrees oblique observation
Variation ratio: 1:6.5(0.7× ~ 4.5×)
Eyepiece: WF10×(? 20mm)
Objectives: 0.7× ~ 4.5×
Working distance: 95mm
Field of view: O33mm ~ O51mm
Binocular pupil distance: 55mm ~ 75mm
Light source: 110V ~ 220V, 12V/30W halogen lamp
Optional: Microscope CCD camera
