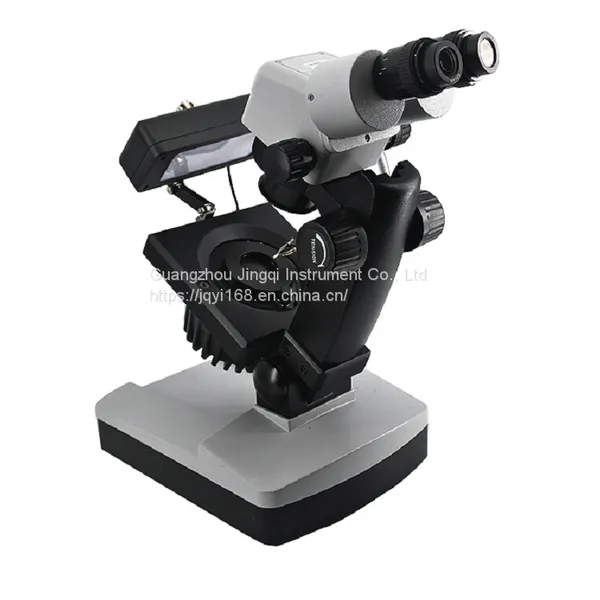

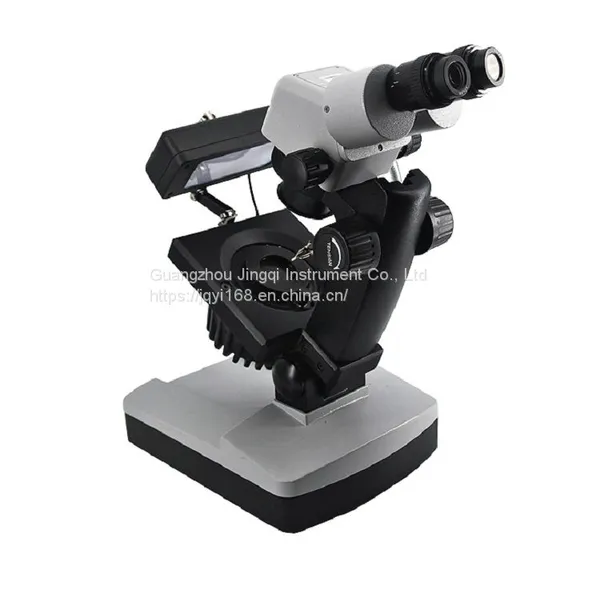

Product Name: Professional Gem Microscope (Binocular)
Product model: NGI-Z4
Product features:
* The connection of the lamp tube is easier to adjust the lighting Angle. The focusing stroke is 125mm, which can observe the different sizes of jade stones and samples.
* Flat mouth gemstone clamp has moderate rigidity and is firm and convenient to hold, which reduces the light block at the waist of the gemstone and allows all-round observation of the gemstone;
* There are mounting holes on both sides of the table, which can adjust the height and Angle of the observation point, so that the operation is more convenient and comfortable;
* Bright field illuminator and dark field illuminator provide two different lighting methods, light hole 41mm ~ 2mm variable light bar, to adjust the lighting beam, light field lighting conversion is more convenient;
* The gem lamp adopts 8W daylight fluorescent lamp (color temperature: 6000K) to meet the requirements of diamond lighting;
Technical parameters:
Observation head: binocular observation cylinder with MZL-Z4 binocular lens (45 degrees tilt)
Optical system: internal oblique optical path doubling system, body Angle of view 13-45 degrees oblique observation
Variation ratio: 1:6.5(0.7× ~ 4.5×)
Eyepiece: WF10 x (ø 20 mm)
Objective: 0.7× ~ 4.5×
Working distance: 95mm
Field of view: O 33mm ~ O 51mm
Binocular pupil distance: 55mm ~ 75mm
Light source: 110V ~ 220V, optional MZL halogen lamp or LED lamp, and the brightness of LED lamp can be adjusted continuously from 0 to 100%, four lighting methods, equipped with MZL fiber cold light source, fully meet various lighting needs
Specific specifications: length: 30 cm, width: 23 cm, height: 52 cm
Weight: 8000g silver grey integrated design, simple and generous
