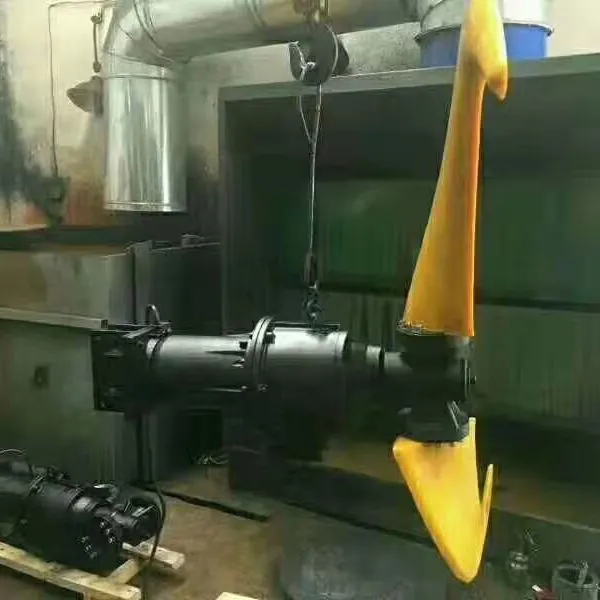

Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment

Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment thumbnail-1
Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment thumbnail-2
Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment thumbnail-3
Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment thumbnail-4
Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment photo-1
Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment photo-2
Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment photo-3
Submersible Low Speed Thruster ，submersible Mixer，submersible Agitator for Water Treatment photo-4
US$ 2125 - 2400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YIJU
Place of Origin:
China
Model Number:
QTD1.5/4-1100/2-85/P
Contact Supplier Request Quote Chat Now
Shanghai Yiju Fluid Equipment Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YIJU
Place of Origin China
Model Number QTD1.5/4-1100/2-85/P

Product parameters


Mixer product model: QDT submersible mixer


Motor power: 1.5kw-7.5kw


Impeller speed: 36 ~ 135 R / min


Diameter: 1000 ~ 2500mm


Maximum angle: - 60 ° ~ + 60 °


Water thrust: 696n ~ 4275n


Pump body material: stainless steel


Installation mode: customized


Basic introduction of QDT submersible mixer waste water low speed plug flow device fertilizer manure Tank Mixer

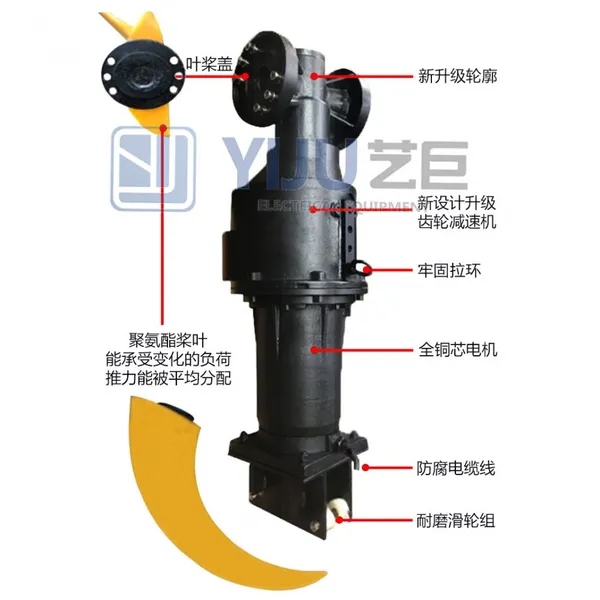

Model QDT low-speed flow propeller is extensively used for the flow propelling in the oxidizing ditches in the technological process of the water treatment, agitation in various types of bio-chemical tanks and also used in the mixing and flow propelling for freezing prevention in the rivers, landscape water cycling and so on. The low-speed flow propeller consists of the submersible motor, speed-reducing device, vanes, installation system, etc. The roduct is characterized by low power (1.5~7.5KW), low rotational speed(36~135rpm), large diameter of the

vanes(1000~2500mm), low-speed rotation, production of large-volume flow field and wide scope of service. The swept-back, banana-shaped vanes have the self-cleaning function, being shaped with the use of PU or aluminum alloy through precision casting and having such advantages as light weight, high strength, good resistance against corrosion and so on. Its excellent frictional property can ensure the production of the good damping effect with relation to liquid under the moving state of low rotational speed so as to create the gentle water flow. The series of

products have also. the mixing function apart from the flow propelling and creation of water flow as shown in the drawing.


Conditionsof Usage

The highest temperature of the media shall not exceed 40℃ ;


The density of the media shall not exceed 1150Kg/m 3 ;


The scope of the PH value of the media: 5~9;


The depth of submersion shall not exceed 10m.


Scope of application

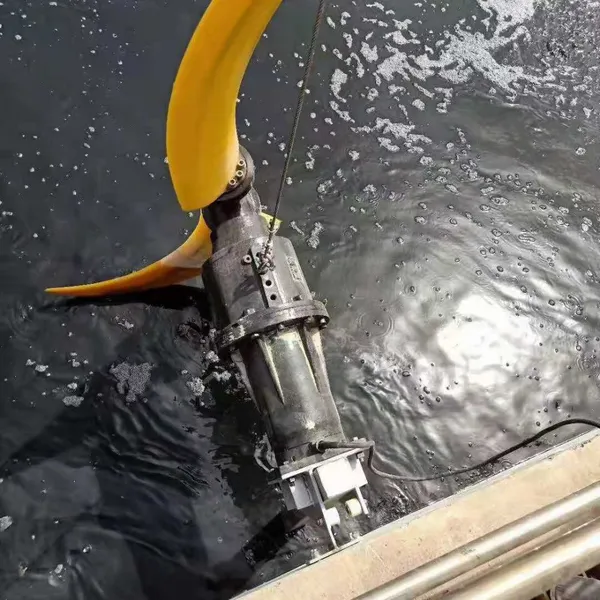

The submersible mixers are mainly used for the purposes of mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment and can also be used as the maintenance equipment for the  landscape water environment; through agitation, they can achieve the function of creating water flow, improving the quality of the water body, increasing the oxygen content in water and effectively preventing the sedimentation of the suspended substances.


Flow field diagram of submersible mixer


The velocity field is the boundary velocity v = 0.1 M / s in clear water

Model and parameter table of QDT low speed submersible thruster


Model Motor power(kW) Rated current(A) Impeller speed(r/min) Impeller diameter(mm) thrust(N) weight(kg)
QDT1.5/4-1100/2-85/P 1. 5 4  85  1000  1780  170
QDT3/4-1100/2-135/P 3  6.8  135  1100  2410  170
QDT1.5/4-1400/2-36/P 1.5  4  36  1400  696  180
QDT2.2/4-1400/2-42/P 2.2  4.9  42  1400  854  180
QDT2.2/4-1600/2-36/P 2.2  4.9  36  1600  1058  190
QDT3/4-1600/2-52/P 3  6.8  52  1600  1386  190
QDT1.5/4-1800/2-42/P 1.5  4  42  1800  1480  198
QDT3/4-1800/2-52/P 3  6.8  52  1800  1946  198
QDT4/4-1800/2-63/P 4  9  63  1800  2750  198
QDT2.2/4-2000/2-36/P 2.2  4.9  36  2000  1459  200
QDT4/4-2000/2-52/P 4  9  52  2000  1960  200
QDT4/4-2200/2-52/P 4  9  52  2200  1986  220
QDT5/4-2200/2-63/P 5  11  63  2200  2380  230
QDT3/4-2500/2-36/P 3  6.8  36  2500  2380  230
QDT4/4-2500/2-42/P 4  9  42  2500  2350  250
QDT5/4-2500/2-52/P 5  11  52  2500  3090  250
QDT7.5/4-2500/2-63/P 7.5  15  63  2500  4275  280


Installation method and size of submersible mixer


Submersible mixer can be installed in a variety of ways. Here are four most common ways


For selection, please refer to the table below for size. Our company can also make special design according to the requirements of users.


QJB submersible mixer waste water low speed plug flow device fertilizer manure Tank Mixer product installation dimension table


Model Installation guide rod diameter Diameter of deflector Distance between guide rod and wall Distance from wall to front end of equipment Installation level Distance from equipment to pool bottom Installation system
QJB0.85/8 Φ40 360  330  630  500  110  I
QJB1.5/6 Φ40 360  330  630  500  110  I
QJB2.2/8 Φ70 460  320  970  800  150  II
QJB4/6 Φ70 460  320  970  800  150  II
QJB1.5/8 Φ70 530  320  960  500  200  II
QJB2.5/8 Φ70 530  320  960  500  200  II
QJB3/8 Φ70 530  320  1010  800  200  II
QJB4/6 Φ70 530  320  1010  800  300  II
QJB4/12 Φ70 820  335  1150  1100  300  III-1, III-2
QJB5/12 Φ70 620  335  1150  1100  300  III-1 , lIl-2
QJB7.5/12 Φ70 820  335  1280  1500  300  III-1, III-2
QJB10/12 Φ70 820  335  1280  1500  300  III-1, III-2
QDT1.5/4-1000 Φ40 1000  200  1240  1000  185  III-1 , III-2, IV
QDT3/4-1100 Φ50 1100  200  1240  1000  185  III-1, III-2, IV
QDT1.5/4-1400 Φ40 1400  200  1212  750  85  III-1, III-2, IV
QDT2.2/4-1400 Φ40 1400  200  1212  750  85  III-1, III-2, IV
QDT2.2/4-1600 Φ40 1600  200  1212  750  85  III-1, III-2, IV
QDT3/4-1600 Φ50 1600  200  1250  800  85  III-1 , III-2, IV
QDT2.2/4-1800 Φ40 1800  200  1212  800  85  III-1, III-2, IV
QDT3/4-1800 Φ50 1800  200  1250  800  85  III-1 , lll-2, IV
QDT4/4-1800 Φ50 1800  200  1250  900  85  III-1, III-2, IV
QDT2.2/4-2000 Φ40 2000  200  1340  750  85  III-1 , lll-2, IV
QDT4/4-2000 Φ50 2000  200  1370  800  85  III-1 , lll-2, IV
QDT4/4-2200 Φ50 2200  200  1370  800  85  III-1, III-2, IV
QDT5/4-2200 Φ70 2200  200  1370  800  85  III-1, III-2, IV
QDT3/4-2500 Φ50 2500  200  1340  750  85  III-1, III-2, IV
QDT4/4-2500 Φ50 2500  200  1370  800  85  III-1 , III-2, IV
QDT5/4-2500 Φ70 2500  200  1370  800  85  III-1, III-2, IV
QDT7.5/4-2500 Φ70 2500  200  1430  850  85  III-1 , lll-2, IV
