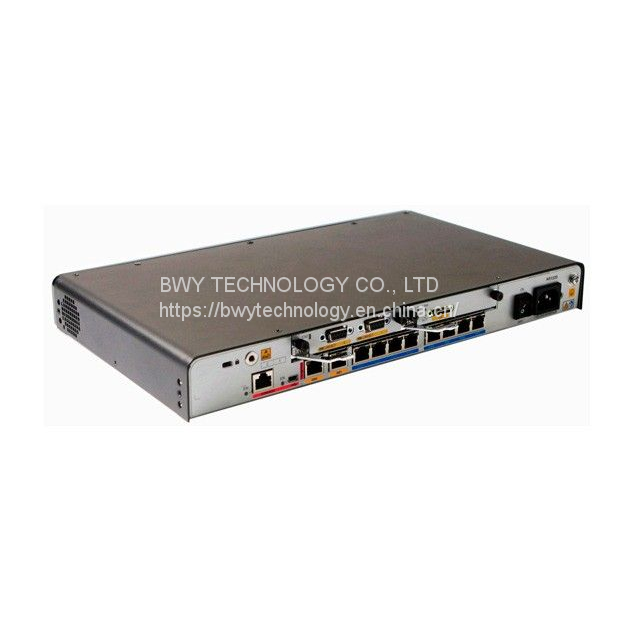

Huawei AR1200 Series Enterprise Routers AR1220EV 02350DQK 2GE Combo, 8GE LAN, 2 USB,2 SIC

WAN speed with services***

400 Mbit/s

Firewall Performance (large packet)

1,800 Mbit/s

Device Switching Capacity

8 Gbit/s

Slot Switching Bandwidth

SIC & WSIC slots: 2 Gbit/s

Number of Recommended Users

100

Fixed WAN Ports

2 x GE Combo

Fixed LAN Ports

8 x GE (can be configured as WAN interfaces)

SIC Slots

2

WSIC Slots (default/max)

0/1

DSP Slots

32 channels supported by default

Wi-Fi

-

USB 2.0 Ports

2

Mini-USB Ports

1

Serial Auxiliary/Console Port

1

Memory

1 GB

Flash

512 MB

Max. Power

60W

PoE Power

External 100W

AC Power

100V to 240V

Frequency

50 Hz/60 Hz

DC power

-

Dimensions (H x W x D)

44.5 mm x 390 mm x 220 mm

Weight

2.9kg (without interface cards)

Ambient Temperature

0°C to 45°C**

Relative Humidity

5% to 95% (non-condensing)

Basic Features

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features)

WLAN (AP)

AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features)

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

3G

3G Interface card (WCDMA)

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing

Management and maintenance

Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI
