Home > Products > Cisco SFP Modules > Original New Cisco SFP Module SFP-10G-LR 10GBASE-LR SFP Plus Module Fiber Optic Transceiver

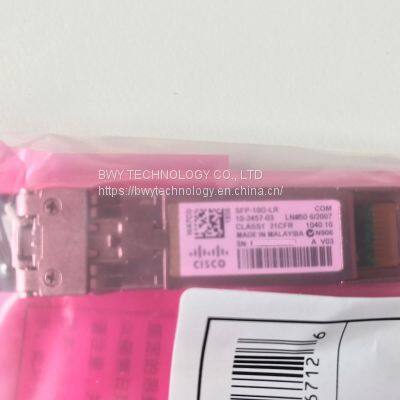

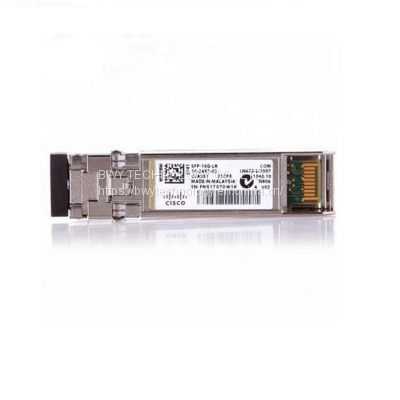

Original New Cisco SFP Module SFP-10G-LR 10GBASE-LR SFP Plus Module Fiber Optic Transceiver
- 1000 Piece / Pieces per Month
- GUANGZHOU
- T/T PayPal Other Cash
- 1 days
- SFP-10G-SR Cisco Original New Fiber Optic Module 10GBASE-SR SFP Module
- GLC-TE Cisco SFP GLC Module 1000BASE-T SFP Transceiver Module for Category 5 Copper Wire
- Cisco GLC-SX-MMD 1000BASE-SX SFP Transceiver Module, MMF, 850nm, DOM
- Cisco SFP Module SFP-10G-ZR 10GBASE-ZR SFP10G Module for SMF
- Cisco SFP Module SFP-10G-LR-S 10GBASE-LR SFP GLC Module, Enterprise-Class
- SFP-10G-ER Cisco 10GBASE-ER SFP+ Module for SMF SFP+ Optical 1310NM Transceivers
Product Details
Brand Name: | Cisco | Place of Origin: | China | Model Number: | SFP-10G-LR |
Product Description
Cisco SFP-10G-LR module is the single-mode 10G fiber optical transceiver, the Cisco 10G Base-LR Module supports a link length of 10 kilometers on standard single-mode fiber (SMF, G.652) and SFP-10G-LR SFP Plus optical transceiver from Solid-Optics offers up to 10Km link length on standard single-mode fiber.
The Features☆ Industry’s smallest 10G form factor for greatest density per chassis
☆ Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch
☆ Supports “pay-as-you-populate” model for investment protection and ease of technology migration
☆ Digital optical monitoring capability for strong diagnostic capabilities
☆ Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
☆ Cisco quality identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
SFP-10G-LR Specifications | |
Wavelength (nm) | 1310 |
Cable Type | SMF |
Core Size (Microns) | G.652 |
Modal Bandwidth (MHz*km) | - |
Cable Distance | 10KM |
Transmit and Receive Wavelength (nm) | 1260 to 1355 |
Bail Latch Color | Blue |
Power Consumption (W)/td> | 1 |
Operating Temperature Range | - |
Transmit Power (dBm) | Maximum: 0.5 Minimum: -8.2 |
Receive Power (dBm) | Maximum: -0.5 Minimum: -14.4 |
