Mechanical Springs Tensile Compression Endurance Tester
Applications Testing:
- 1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
- 2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
- 3. Deformation under defined load: Test deformation under defined load of tested sample
- 4. Load under defined deformation: Test load under defined deformation of tested sample

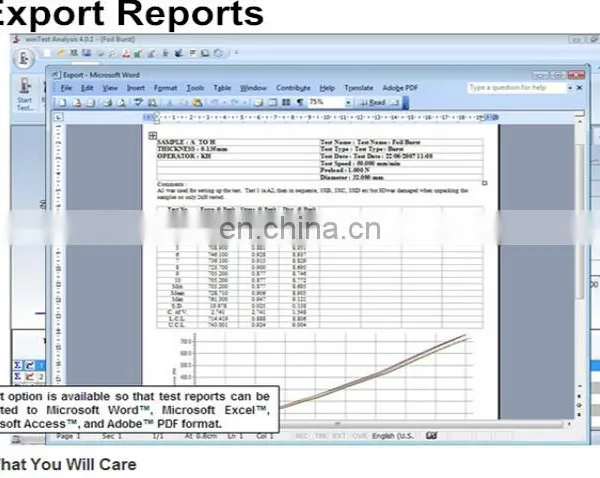

- 5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Test standards:
Metals
- ASTM E8/E8M-13: "Standard Test Methods for Tension Testing of Metallic Materials" (2013)
- ISO 6892-1: "Metallic materials. Tensile testing. Method of test at ambient temperature" (2009)
- ISO 6892-2: "Metallic materials. Tensile testing. Method of test at elevated temperature" (2011)
- JIS Z2241 Method of tensile test for metallic materials
Composites
- ASTM D 3039/D 3039M: "Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials"
Flexible materials
- ASTM D638 Standard Test Method for Tensile Properties of Plastics
- ASTM D828 Standard test method for tensile properties of paper and paperboard using constant-rate-of-elongation apparatus
- ASTM D882 Standard test method for tensile properties of thin plastic sheeting
- ISO 37 rubber, vulcanized or thermoplastic—determination of tensile stress–strain properties
Technical parameters: Computer servo universal tensile compression strength testing machine tester
Item |
Description |
Max. Force |
2000 kg (20KN) |
Load cell |
Germany brand load cell for high accuracy |
Control system |
PC with windows 7 system |
Motor |
Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading |
kgf, Ibf, N, KN, T etc |
Stoke |
1200mm including fixture |
Load cell Resolution |
1/250,000 |
Load Precision |
≤0.5% |
Test speed |
0.1~500mm/min (adjustable) |
Test width |
≤400mm |
Software |
TM 2101 |

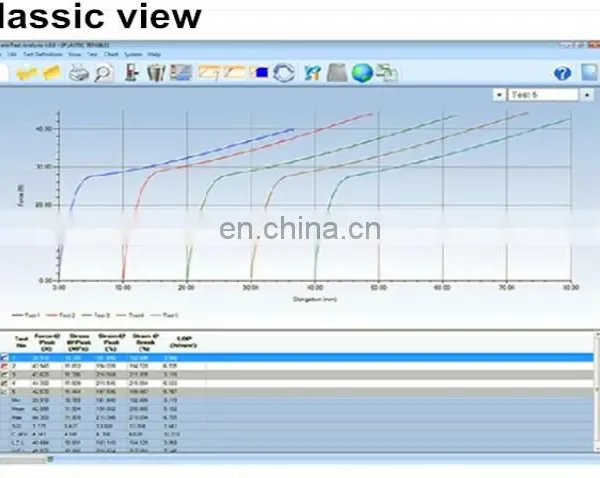

Curves display |
Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display |
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |

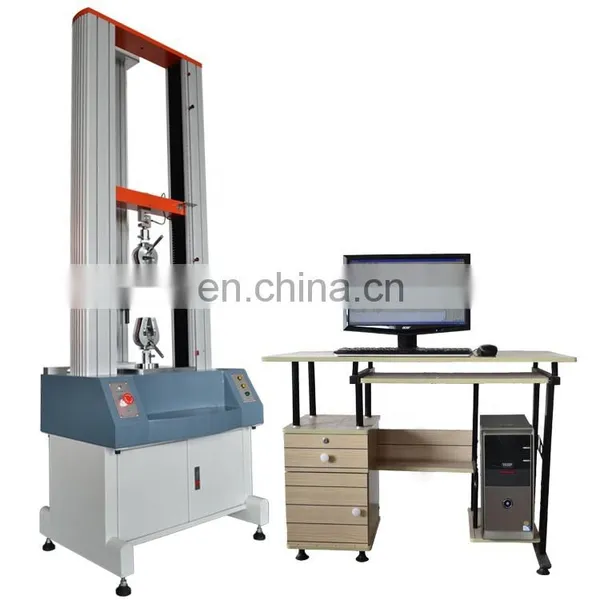

Real imagines:Computer servo universal tensile compression strength testing machine tester
We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
- 1.Are your company a trading one or a factory
Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
- 2.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
- 3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
- 4.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
- 5.What is your warranty ?
12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
