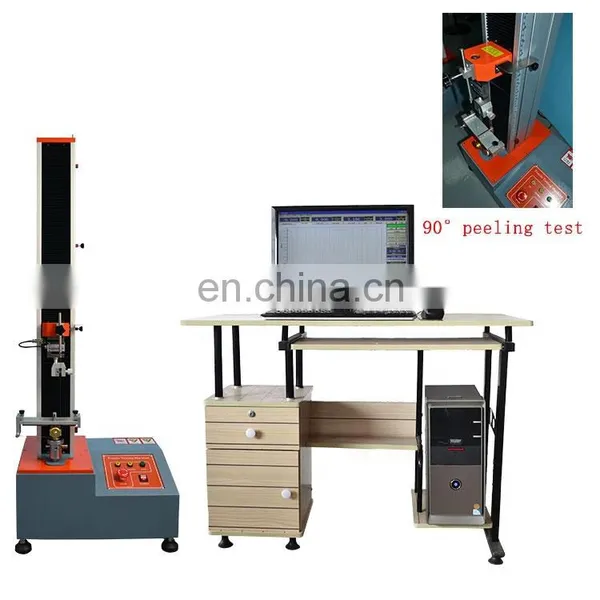

ZONHOW Universal Material Tensile Strength Testing Machine Peeling Test Machine

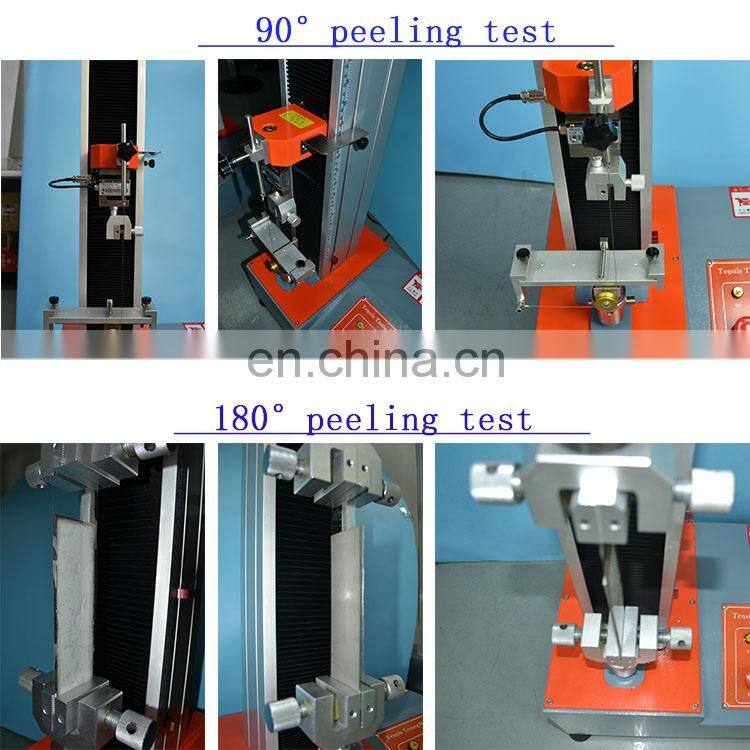

ZONHOW 90 degree peeling strength testing machine

Introduction

1. Digital type main adhesive tape peel strength tester by dongguan huakai detection equipment supply science and technology, the digital type main tape stripping force testing machine this machine is specialized in all kinds of tape stripping with 90 ° and 180 degree test and tensile.

1. 90 degree peeling strength testing machine can do all kinds of paper, film, rubber, plastic, fabric, waterproof material, non-woven fabrics, metal wire, metal foil,. Metal mechanics, and the longitudinal and transverse tensile, tensile and tear properties and mechanical properties test, composite film, pressure sensitive adhesive materials such as stripping, splitting, shear strength test, elongation at break test, heat sealing tensile, tear, strength test, etc.

Additional application

• 1.Tested sample: plastic films, laminated materials, adhesive tapes, adhesive bandage (plaster), release paper, plastic films, leather, rubber & plastic, paper, fiber, etc.
• 2.Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
• 3.Deformation under defined load: Test deformation under defined load of tested sample
• 4.Load under defined deformation: Test load under defined deformation of tested sample
• 5.Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

Conform to the standards

• GB/T2790 (adhesive 180 ° peel strength test),
• GB/T2791 (adhesive T peel strength test),
• GB2792 (pressure sensitive adhesive tapes 180 ° peel strength measurement),
• GB4850 (low-speed uncoil strength test),
• GB7754 (shear strength test),
• GB8808 (composite film peel strength test),
• ZBY28004 (determination of heat sealing strength),
• GB13022 (film tensile test),
• GB7753 (pressure sensitive adhesive tape tensile test)

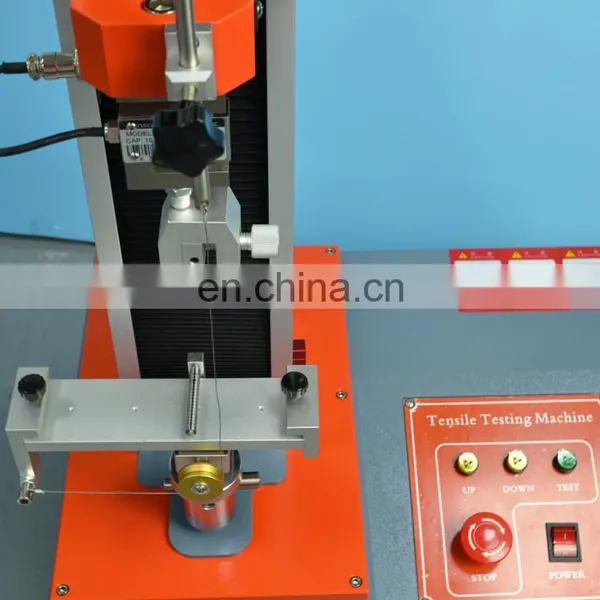

Details show

Technical parameters

Test steps- ZONHOW 90 degree peeling strength testing machine

• 1. The tape stripping strength tester shall wipe the test board with the cleaning agent dipped in the wiping materials, and then wipe the test board with a clean degreased gauze. The test board shall be cleaned more than three times, until the working face of the board is cleaned through visual inspection.

• 2. Measure the width of the tape with a quantity of no less than 0.05mm.

• 3. Before making the sample, tear off the outer adhesive tape of 3-5 layers, and then take the adhesive tape of more than 200mm (the adhesive tape adhesive surface cannot contact hands or other materials).And glue the adhesive tape to the test board after cleaning.A polyester film of about 200mm long and 40mm wide or other material is placed under the other end of the test plate, and then the pressure roller is used to roll back and forth on the test sample for three times at a speed of about 300mm/min under self-weight (no air bubbles are allowed at the bonding point between the test sample and the test plate).

• 4. The sample should be stored in the test environment for 20 to 40 minutes after preparation.

• 5. The tape strip tester folded the free end of the sample 180 times and removed the bonding face 25mm from the test plate.The free end of the sample and the test plate are clamped on the upper and lower clamps respectively.The stripping surface should be consistent with the force line of the test machine.The machine was dissected continuously at a rate of 300mm/min plus or minus 10mm/min, and the stripping curve was plotted by the automatic recorder.

Features——ZONHOW 90 degree peeling strength testing machine

How to choose a suitable tensile tester ?

 Regularly,we should focus on the force range, test speed, and test materials.

       DZ-101                  DZ-102W                   DZ-103A                  DZ-106                   DZ-101S

      DZ-102                DZ-102WT                DZ-103                   DZ-104                      DZ-110
