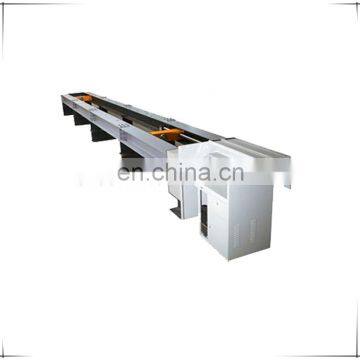

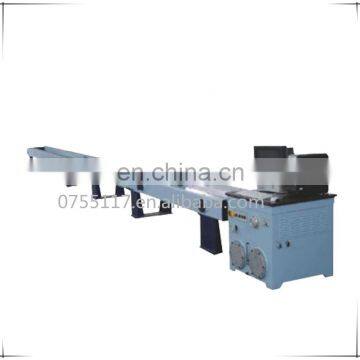

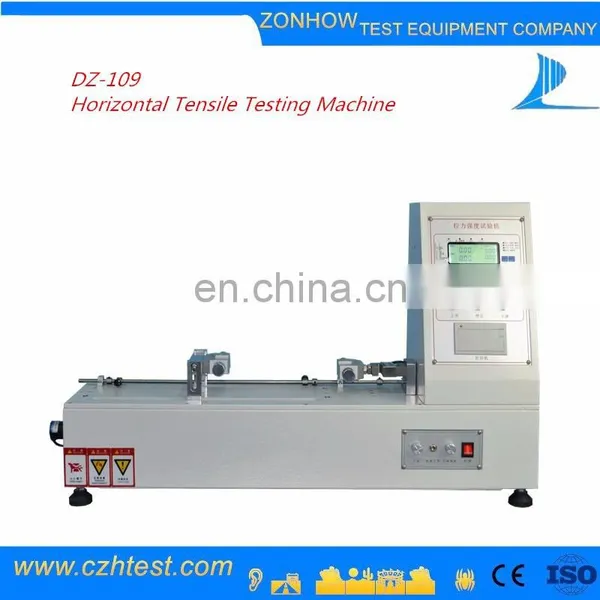

Horizontal test bed, horizontal wire rope tensile test machine
Product name——Horizontal test bed, horizontal wire rope tensile test machine
- Universal Hydraulic Horizontal tensile testing machine host body with horizontal steel frame structure:Hydraulic servo cylinder mounted on the cylinder base, through universal spherical piston end and high-precision load cell and the moving beam connected to the moving beam and by double pull lever and pull the front cartridge loading mechanism consisting of stretched seat.
- Front and rear movable chuck after stretching along the right and left frame rail seat to move it reaches the set position, the collect holder with a pin fixed to the left and right frame, enabling the front seat chuck adjust the distance between the set to meet the requirements of different sample length of the sample.
- The system loads the fuel tank under the effect of hydraulic power, pulling the piston out before stretching chuck indirect seat, enabling the loading of samples in; hydraulic loading attached to the side cylinder displacement measuring means for measuring a stroke of the cylinder.
Features——Horizontal test bed, horizontal wire rope tensile test machine
1.The whole frame is made of welded steel, stable machine structure stiffness.
2.Part of the unique design of the sample holder, for lifting belts and sheet intensify.
3.The device itself can be calibrated force values, without reprovision reaction frame and other auxiliary tools,calibration simple and convenient.
4. With an active protective device, to ensure the safety of the trial.

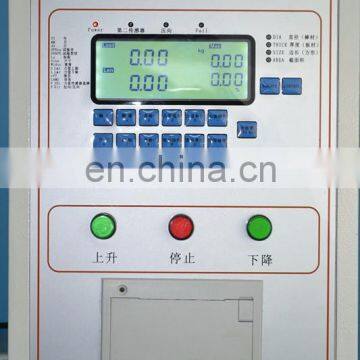

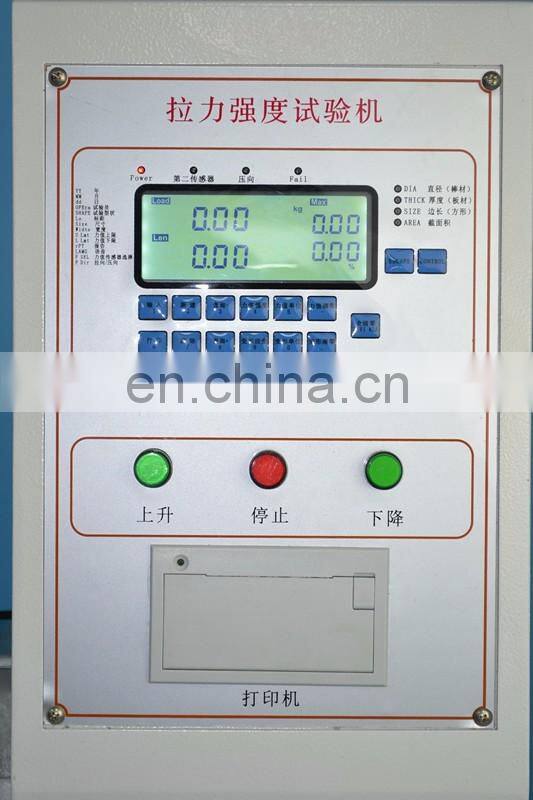

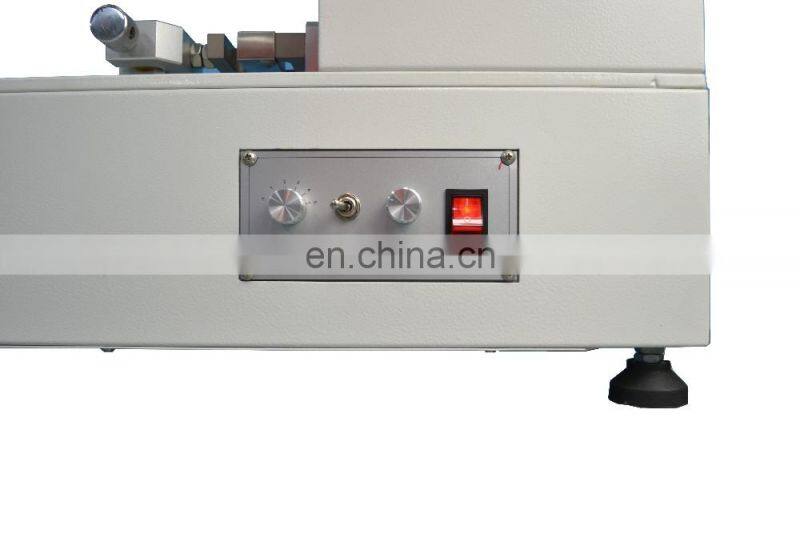

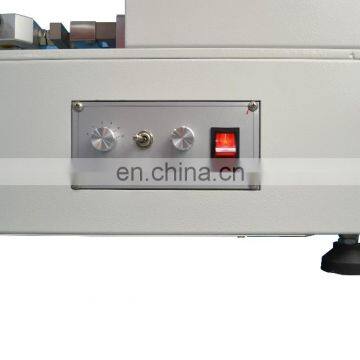

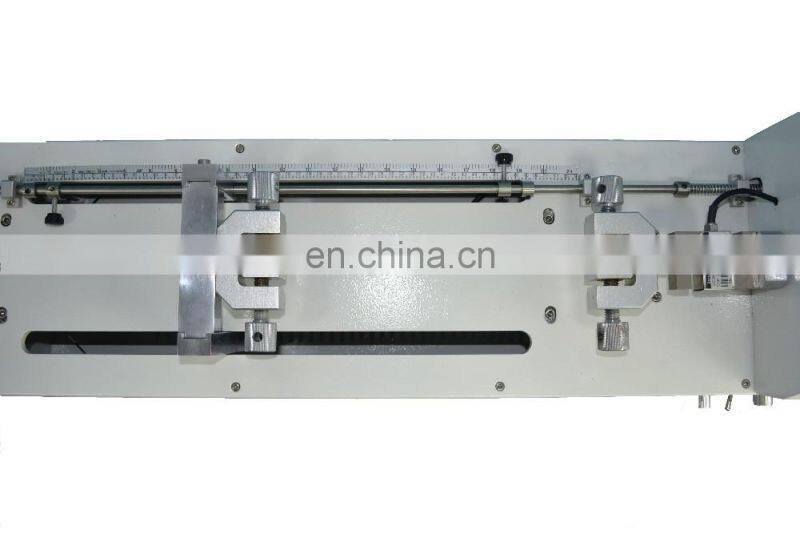

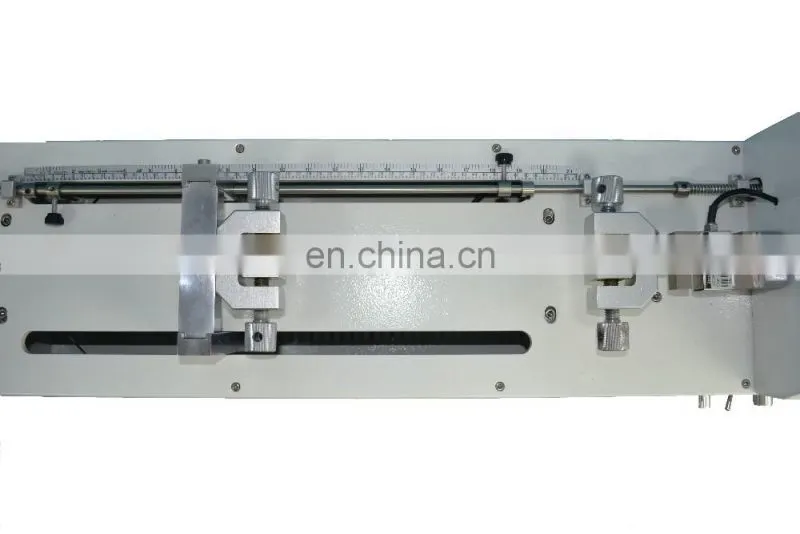

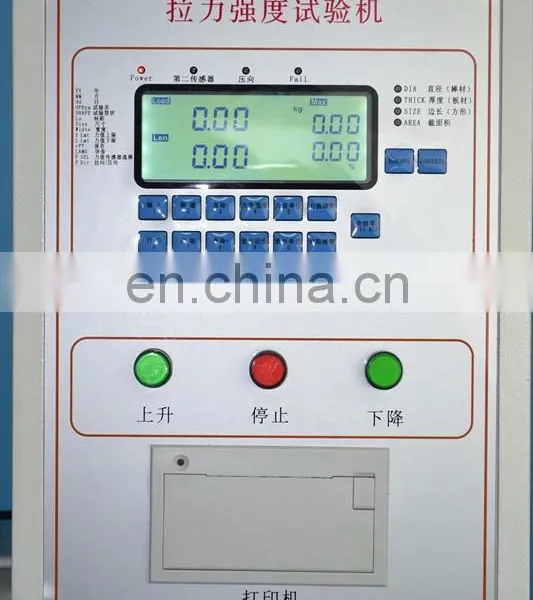

Details show——Horizontal test bed, horizontal wire rope tensile test machine
Servo-hydraulic systems——Horizontal test bed, horizontal wire rope tensile test machine
This section is the power source load testing machine, mainly by the hydraulic pump unit, servo valves, solenoid valves, pressure regulating valves and hydraulic tank, hydraulic accessories and other components. Computer controlled servo valve, drive servo cylinder, according to the procedure set complete test load, hold, unload.
Main Specifications——Horizontal test bed, horizontal wire rope tensile test machine
1.The maximum axial tensile test force and precision: 2000KN and± 1%
2.The test machine adjustment range effective tension space:500mm-5000mm (500mm step-adjustment of a file)
3.Load cylinder stroke:1500mm
4.Loading speed: stretching piston speed:5mm / min-100 mm / min
5.Test control:constant test force control / constant displacement control;
6. Cylinder displacement measuring range:0-1500mm
7.The effective width:800mm
8.Modular tensile fixture: sling Finished: pin type; sheets:wound, width: not more than 300mm
9.The test machine at a size of about (L x W x H mm):13000x1500x700mm
10.The protection function:
a) cylinder limit protection;
b) hydraulic system overload overflow protection;
c) test force overload protection;
d) over-current, over-voltage protection;
e) when the sample breaking safety shield protection;
f) test end automatic shutdown protection;
We have professional packing workers to pack your products!
1.Packing:
Out packing:Standard export wooden case; Inner packing:With careful stretch film+ hard cardboard.
2.Shipping:
we usually send the goods to you by air, we can also delivery the equipment by sea or by express. It depends on your choice.
Professional, Absorbed Manufacturer
Wide Range of Test Equipments
ZONHOW has been providing companies with materials testing equipment for over 10 years,addressing the
many quality analysis needs of products.It will perform tests in conduct tensile, compression,bending, shearing,bonding strength, peeling, tearing and other tests. It is suitable for rubber, plastic,leather, metal, nylon line,
fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.
There are many built-in test procedures to meet most requirement and standards. It is our objective at ZONHOW to provide our customers the best ownership experience by delivering the highest quality products and accessories that offer accurate and reliable test results and time savings.
