Product Details
Brand Name: | ZONHOW | Place of Origin: | Guangdong, China | Model Number: | DZ-101, DZ-101 |
Product Description

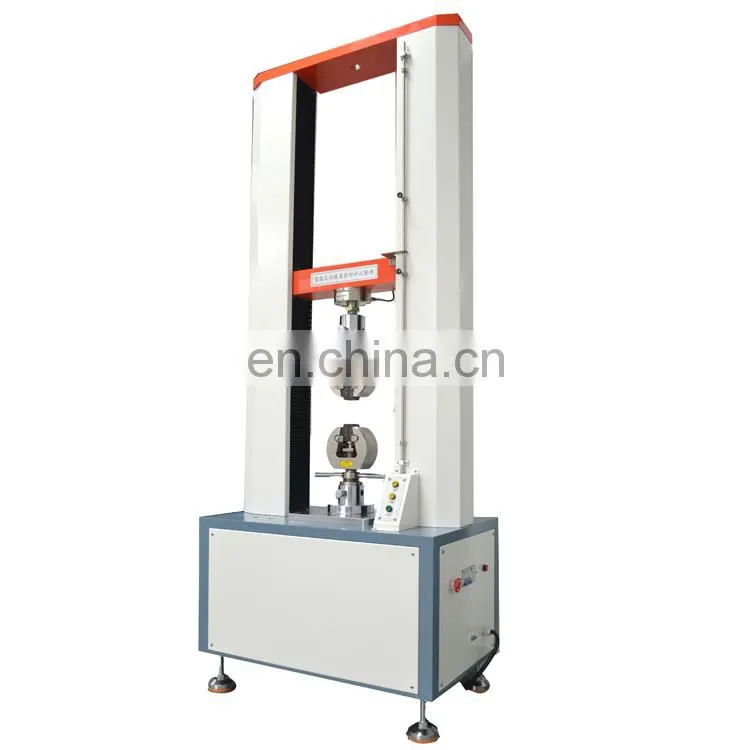

5 ton Universal Testing Machine for wood tensile compression shear bending test CMT-50
Product Application-5 ton Universal Testing Machine for wood tensile compression shear bending test CMT-50
Textile fabric tensile testing machine widely used in footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.
Textile fabric tensile testing machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
The implementation of standards and standard configuration
ASTM D5344 : standard test method for extension force of partially oriented Yarn
ASTM D3107-2007(2011) : Standard Test Methods for Stretch Properties of Fabrics Woven from Stretch Yarns
ASTM D 6614-2000 : Standrd Test Method for Stretch Propeties of Textile Fabrics-CRE Method
Capacity | 100. 200. 500. 1000. 2000. 3000. 5000. 10000kg |
Unit Switchover | G, KG, N, LB |
Display Device | LCD or PC / Tensile Testing Machine |
Resolution | 1/250,000 |
Accuracy | ±0.5% |
Max. Stroke | 1000mm (including fixture) |
Test Speed | 0.1-500mm/min (adjustable ) |
Motor | Panasonic Servo Motor |
Screw | High Precise Ball Screw |
Elongation Accuracy | 0.001mm |
Power | AC220V, 50HZ or customized |
Weight | Approx.500kg / Tensile Testing Machine |
Accessories parts | tensile clamp, computer system, English software CD, operation CD,user manual |
Main Features-5 ton Universal Testing Machine for wood tensile compression shear bending test CMT-50

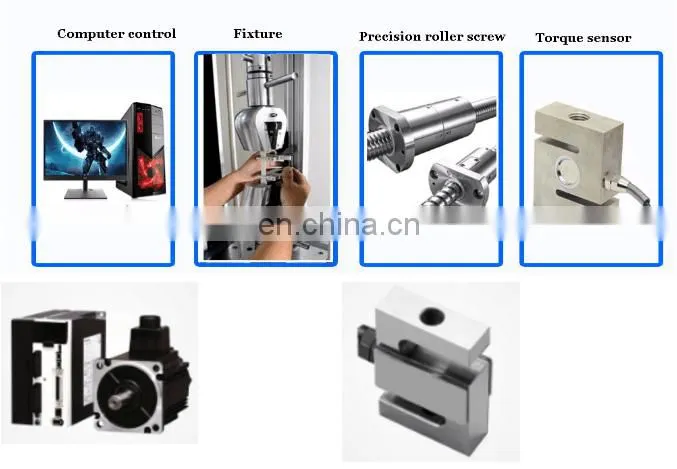

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
7. User can set parameters of product material such as length, width, thickness, radius, area and so on.
We have professional packing workers to pack your products!
1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
Company Information
Our Service
Pre-service
24 Hours online service for your consult. Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--18 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
FAQ
1. Q: What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
- Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q: What about the quality ?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
