Latest 3 Point Bending Test Machine,Tensile Strength Testing Machine Price Wholesale
Products Description
3 Points 4 Point Bending Strength Testing is most frequently employed, in which a specimen having either a circular or rectangular cross-section is bent until fracture or yielding using a three point flexural test technique. The flexural strength represents the highest stress experienced within the material at its moment of yield.
The test method for conducting the test usually involves a specified test fixture on a universal testing machine. Details of the test preparation, conditioning, and conduct affect the test results. The sample is placed on two supporting pins a set distance apart.
Purpose of Bending Testing
Bend testing a material allows for the determination of that materials ductility, bend strength, fracture strength and resistance to fracture. These characteristics can be used to determine whether a material will fail under pressure and are especially important in any construction process involving ductile materials loaded with bending forces. If a material begins to fracture or completely fractures during a three or four point bend test it is valid to assume that the material will fail under a similar in any application, which may lead to catastrophic failure. Our 3 Points 4 Point Bending Strength Testing Machine can fully achieve this purpose.
Common Bending Testing Method
There are four common types of bend tests. In a guided bend test, the sample is placed horizontally across two supports and then a force applied to the top of the midpoint deforming the sample into a “U” shape. In a semi-guided bend test, the specimen’s midpoint is bent to a specific angle or inside radius. In a free bend test, the ends of the sample are pushed together, but no force is applied to the bend itself. Finally, a common fracture toughness test (ASTM E399) consists of a sample with a precracked starter crack on the bottom side of the midpoint which is loaded into a 3-point bend fixture so that the midpoint force is applied on the opposite face from the fracture.

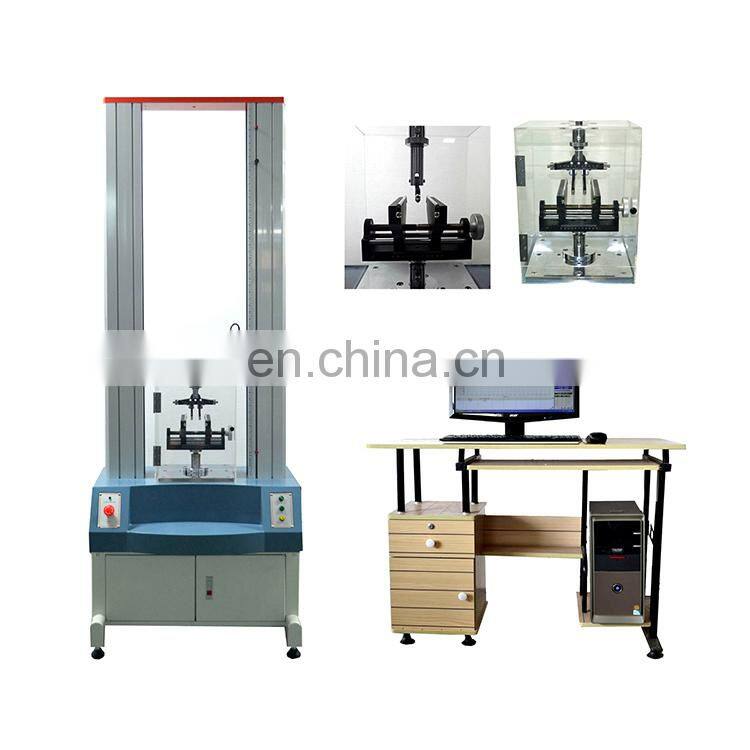

Main features of 3 Point 4 Point Bending Strength Testing Machine
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highly improve the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Specifications of 3 Point 4 Point Bending Strength Testing Machine
Items |
3 Points 4 Point Bending Strength Testing Machine |
Capacity |
100. 200. 500. 1000, 2000kg |
Unit Switchover |
G, KG, N, LB |
Display Device |
PC |
Resolution |
1/250,000 |
Accuracy |
±0.5% |
Max. Stroke |
1000mm (including fixture) |
Test Speed |
0.1-500mm/min (adjustable ) |
Motor |
Panasonic Servo Motor |
Screw |
High Precise Ball Screw |
Elongation Accuracy |
0.001mm |
Power |
AC220V, 50HZ or customized |
Weight |
Approx.500kg / Tensile Testing Machine |
Accessories parts |
Bend clamp, computer system, English software CD, Operation user manual |
Standards
- ASTM A370 Tensile Bend Strength Steel Test Equipment
- ASTM C1018 Fiber Reinforced Concrete Flexural Toughness Equipment
- ASTM C1161 Flexural Bend Ceramics Test Equipment
- ASTM C1499 Equibiaxial Flexural Ceramics Test Equipment
- ASTM C158 Flexural Bend Testing for Glass
- ASTM C393 Flexural Sandwich Composites Test Equipment
- ASTM C580 Flexural Modulus Elasticity Mortar Grout Polymer Concretes Test Equipment
- ASTM C947 Flexural Bend Glass Fiber Reinforced Concrete Test Equipment
- ASTM D143 Timber Clear Specimen Test Equipment
- ASTM D2344 short-beam testing of polymer matrix composite materials
- ASTM D6272 Four Point Flexural Bend Test Machine for Plastics and Insulating Materials
- ASTM D7249 Facing of Sandwich Testing by Long Beam Flexure Equipment
- ASTM D747 Bend Testing of Plastics by Means of a Cantilever Beam
- ASTM D7774 Flexural Fatigue Test Equipment for Plastics
- ASTM D790 Testing for Flexural Properties of Plastics and Insulating Materials
- ASTM F394 Biaxial Flexure Strength (Modulus of Rupture) of Ceramic Substrates
- ISO 178 3 Point Bend of Plastics | Flexural Test Machines & Equipment
- ISO 6872 Flexural Strength Dentistry Ceramics
- ISO 7438 Bend Testing of Metal
- IPC JEDEC 9702 Monotonic Bend Testing Interconnects - Board Level
Send a inquiry to ZONHOW lab consultants

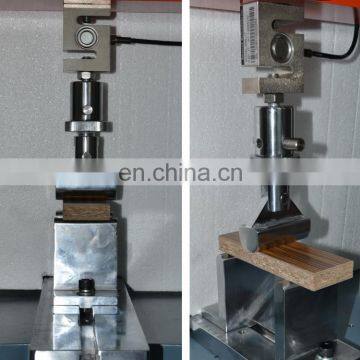

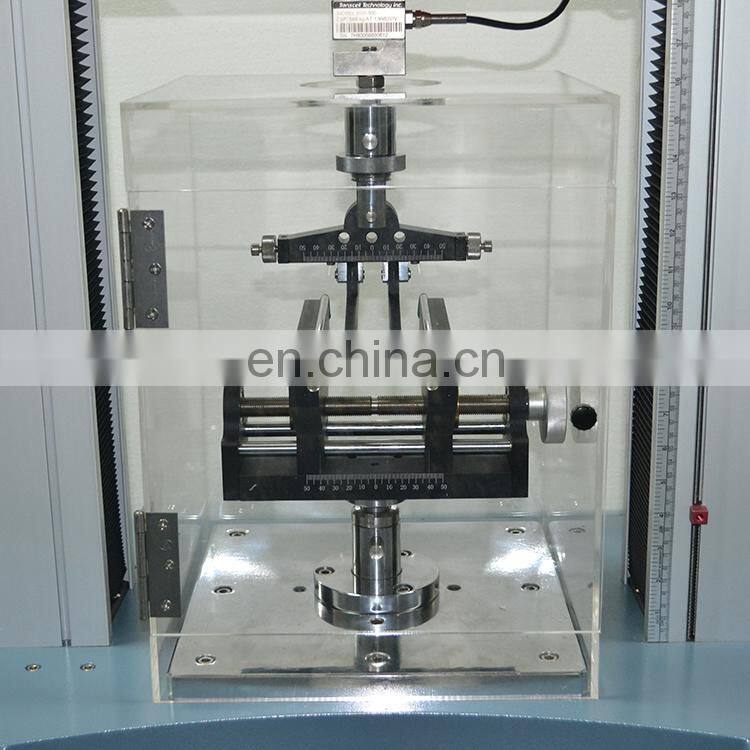

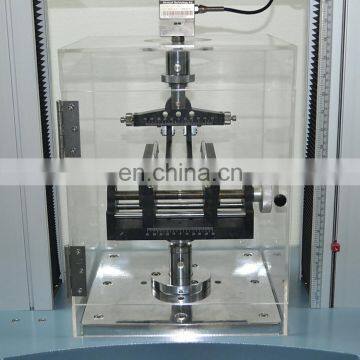

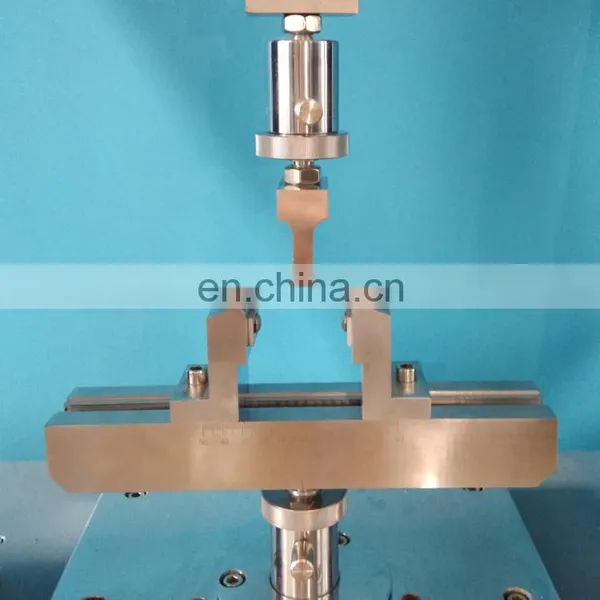

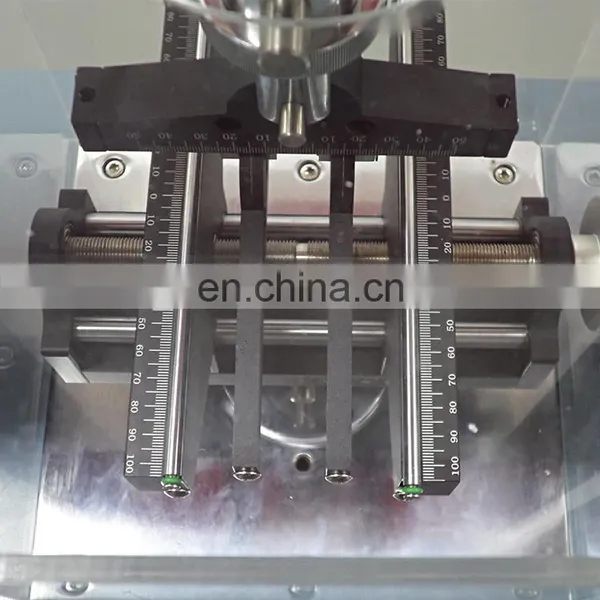

Common Clamps of 3 point 4 point bending testing
Bending Testing calmps can be customized according to your test products and test standards. More information pls contact us to talk more!
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
