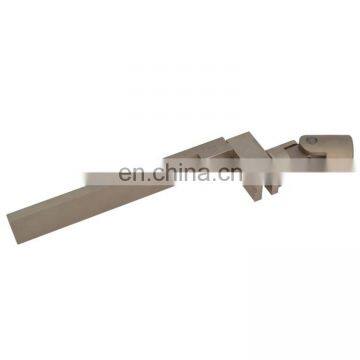

ZONHOW ASTM C273 Steel nickel-plated Sandwich Core Shear Testing Fixtures
NFT 54-605 ISO1922 ASTM-C273 EN12090 Shear test fixture
ASTM-C273 ASTM C394 ISO1922 shear test clamps fixture

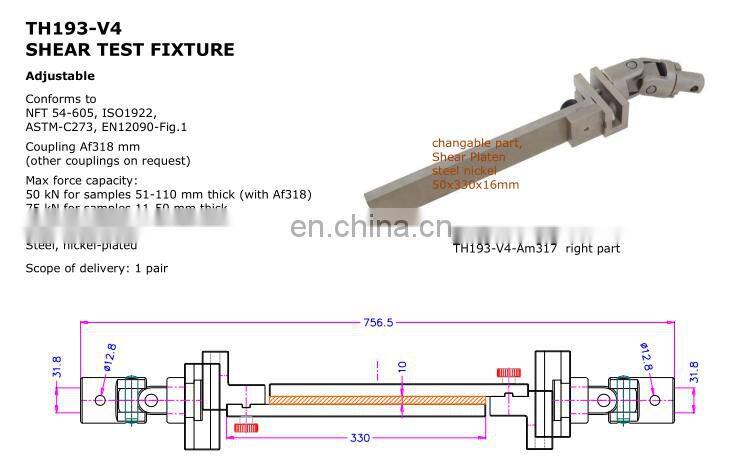

TH193-V4-Af138 Standard Shear test fixture of Sandwich Core Materials
ZONHOW ASTM C273 Steel nickel-plated Sandwich Core Shear Testing Fixtures
NFT 54-605 ISO1922 ASTM-C273 EN12090 Shear test fixture
ASTM-C273 ASTM C394 ISO1922 shear test clamps fixture
TH193-V4-Af138 Standard Shear test fixture of Sandwich Core Materi
Summary:

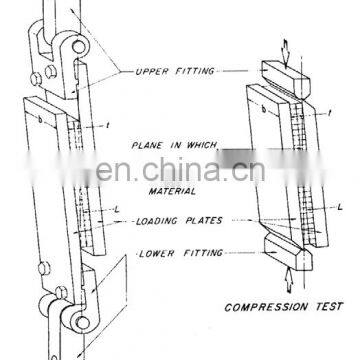

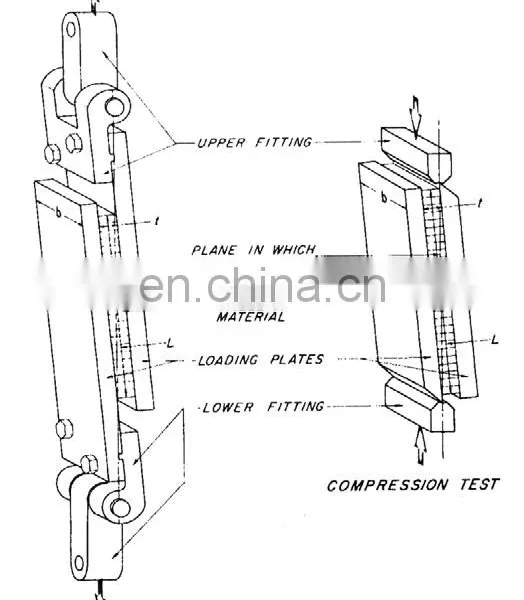

ASTM C273 is a testing specification that determines the shear properties of sandwich construction core materials associated with shear distortion of planes parallel to the facings. Shear force is applied on a sandwich core or sandwich panel parallel to the plane of its faces. The force is transmitted through the specimen with bonded loading plates. The displacement results in a shear force on the sandwich core. This test method also covers the determination of the shear modulus associated with strains in a plane normal to the facings. Core shear modulus, stress, and strength are reported in terms of the nominal shear area of the core.
This test method provides a standard method of obtaining sandwich core shear data for material specifications, sandwich panel design, research and development, and quality assurance.
Technical specifications:
| Name | ASTM C273 Steel nickel-plated Sandwich Core Shear Testing Fixtures |
| Fixture size | 756*58*58mm |
| Fixture weight | About 7~10KG |
| Max capacity | 100KN |
| Produce materials | steel nickel-plated |

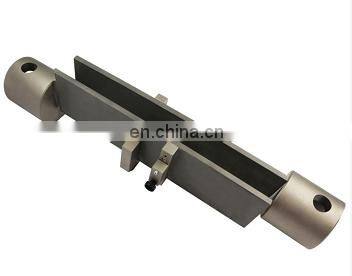

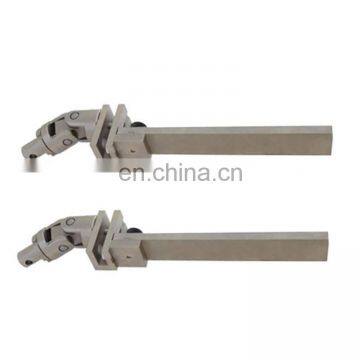

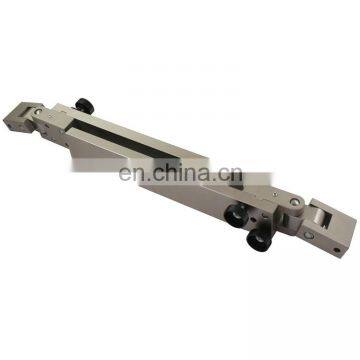

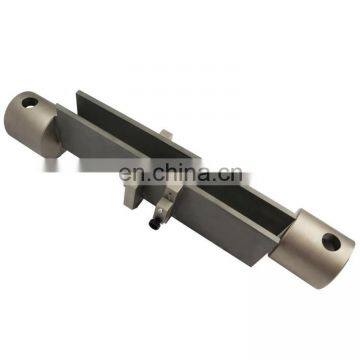

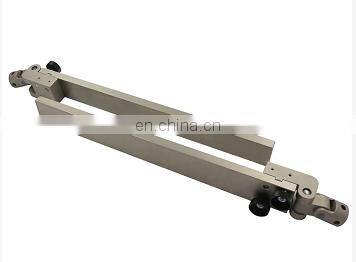

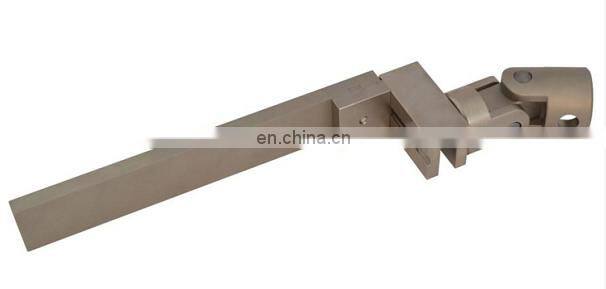

Real imagines:
We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
1. Are your company a trading one or a factory?
Factory + trade (integration),12 years focusing on test instruments field,5 years exporting experience.
OEM is also acceptable for us.
2. How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3. What’s the delivery term?
Most of the time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making a special
arrangement for you.
4. Do you accept customization service?
Yes, of course, we can not only offer standard machines but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5. Can we visit your factory before the order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange a hotel and pick up you from the airport.
6. Do you have customers from our country before?
Now our testing machines have been sold to more than 120 countries, like USA, Canada, Russia, UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam, Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is for one year. Within the warranty period, we can offer technical support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for the machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with operating instructions and video of the English version.
