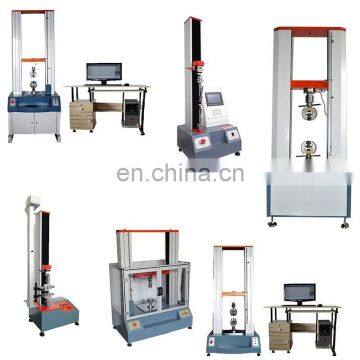

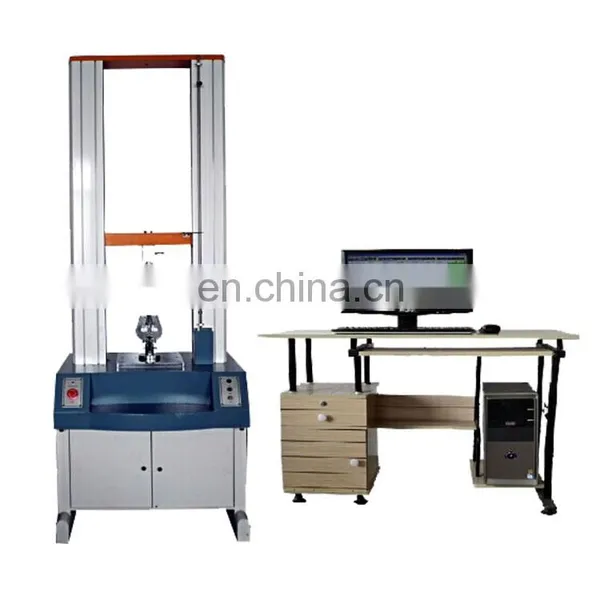

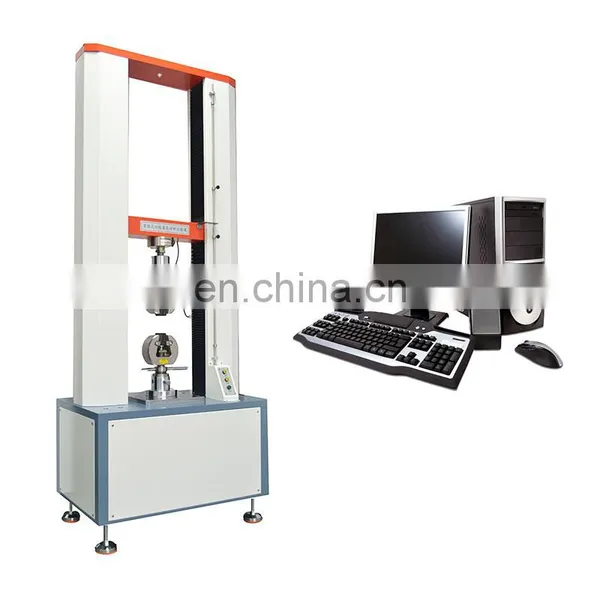

Drag tensile tester / fiber yarn tensile testing machine / 5KN computer display
Products Description-Drag tensile tester / fiber yarn tensile testing machine / 5KN computer display
Universal tensile tester is suitable to test tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished products. It is widely used in controling material quality.
Application Industries -Drag tensile tester / fiber yarn tensile testing machine / 5KN computer display
Tension and compression test machine, universal tensile tester is widely used in most of industries: Rubber & Plastics; Metallurgical iron and steels; Manufacturing machinery; Electronic equipments; Automobile production; Textile fibers; Wire and cables; Packaging materials and footstuffs; Instrumentation; Medical equipments; Civilian nuclear energy; Civil aviation; Colleges and universities; Research laboratory; Inspection arbitration, technical supervision departments; Building materials and so on.
Main features -Drag tensile tester / fiber yarn tensile testing machine / 5KN computer display
1. Whole facility structure is made of baking varnish aluminum profile,and inner part is applied the high-accuracy,low-resistance and zero clearance of dual-ball screw and oriented pole, through which highlyimprove the loading efficience and structure rigidity.
2.Use famous brand Panasonic servo motor, which ensure high efficiency,steady transmission and low noise.
3. Apply brand computer as the main control system, computer control with TM2101 software, back to origin automatically after the test, and can store data automatically or by manual operation
4. Data transmission: RS232, and displacement resolution: 0.001mm
5. Graph scale automatic optimization allows best measurement and can implement graphics dynamic switching by the test.
Standards -Drag tensile tester / fiber yarn tensile testing machine / 5KN computer display
Metals
- ASTM E8/E8M-13: "Standard Test Methods for Tension Testing of Metallic Materials" (2013)
- ISO 6892-1: "Metallic materials. Tensile testing. Method of test at ambient temperature" (2009)
- ISO 6892-2: "Metallic materials. Tensile testing. Method of test at elevated temperature" (2011)
- JIS Z2241 Method of tensile test for metallic materials
Composites
- ASTM D 3039/D 3039M: "Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials"
Flexible materials
- ASTM D638 Standard Test Method for Tensile Properties of Plastics
- ASTM D828 Standard test method for tensile properties of paper and paperboard using constant-rate-of-elongation apparatus
- ASTM D882 Standard test method for tensile properties of thin plastic sheeting
- ISO 37 rubber, vulcanized or thermoplastic—determination of tensile stress–strain properties
Specifications-Drag tensile tester / fiber yarn tensile testing machine / 5KN computer display
Items |
Tensile Testing Machine |
Capacity |
100. 200. 500. 1000. 2000. 3000. 5000. 10000kg |
Unit Switchover |
G, KG, N, LB |
Display Device |
LCD or PC / Tensile Testing Machine |
Resolution |
1/250,000 |
Accuracy |
±0.5% |
Max. Stroke |
1000mm (including fixture) |
Test Speed |
0.1-500mm/min (adjustable ) |
Motor |
Panasonic Servo Motor |
Screw |
High Precise Ball Screw |
Elongation Accuracy |
0.001mm |
Power |
AC220V, 50HZ or customized |
Weight |
Approx.500kg / Tensile Testing Machine |
Accessories parts |
tensile clamp, computer system, English software CD, operation CD, user manual |
Absorbed manufacturer for mechanical properties measuring equipment. Specialized clamps to exactly fit your test request!
Professional designed software. PC to view test results, analysis of data and graph!
We have professional packing workers to pack your products!
1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
Company Information
Our Service
Pre-service
24 Hours online service for your consult. Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--18 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
FAQ
1. Q: What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
- Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q: What about the quality ?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
