Electromagnetic High Frequency Transportation Simulation Vibration Test Table
used vibration testing equipment
PERFORMANCE DATA SHEET
Shaker (Model# EDM-2000) | ||
Sine force (peak) |
30kN |
|
Shock force (peak) |
60 kN |
|
Frequency range |
5~2,600 Hz |
|
Displacement (continuous) |
100 mm |
|
Max. Velocity |
1.8 m/s |
|
Max. Acceleration |
75 G |
|
Armature Diameter |
445 mm |
|
1st order resonant frequency |
2,400 Hz |
|
Allowable eccentric moment |
>500 Nxm |
|
Armature weight |
40 kg |
|
HE/ST screw dimension |
M10 (metric) |
|
Axial vibration isolation frequency |
<3 Hz |
|
Max. Payload |
500 kg |
|
Magnetic flux leakage |
≤1 mT |
|
Dimensions (L×W×H, unpacked) |
1,330x860x1,250 mm |
|
Weight (unpacked) |
2,500 kg |
|
Installation |
Rubber mat (anchor bolts required) |
|
Power Amplifier (Model# VSA-H323A) | ||
Amplifier output |
30 kVA |
|
SNR |
>65 dB |
|
Rated output voltage |
120 Vrms |
|
Amplifier efficiency |
> 90% |
|
Dimensions (L×W×H, unpacked) |
800x900x2,100 mm |
|
Weight (unpacked) |
500 kg |
|
Blower (Model# PBL-W30) | ||
Air volume |
0.46 m3/s |
|
Power |
7.5 kW |
|
Air duct diameter |
200 mm |
|
Air pressure |
8.8kPa |
|
Installation |
Able to connect to ceiling (up to two 90 degree bends), max 20’ run |
|

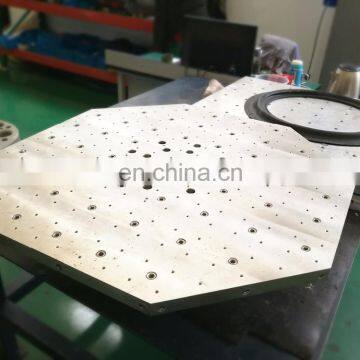

Horizontal Slip Table (Model# 30ST-600M) | ||
Dimensions |
600x600 mm |
|
Thickness |
45 mm |
|
Frequency limit |
2,000 Hz |
|
Effective mass |
54 kg |
|
|
Note: 1. High pressure oil-film bearing is used for better uniformity. | ||
Vibration Controller and Accelerometer | ||
Vibration Controller VT-9008-4 |
4 Channel Vibration Controller with Sine and Self Calibration. |
|
Accelerometer EA-YD-181 |
100mV/g, Range: 50g, Working Freq.: 1-10kHz, Weight: 11gram, with 10ft low noise cable |
|
Other supported functions/accessories | ||
Environmental chambers |
Supported |
|
Mobile devices |
Customizable |
|
Insulation boards |
Customizable |
|
Fixture |
Customizable |
|
Working environment of the system | ||
Temperature range |
0-40℃ |
|
Humidity range |
0~90% , no condensation |
|
Power requirements |
380V/3ph/50Hz, 40kVA |
|
Compressed air pressure |
0.6 Mpa |
|

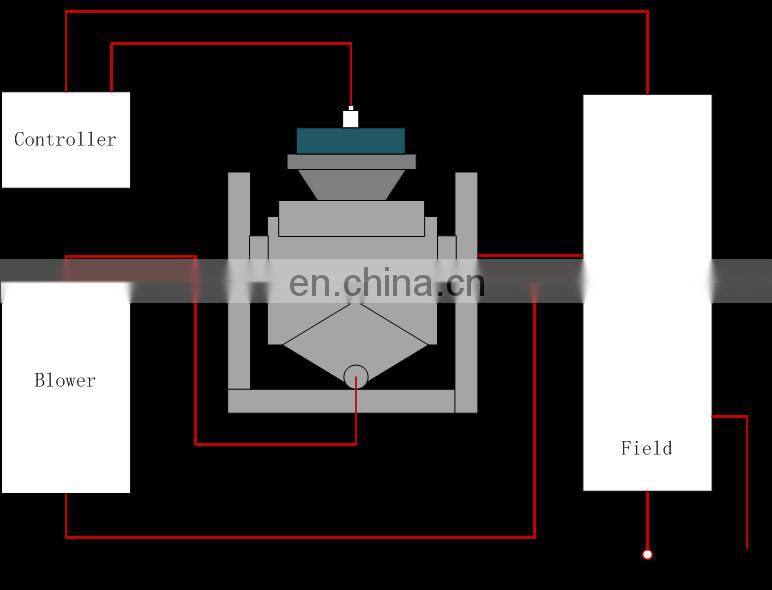

Block Diagram

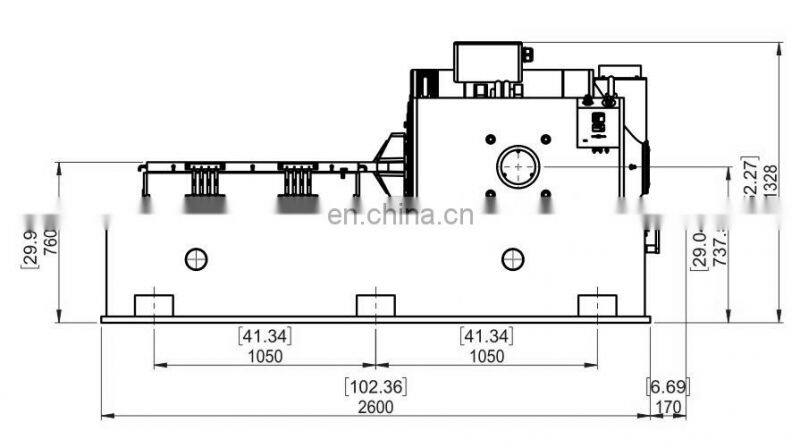

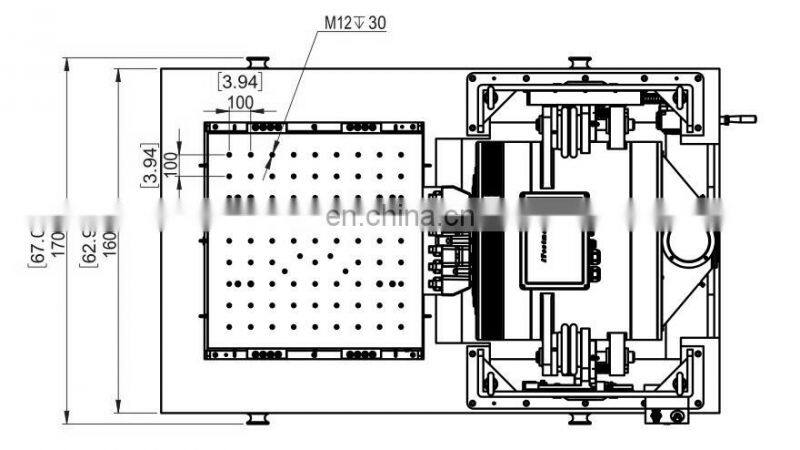

Shaker Body with Slip Table
Dimensions for reference only
used vibration testing equipment
Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.
used vibration testing equipment
Characteristics: Ultra mute work; The machine base uses the high quality material, installs conveniently, the operation is smooth, does not need to install the The, the control circuit digitization control and the display frequency, the PID adjusts the function, causes the equipment work to be more stable, reliable, sweeps the frequency and the fixed frequency operation way, adapts to the different profession test request To solve the interference of the strong electromagnetic field to the control circuit, and to increase the working time set, so that the test product reaches the accurate test time.used vibration testing equipment
Haida Equipment Service:used vibration testing equipment
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:used vibration testing equipment
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:used vibration testing equipment
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.used vibration testing equipment
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service: used vibration testing equipment
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
