STANDARD FEATURES
Model |
HD-E702-100-7 |
Internal dimension (W*D*H) |
400*500*500mm |
External dimension (W*D*H) |
600*1280*1380mm |
Temperature range |
-70~+150℃ |
Temperature fluctuation |
±0.5℃ |
Temperature uniformity |
2℃ |
Humidity range |
20~98%RH (Refer Image below) |
Humidity fluctuation |
±2.5%RH |
Humidity uniformity |
3%RH |
Cooling speed |
1℃/min in average (without loading) |
Heating speed |
3℃/min in average (without loading) |
Internal chamber material |
|
External chamber material |
Stainless steel |
Cooling method |
Air cooling |
Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
Insulation material |
50mm high density rigid Polyurethane foam |
Heater |
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
Compressor |
France Tecumseh compressor x 2sets |
Lighting |
Heat resistance |
Temperature sensor |
PT-100 dry and wet bulb sensor |
Observation window |
Tempered glass |
Testing hole |
Diameter 50mm, for cable routing |
SUS#304 stainless steel, 2pcs |
|
Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain

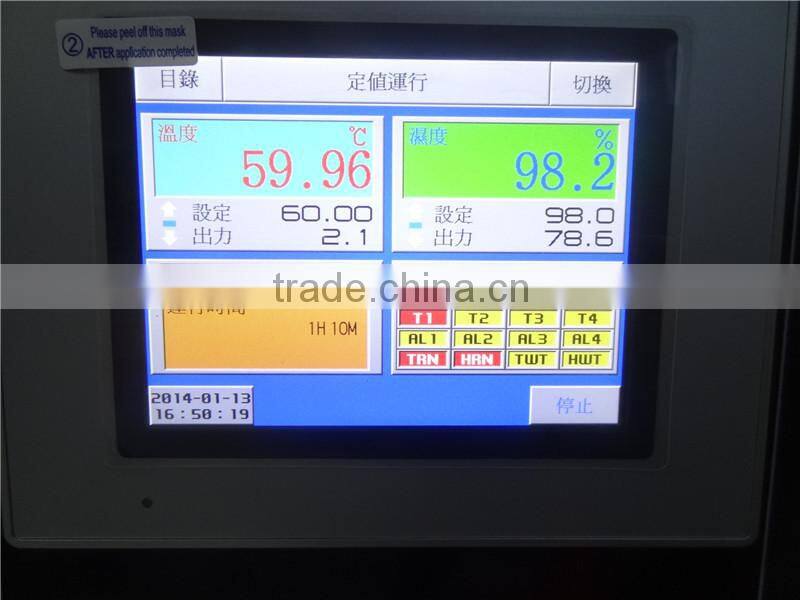

PROGRAMMABLE CONTROLLER
1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output

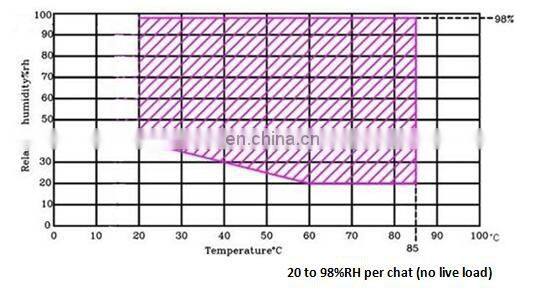

HUMIDITY RANGE

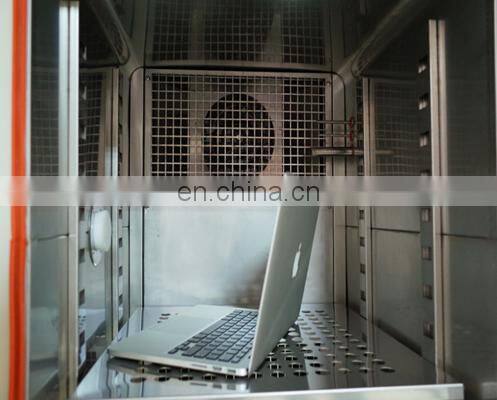

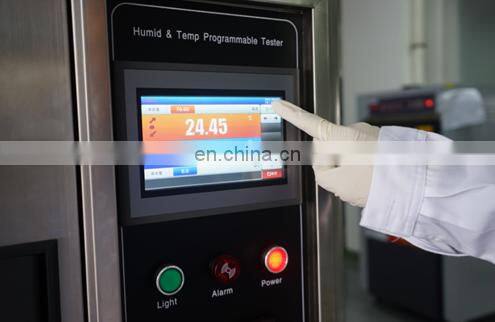

PLC OPERATION INTERNAL CHAMBER
Image:
