Xenon Arc Lamp Uv Weathering Test Chamber Weatherometer Cabinet/Xenon Lamp Testing Machine
Product description:
Accelerated Weather UV test machine is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
Chamber Structure:
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Technical parameters: Various Material UV Lamp Weatherometer
Studio Size |
400W×1140D×390Hmm |
Outside dimension |
500W×1300D×1360Hmm |
Materials |
Inside and Outside SUS#304 stainless steel |
Temperature range |
RT+10~70°C |
Temperature uniformity |
±2°C |
Temperature fluctuation |
±0.5°C |
Temperature control |
PID SSR control |
Humidity range: |
≥90%RH |
Controller |
Korean TEMI 880 programmable controller |
Control mode |
Balance temperature humidity control (BTHC) |
Test cycle setting |
Illumination, condensation and water spray test cycle is programmable |
Lamp power |
40W/Piece |
Distance from sample to lamp |
50±2mm (adjustable) |
Centre distance between the lamp |
70mm |
Irradiance |
1.0W/cm2 |
Wavelength ultraviolet light |
UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) |
Effective irradiation areas |
640×1140mm |
Irradiation black panel temperature |
50°C~70°C |
Standard Specimen Size |
75×150mm or 75×3000mm (special specitications to be described in the contact) |
Required water depth for water channel |
25mm, automatically control |
Testing time |
0~999H, adjustable |
Power |
220V/50Hz /±10% 5KW |
Protection system |
Overload short circuit protection, over temperature protection, water lackin |
Control System:
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to
ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The illumination and condensation can be controlled independently or alternating and circularly.
Design criteria:
(1) ASTM D4587: Standard Practice for Fluorescent UVCondensation Exposures of Paint and Related Coatings
(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials
(Fluorescent UV, Water Spray, and Condensation Method)
(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance
(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps
(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics
(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure
(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics
(8) IEC 61345: UV Test for Photovaltalic (PV) Modules

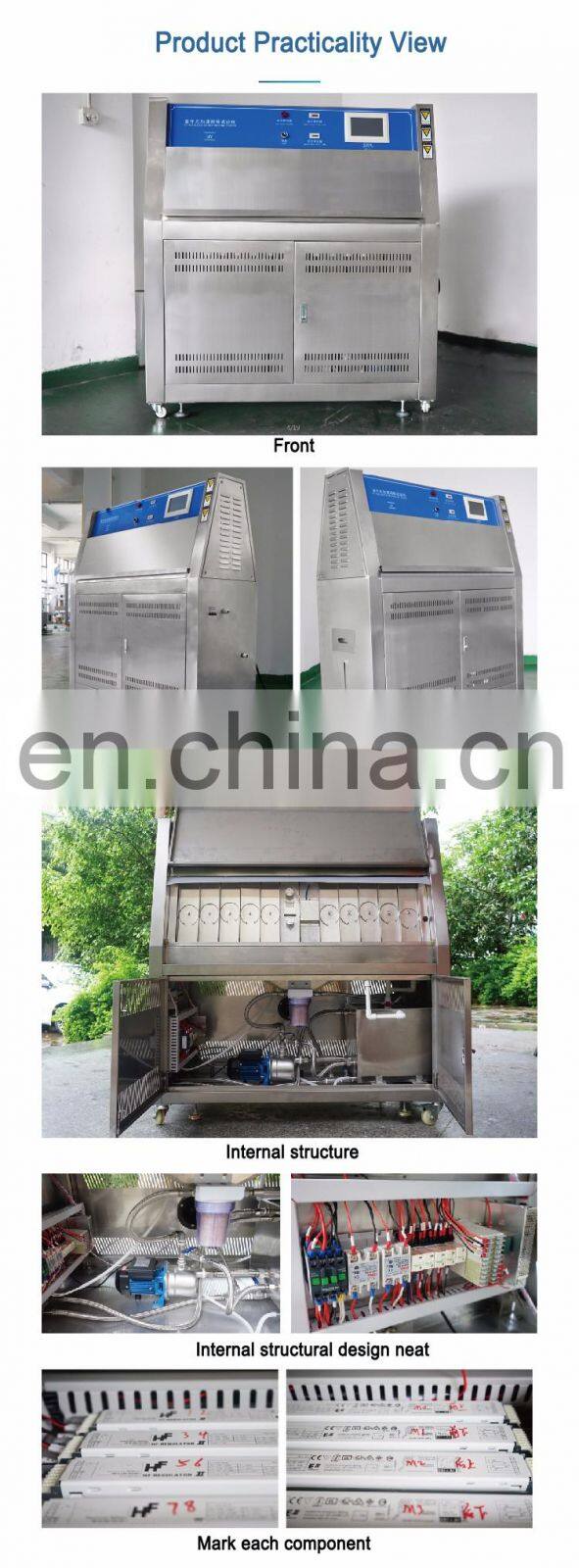

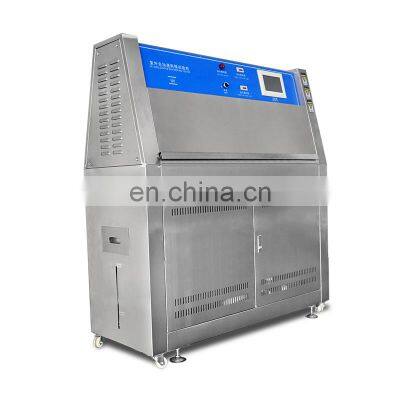

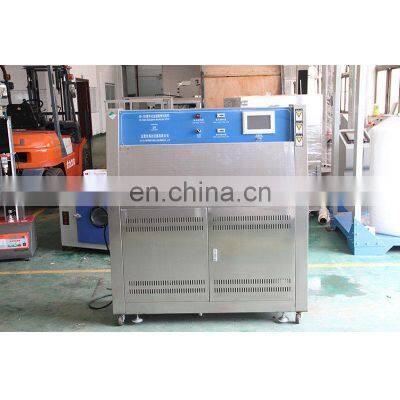

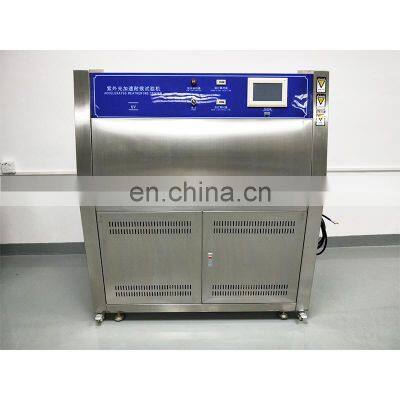

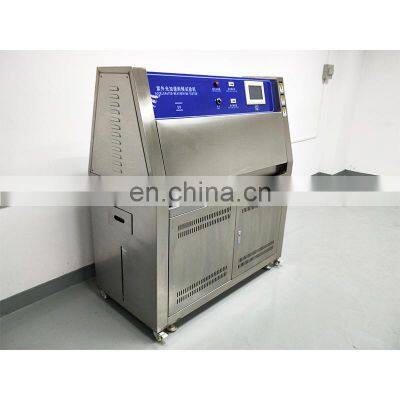

Poduct images:

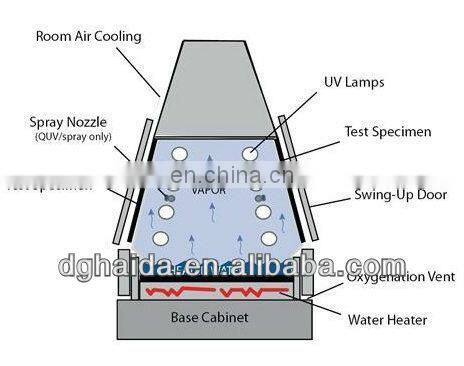

Product structure:
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
