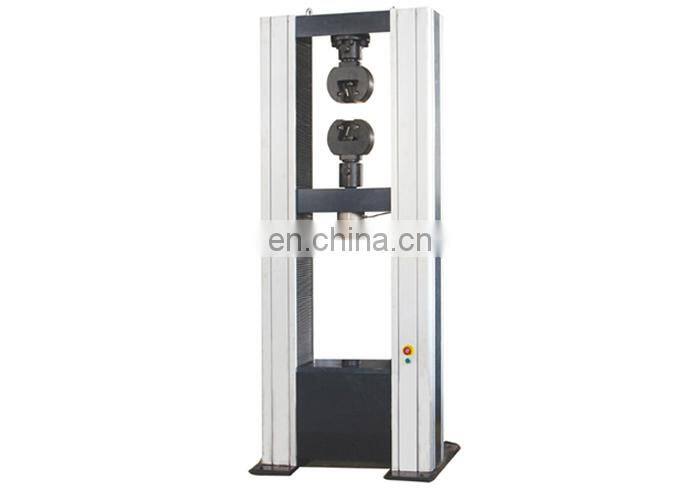

Used Machine Universal Strength Tester Tension Testing Equipment Metal Manufacturer Name Utm Tensile Test
| Order process | |
| We offer below business term | |
| Accepted Delivery Terms | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency | USD, EUR, HKD, CNY |
| Accepted Payment Type | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |

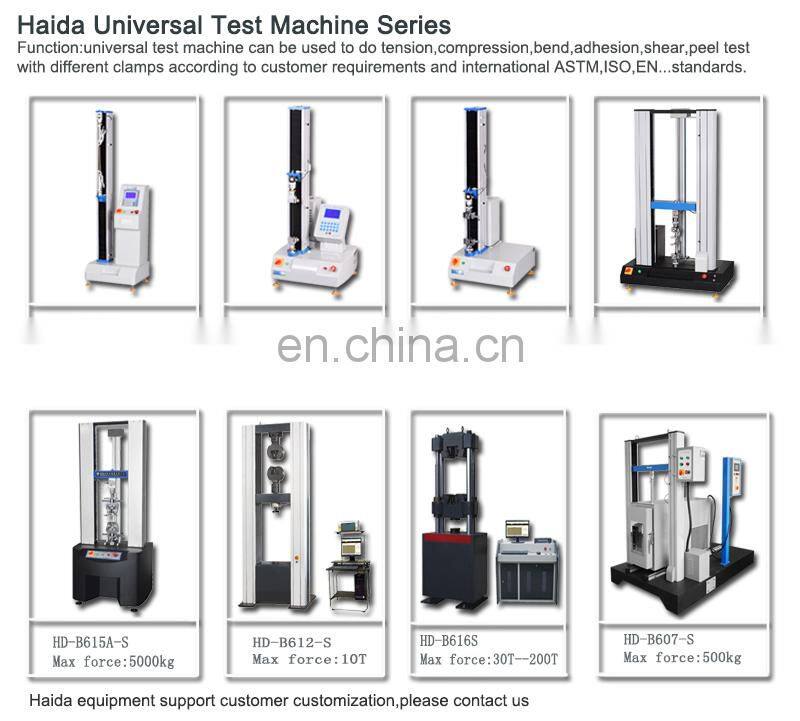

Universal testing equipment can do tensile, bending, compression, shear, ring stiffness, and other functions in one of the material testing machine, mainly used for metal, nonmetal material mechanical performance test, is the industrial and mining enterprises, scientific research units, colleges and universities, such as construction quality surveillance department ideal test equipment
Optional Accessories:
Clamps:
Ø Plastic & Rubber Wedge Clamp (1000kg)
Ø Metal Wedge Clamp (2000kg)
Ø Bend Clamp
Ø Compression Plate
Load cell:
Ø 5000kg load cell
Ø 2000kg load cell
Calibration Certificate
Calibration Device
Standard Features:
Item |
Description |
Frame capacity |
500kg, 1T, 2T , 5T,10T |
Load cell brand |
USA brand transcell load cell for high accuracy 10T (2T, 5T are optional) |
Load accuracy |
0.5% F.S |
Control system |
PC with windows 7 system |
Motor |
Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
Force reading |
kgf, Ibf, N, KN, T etc |
Vertical test space |
1100mm including fixture |
Horizontal test space |
≤400mm |
Test speed |
0.01~500mm/min (adjustable) |
Software |
TM 2101 |
Curves display |
Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display |
Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Applications:
1. Tested sample: laminated materials, wood,steel,rebar metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined load of tested sample
4. Load under defined deformation: Test load under defined deformation of tested sample
5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
Application of standard:
ASTM E8, EN 10002-1,ASTM A370: Tensile Test
ASTM A370: Bend Test
ASTM B-117, ISO 3768: Salt Spray Test
ISO 6506, ASTM E10-14: Brinell Hardness
ASTM E23, ISO 148: Impact Test
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
Please feel FREE to contact us if you have any needs. And welcome to visit our OFFICIAL WEBSITE at:
If you want to know more information...
Please leave a message below and click " SEND "
Thanks for your time and attention!
