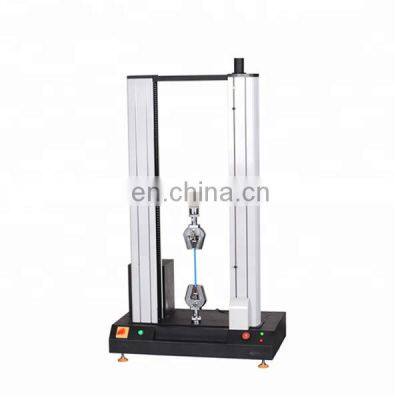

Mechanical sport Release Tensile Test Equipment
Product Description

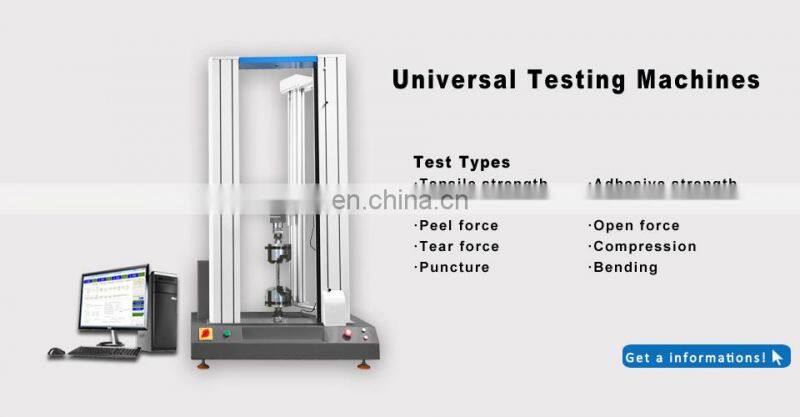

These series of Testing Machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality contorl (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.
Main Technical Parameter: Mechanical sport Release Tensile Test Equipment
|
Items |
Specification |
|
Sensor |

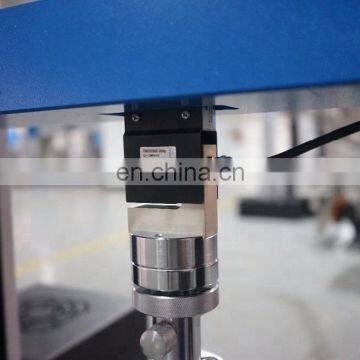

Celtron load cell |
|
Capacity |
1000,2000,3000,5000kg |
|
Unit Switchover |
G, KG, N, LB |
|
Display Device |
PC |
|
Resolution |
1/250,000 |
|
Accuracy |
±0.5% |
|
Max. Stroke |
1200mm (including fixture) |
|
Test Speed |
0.1-500mm/min (adjustable ) |
|
Motor |
Panasonic Servo Motor |
|
Screw |
High Precise Ball Screw |
|
Elongation Accuracy |
0.001mm |
|
Power |
AC220V, 50HZ |
|
Weight |
Approx.250kg |
|
Accessories |

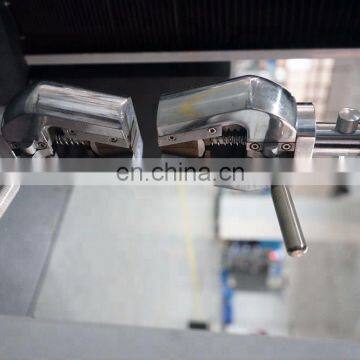

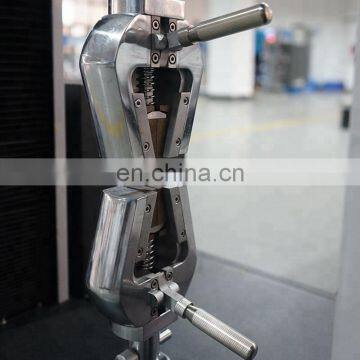

One set tensile clamp,one set Lenovo computer, one piece English software CD, one piece operation video CD, one piece English user manual |
Usage

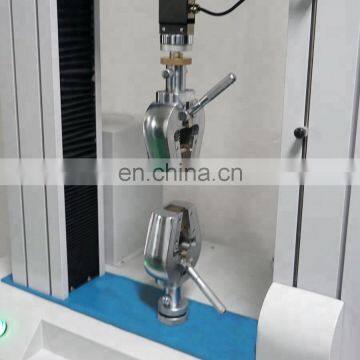

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Characteristics:
1.Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
4. With a variety of measurement units, Measure In Imperial & Metric are switchable;
5. With self-return & auto-correction function;
6. With automatic magnification function, in order to achieve the most appropriate size of the graphics
