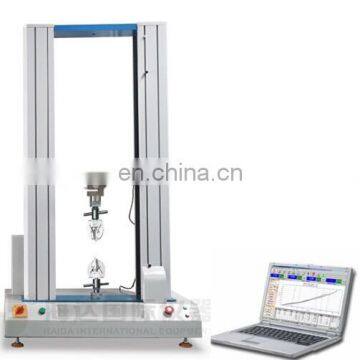

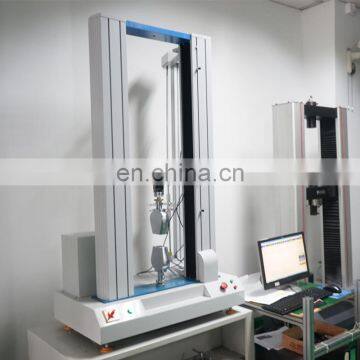

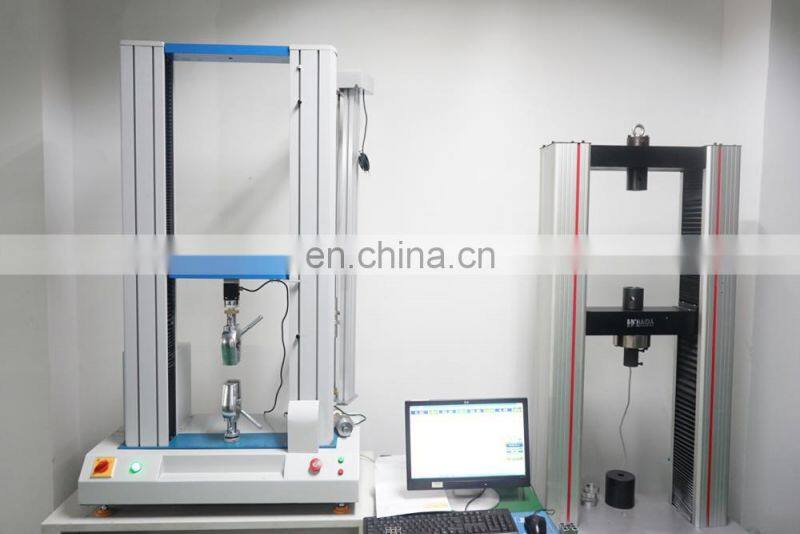

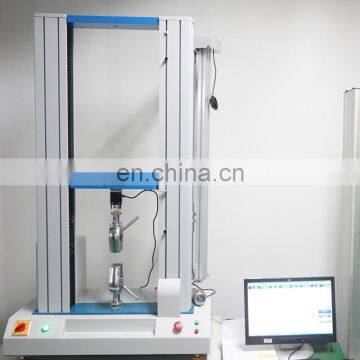

Equipment Fatigue Tester Elongation Bending Wire Tensile Testing Machine
1. Product Description:
Wire Tensile Testing Machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,...etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control(I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.
2. Specifications:
Wire Tensile Testing Machine | |
| Model | HD-604B-S |
| Capacity (optional) | 50kg, 100kg, 200kg, 500kg, 1T, 2T |
| Unit (Switchable) | G, KG, N, LB |
| Load Resolution | 1/250,000 |
| Load Accuracy | ≤ 0.5% |
| Stroke (exclude the grips) | 1000 mm |
| Test Speed | 0.1~500 mm/min selectable |
| Effective Width | 400 mm |
| Operation Mode | PC |
| Weight | Approx. 150Kg |
| Display | PC |
| Motor | Servo motor |
| Dimension(L×W×H)-Main Unit | 985×510×1600cm |
| Power | 1phase, 220V/49Hz |
| Rotation method | high-precise ball screw rod |

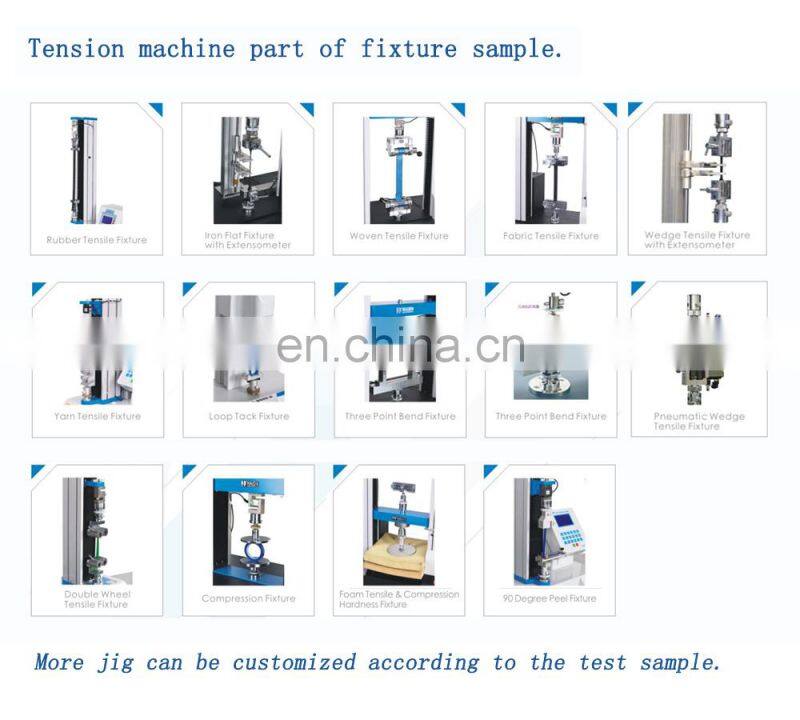

| Accessories | Tensile grips 1 set, one computer |
| Design criteria | GB/T16491, GB/T1040, GB/T8804.1-2, GB/T8808, GB13022 |
3.Wire Tensile Testing Machine's Features:
1) Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2) Using a single-screen operation; do not need to switch the screen;
3) With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
4) The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5) Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6) With a variety of measurement units, Measure In Imperial & Metric are switchable;
7) With self-return & auto-correction function;
8) With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9) With the user-defined Test methods; with experimental data analysis function
4. Wire Tensile Testing Machine's Theory:

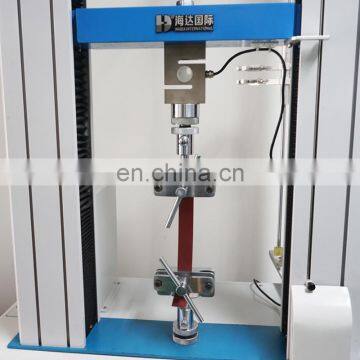

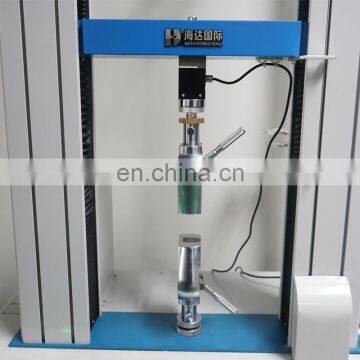

Wire Tensile Testing Machine's adopts the material tensile meter, use the motor to make displacement of the fixture.
Place the fixture with sample between the upper and lower fixture, use a given speed to pull the upper fixture
upward, and the upper load cell with sensor the tensile strength, and convert the strength into voltage sign and
output to the display screen. And the strength value will be displayed automatically.
Our company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 15 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Haida Equipment Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
Packaging & Shipping
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
