1000KN Digital Dynamometer Tension Calibration
Digital Push Pull Force Gauge from China
1.Description:
The force gauge has advantages of high precision, easy operation and carry. What's more, it has kinds of
testing modes, convenience for conner and it can store and input data to computer for statistical analysis
as well as constitutes testers with different functions, combination with test-beds and clamp.
Users can input local acceleration of gravity value to make test more precise.
2.Technical Parameters:
MODEL |
HF-1000K |
Capacity |
1000KN |
Resolution |
1KN |
Sensor Structure |
SPOKE(EXTERNAL) |
Accuracy |
±0.5% |
Size |
230x66x36mm |

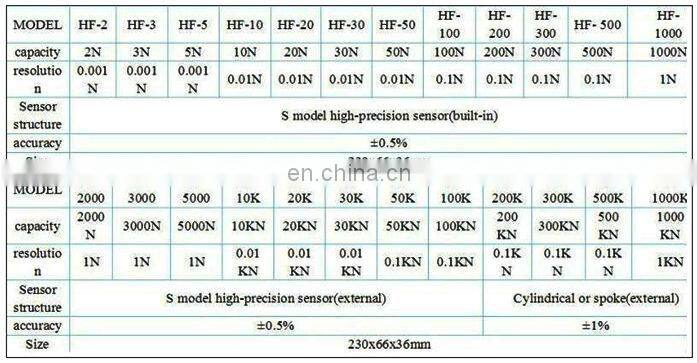

3.Technical Parameters Of All The Digital Force Gauges:
4.Functional Characteristics:
(4.1).High precision and high resolution.
(4.2).Five testing modes and three display methods for selection-enhance testing efficiency to the maximum
extent.
(4.3).N (Newton), kg (Kilogram) and lb (Pound) three measuring units for selection and conversion.
(4.4).Setting function of gravity acceleration.
(4.5).Function of peak value maintaining. Maintain the display of peak value until manual zero Clearing.
(4.6).Automatic peak function.
(4.7).Max and min and comparison value can be set for statistic analysis. The buzzer will alarm if exceeding
comparison value.
(4.8).Data storage function. 896 testing values can be stored.
(4.9).Data output function. The data can be input into computer through data line for various analyses.
(4.10).Environmental protection. The device will automatically stop if no operation within 10 minutes.
(4.11).High quality chargeable power supply. The charging voltage is available from 100V to 240V, which can
accommodate most areas in domestic and at abroad. It has also protection functions for short circuit,
leakage and overload.
(4.12).2 sets mounting dimensions, it is applied for most testing platforms domestically and easy for users to
install it to platform.
(4.13).Special testing function of make-break ability of switch contact to make the make break testing be more
accurate.
(4.14).6 digits large screen display.
(4.15).Synchronous measuring software can connect computer measuring, the computer display measuring
graph and the detailed testing records,and can preserve, print ,make analysis,input speed, area,
displacement, pressure.(chosen function details see CD data)
(4.16).Contact control signal output setting comparative value,when the Measuring value is over comparative
value,output signal control circuit Breaker's makeand break,thus realize the function of stop electromotor,
And control automatically; it is also can be used for realize other control Functions, for example input
signal to plc to realize automatization. Also it can set signal output mode, for example output signal at
some Measuring range. There is a jack on the side of apparatus can put one Side of connection line to
secondary jack,and the other side in the jack On the testing machine which is produced by our company,
thus it can realize function of stop electromotor automatically when the measuring Value is over
comparative value.The comparative value can set by himself.
(4.17).Negative phototropism function use key-press or apparatus is stressed,the negative photo tropism
would light automatically, it will close negative phototropism if 10s non-operation;it also can press
"setting" key 6 times ,enter 'light" condition, choose "NO" to close negative phototropism, chose "YES"
to start the function automatically.
(4.18).LCD overturn display press "print" key can make the value reverse 180°,convenience for looking the
measuring value from different angle.
5.The Packing Way Of Our Export Machines:
6.The Realistic Pictures Of Our Factory:
7.Our Cooperative Partners:
