KUT500 Intelligent Portable Ultrasonic Metal Detector
- 100 Set / Sets per Month
- All Ports of China
- T/T Credit Card
- KUT650 Auto Calibration Digital Ultrasonic Flaw Detector
- Ultrasonic Thickness Gauge KS40+ with Coating Mode
- JB-4C Computer Control High Precision Surface Smoothness Meter Surface Roughness Tester PC
- ASZ-50 50KN Digital Wire Rope Tension Tester
- KS-1 High Speed Impact Torque Tester Without Printer (Small Measuring Range) from China
- 100N Digital Dynameter Tension Measuring Gauge Push Pull Force Gauge
Product Details
Brand Name: | KS | Place of Origin: | Shandong, China | Model Number: | KUT500 |
Product Description

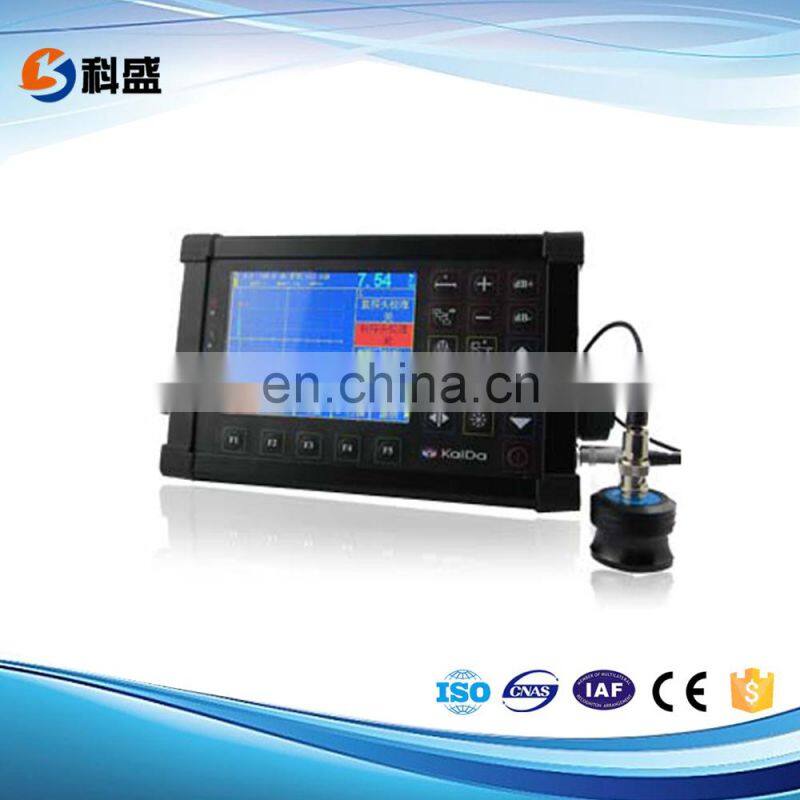

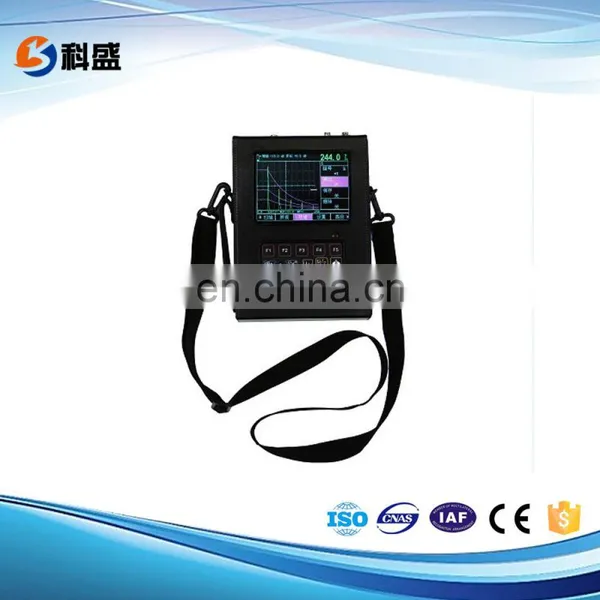

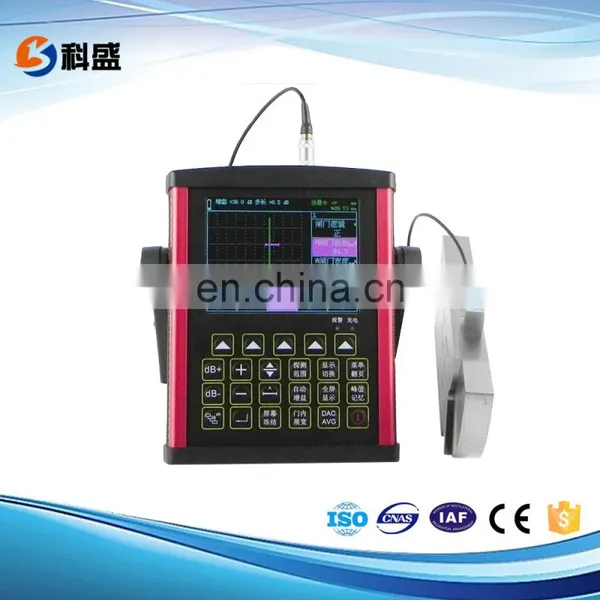

KUT500 Intelligent Portable Ultrasonic Metal Detector
Overview
This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect,
locate, evaluate and diagnose various defects (crack, inclusion and pinhole, etc.) in a workpiece without
destruction. It can be used both in a lab and field. The instrument can be widely used in any fields that need
defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry,
metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life
evaluation in such fields as aerospace, railway transportation and boiler pressure vessels, etc. It is an
essential instrument for non-destructive inspection industry.
Measuring Range and Measuring Error
Range of scanning: 0 mm ~6000 mm
Resolution for scanning: 0.1mm (2.5mm ~100mm) 1mm (100 mm ~5999mm)
Range of gain: 0dB ~100 dB
D-Delay: -20µs~ +3400µs
P-Delay: 0µs~ 99.99µs
Sound speed: 1000 m/s~ 15000m/s
Operation Environment
Temperature:-10℃~50℃
Humidity:20%~ 90%RH
Free of strong magnetic field and corrosion.
Power supply
Li battery7.4V 4800mAh
Overall Dimension and Weight
Overall dimension: 240mm×150mm×50mm
Weight: 1.6kg
ultrasonic metal detector
1. What about your delivery time?
A: We have skilled workers and professional work division for assembly and checkout. Usually, our
delivery time is 7~14days.
2. What about the transportation?
A: We have stable forwarding agent for Air transportation and Sea transportation. And also express
delivery of TNT, DHL.
3. What about your packaging?
A: Digital material universal testing machine packed with export standard wooden box.
ultrasonic metal detector
After-sales service commitment
Warranty
The testing machine is guaranteed for a year by Jinan Kason Testing Co., LTD and has whole-life service
(including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely
welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance services
Consultation services. We answer your question timely via the telephone or email.
Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and
support, there will be enjoyable and long-term friendly cooperation.
ultrasonic metal detector
ultrasonic metal detector
