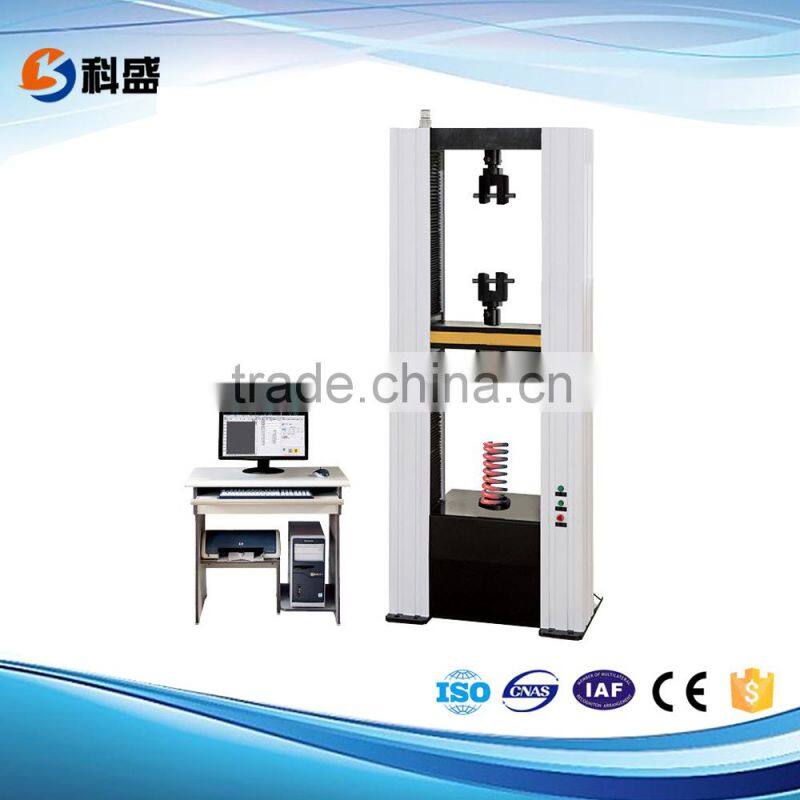

TLW Series Computer Control Automatic Spring Tension and Compression Tester/ Coil Test Equipment
- Qingdao China
- T/T Credit Card
You May Like
-
Digital display gas spring tensile test machine
-
TLS-100S 100N Manual Spring Tension and Compression Tester /Load Tester
-
TNS Vertical Manual Digital Display Spring Torsion Testing Machine / Spring Torsion Tester
-
TLS high precision digital display manual spring tension and compression tester/testing machine with CE certificate
-
1-3kN HSFT Digital Display Spring Fatigue Testing Machine Dynamic Fatigue Testing Machine for Spring
-
1-3kN HSFT-W Computer Control Spring Fatigue Testing Machine Dynamic Fatigue Testing Machine for Spring
Product Details
| Brand Name | Kason | Place of Origin | Shandong, China | |
| Model Number | TLW-10/20/30/50/100/200 | Power | Electronic |
Product Description
Application:
Adopting electric load reduction system after deceleration to driven precision ball screw assembly loading to achieve a fully digital adjustment data acquisition and control process It is made based on the national spring tensile and compression tester standards of technical requirement, professional design of automatic control and data acquisition system, realized the data acquisition and control process full digital adjustment. Mainly used to tension spring,compression spring, saucer reed,tower spring,leaf spring,clip spring,flat spring,composite spring,gas spring, mold spring, deformed spring and other precision spring tensile, compression, displacement and rigidity test and analysis.
Main specification:
Model | TLW- 10 | TLW- 20 | TLW- 30 | TLW- 50 | TLW- 100 | TLW- 200 | TLW- 300 | |
Max test force(N) | 10kN | 20kN | 30kN | 50kN | 100kN | 200kN | 300kN | |
Structure | Four columns floor type(upper tensile, lower compression / upper compression, lower tensile) | |||||||
Control method | Computer automatic control | |||||||
Test accuracy | 1 class | |||||||
Test force test arrange (F·S) | 2%~100%F·S( stepless ) | |||||||
Test force value relative error | ≤±1% | |||||||
Displacement value relative error | ≤±1% | |||||||
Displacement resolution | 0.01mm | |||||||
Deformation value relative error | ≤±(50+0.15L)um | |||||||
Speed adjust range | 0.05-300mm/min | 0.05-200mm/min | ||||||
Speed error | ≤±1% | |||||||
Effective tensile space | 700 | 650 | 600 | |||||
Effective compression space | 700 | 650 | 600 | |||||
Pressure plate size | 400 | 450 | 550 | |||||
Pressure plate diameter | 110mm | |||||||
Power supply | AC220V±10%,50Hz | |||||||

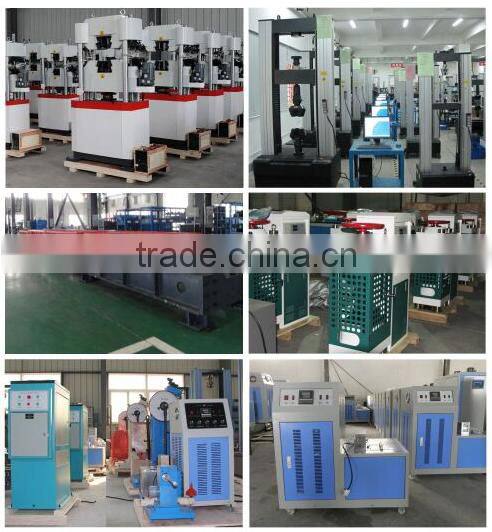

Factory:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
