1.Application:
GW-40B Steel Bar Bending Testing Machine is special equipment to do bending test for steel bar
and reinforced steel bar.It can do bending test in both directions according to standards requirement.
2.Applicable Standards:
It conforms to standards ISO 7438:1985, ISO 8491:1998(E), ISO 6935-2-1991 and DIN, JIS and
ASTM (ASTM A615-89,ASTM A615M-89).
3.Main Specifications:
Model |
GW-40B |
GW-50B |
Bending Diameter Of Steel Bar |
DIA 6~40 mm |
DIA 6~50 mm |
Forward Bending Angle |
0°~180° (the angle can be set freely in the range) |
|
Reverse Bending Angle |
0°~25° (the angle can be set freely in the range) |
|
Roating Speed Of Working Table |
<2 r/min, <12°/S |
|
|
Distance Between The Center Of Two Rolls |
165 mm |
260 mm |

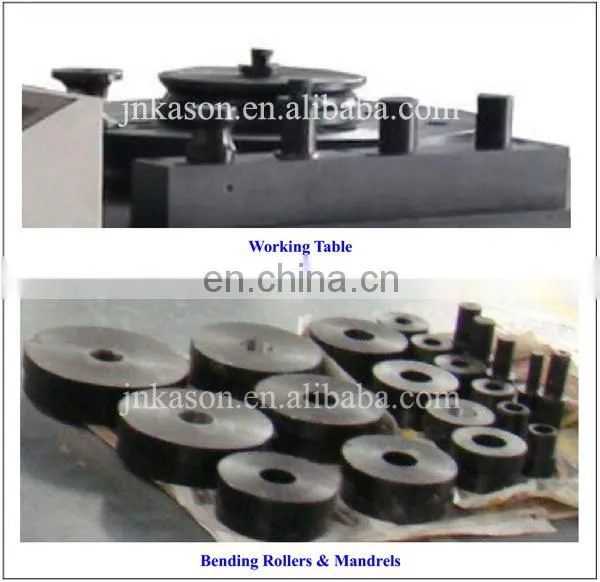

Diameter Of The Working Table |
DIA 580 mm |
DIA 950 mm |
Supply Power |
380V, 50Hz |
|
4.The Packing Way Of Our Export Machines:
6.Our Cooperative Partners:
