NDW Series Computer Control Axial Torsional Material Testing Machine/Laboratory Test Equipment
- 200 Piece / Pieces per Month
- All Ports of China
- T/T Credit Card
- NDW-300 300N/m Computer Control Copper Material Torsion Testing Machine Torsion Tester Torsion Test Equipment
- NJS-200 200 N.m Digital Display Manual Material Torsion Testing Machine
- NJS-Z150 150N.m Digital Display Torsion Testing Machine/Tension torsion testing machine 150NM
- NJS-Z200 200N.m Digital display Wire Torsion tester / Wire Torsion Testing Machine price
- EZ High Quality Biomechanics Tensile Compression and Torsion Testing Machine Price
- NDS-500 500N/M Digital Display Material Torsion Tester Wire Torsion Testing Equipment Steel Plate Torsion Testing Machine
Product Details
Brand Name: | KASON | Place of Origin: | Shandong, China | Model Number: | NDW |
Power: | Electronic |
Product Description

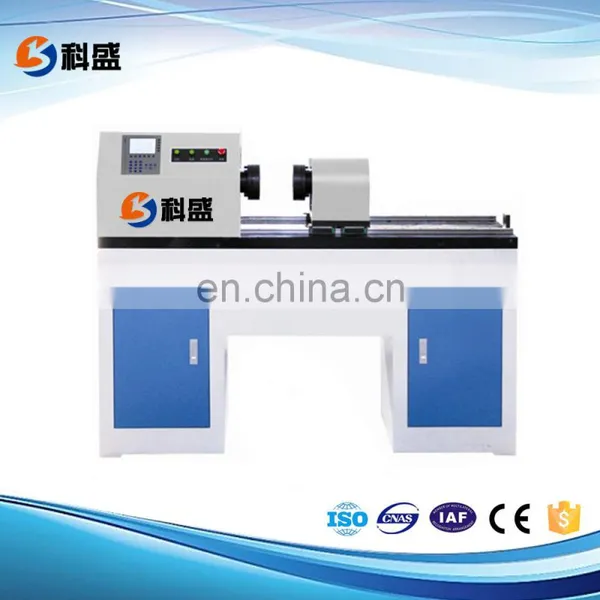

NDW Series Computer Control Axial Torsional Material Testing Machine/Laboratory Test Equipment
Introduction
NDW Series Computer Control Axial Torsional Material Testing Machine/Laboratory Test Equipment is suitable for metal materials, non-metallic materials, composite materials and components of torsion performance test.
Standard :
GB/T 10128-1998 "Metal room temperature torsion test method"
GB/T 10128-2007 "Metal room temperature torsion test method"
Technical parameter :
Model | NDW-100 | NDW-200 | NDW-500 | NDW-1000 | NDW-2000 | NDW- 3000 | NDW-5000 | |
Maximum Torque(N/m) | 100 | 200 | 500 | 1000 | 2000 | 3000 | 5000 | |
Control Method | Constant torque and constant speed rotation, constant speed twist angle , close loop control mode | |||||||
Machine level | 1 Class | |||||||
Torque Test Range(F·S) | 2%~100%F·S | |||||||
Torque value relative error(%) | ≤±1 | |||||||
Torque display resolution | 1/20000 | |||||||
Torsional Angle Test Range(F·S) | 2%~100% | |||||||
Torsional Angle value relative error (%) | Better than ±0.5 | |||||||
Torsional Angle display resolution | 1/20000 | |||||||
intersection angle value relative error (%) | ≤±1 | |||||||
intersection angle display resolution(°) | 0.01 | |||||||
Max. torsion Angle | 99999° | |||||||
Torsional angular rate control range (°/min) | 0.05-800 | |||||||
Chuck spacing effectively (mm) | 600 | |||||||
Power Supply | 220V±10%,50Hz |
Configuration
3.1 Desktop high strength wire torsion host--- 1 Set
3.1.1 High precision arc synchronous gear system --- 1 Set
3.1.2 Efficient cycloidal reducer --- 1 Set
3.1.3 High precision Taiwan ABBA linear bearings --- 1 Sets
3.1.4 Reverse the special auxiliary equipment
3.2 Measurement and Control Systems:
2.1 Photoelectric revolving speed measuring device ---- 1 Set ;
2.2 DC speed governing drive ---- 1 Set ;
2.3 DC variable speed motors---- 1 Set ;
3.2.4 High precision torsion sensor --- 1 Pc
3.2.5 Lenovo Computer --- 1 Set
3.2.6 HPA4 Color Printer --- 1 Set
3.2.7 Measurement and control system --- 1 Set
3.2.8 Windows operate testing machine control software --- 1 set
NDW Series Computer Control Axial Torsional Material Testing Machine/Laboratory Test Equipment

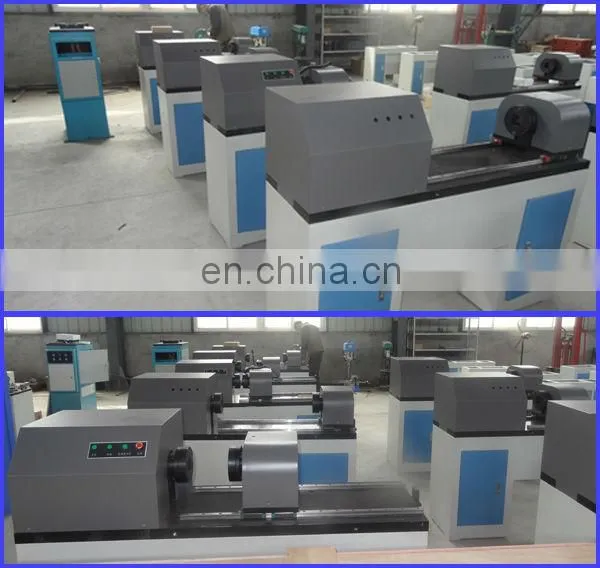

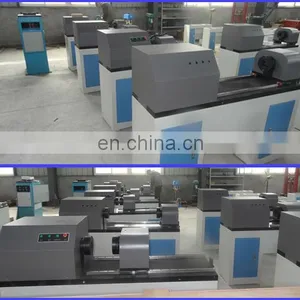

detail show:
Packaging Details:Standard Export Wooden Case Or As Customers' Requestments
Delivery Detail:7 Workdays After Receiving Customers' Payment
