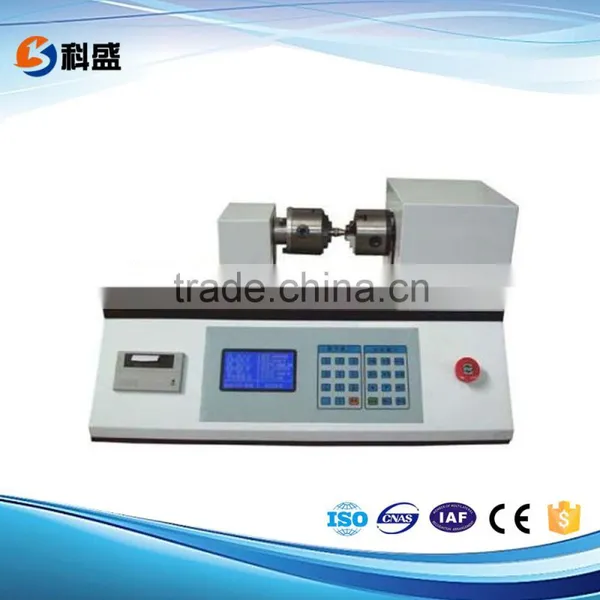

NJS-Z150 150N.m Digital Display Torsion Testing Machine/Tension torsion testing machine 150NM
Applications :
NJS-Z150 150N.m Digital Display Torsion Testing Machine/Tension torsion testing machine 150NM is designed and built for torsion test on metal & non-metal materials, as well as parts &
components. It is an essential instrument to inspect torsion properties of materials in mechanics laboratories
of aviation industry, construction industry, scientific research department, universities & industrial enterprises.
Features:
NJS-Z150 150N.m Digital Display Torsion Testing Machine/Tension torsion testing machine 150NM adopts AC servo system & is loaded through the rotation of the active cartridge driven by
the AC servo motor and cyclonical pinwheel reducer motor. The torque and torsion angle are measured with
high-precision torque transducer & photoelectric encoder.
l Automatic operation with only one key touch to finish the test;
l LCD monitors to show the test in real time.
l Micro-printer prints the test result.
Main Specifications:
Model |
NJS-Z50 |
NJS-Z100 |
NJS-Z150 |
NJS-Z200 |
Max torque(N/m) |
50 |
100 |
150 |
200 |
Relative error of torque display |
≤ ±1.0% |
|||
Range of test speed(°/min) |
0.36-360
|
|||
Max. reading of torsion angle( ° ) |
9999.9 |
|||
Resolution of reading of torsion angle( ° ) |
0.01
|
|||
Relative error of torque indications |
≤ ±1.0% |
|||
Diameter of specimen (mm) |
10 |
|||
Max. testing space (mm) |
300-500 |
|||
Noise |
≤65dB |
|||
Power |
AC 220V±10%,50Hz |
|||
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
