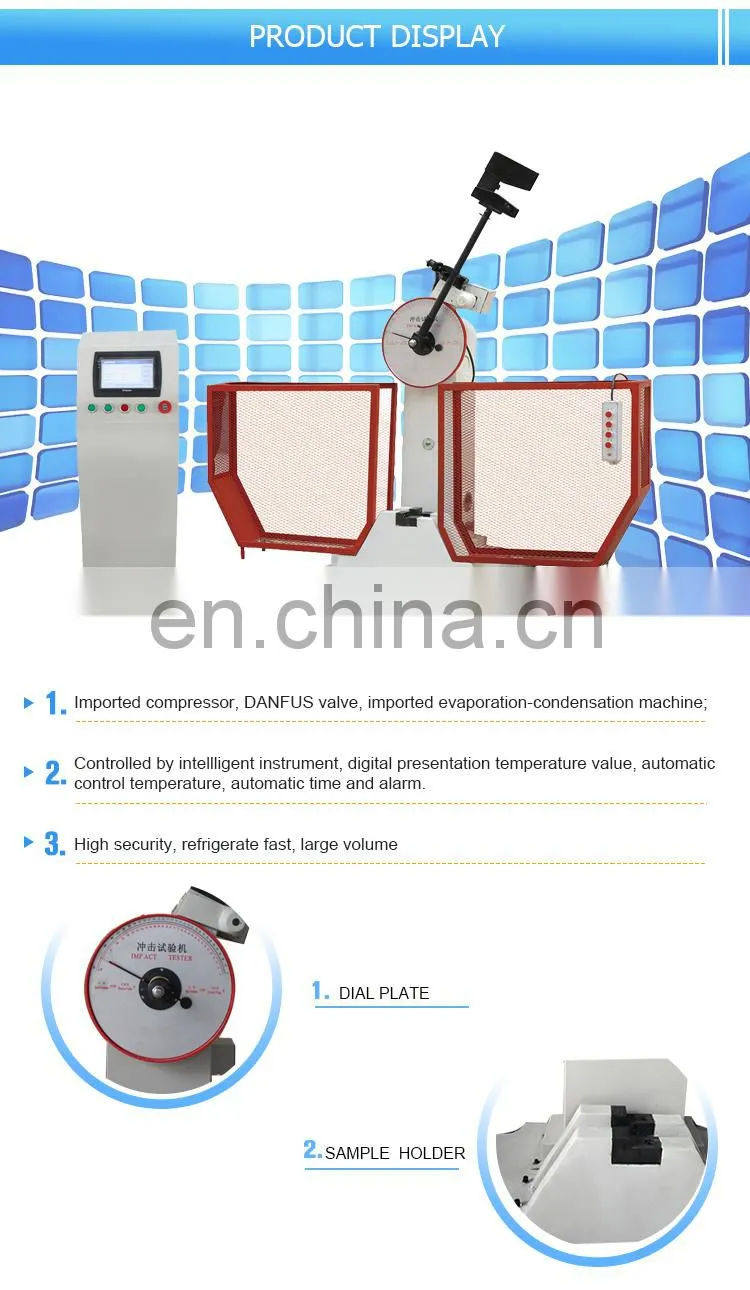

Izod and charpy 300J computer control metal impact testing machine from China
1.Application:
JBS-B Touchscreen Digital Display Charpy Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
2.Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007.
3.Technical Specifications:
Model |
JBS-300B |
JBS-500B |
JBS-750B |
Impact Energy |
150 J / 300 J |
250 J / 500 J |
500 J / 750 J |
Control Methods |
Single Chip Control |
||
|
The Distance Between The Pendulum Shaft And Impact Point |
750 mm |
800 mm |
|
Minimum Reading Value |
1 J |
2 J |
|
Impact Speed |
5.2 m/s |
5.4 m/s |
5.9 m/s |
Pre-rising Angle Of The Pendulum |
150° |
||
Specimen Bearer Span |
40+0.2 mm |
||
Round Angle Of The Jaw |
R 1.0~1.5 mm |
||
Round Angle Of Impact Edge |
R 2.0~2.5 mm (Special Order: R8±0.05 mm) |
R2.0-2.5 mm, R8.0±0.05 mm |
|
Angle Accuracy |
0.1° |
||
Pendulum Torque |
M=160.7695N.m 80.3848N.m |
||
Standard Specimen Dimension |
10 mm * 10(7.5 or 5) mm * 55 mm |
||
Impact Pendulum Configuration |
150 J, 1 PC; 300 J, 1 PC |
250 J, 1 PC; 500 J, 1 PC |
500 J, 1 PC; 750 J, 1 PC |
Power Supply |
3phs, 380V, 50Hz |
||
Dimensions |
2124mm * 600mm * 1340mm |
2450mm*1200mm *2455mm |
|
Net Weight |
480 KG |
610 KG |
2330 KG |
4. Features:
4.1.Pendulum rising, impact, free releasing is realized as automatically by micro control meter or
remote control box.
4.2.Safety pin guaranties the impact action, standard protection shell to avoid any accident.
4.3.Pendulum will automatically rising and ready for next impact action after specimen breakout.
4.4.With two pendulums (big and small), LCD touching screen display the energy loss, impact
tenacity, rising angle, and test average value, meantime the dial scale show test result as well.
4.5.Built-in micro printer to print test result.
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
1.Shipping & delivery: It depends on your requirement. We offer as many shipping options as possible, we have cooperated with some transpotation companies and shipping companies. If you need, we can transport products to our country port or even shipping to your country port.
2. Machine' Packaging: Simulation Aninmatronic Costom Triceratops are covered with air bubble firm before put them into the wood en case, which not only has good shock absorption, impact resistance, heat sealing and also has theadvantages of nontoxic, odorless, moisture corrosion, good transparency ect.
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 20 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 16 months by HST,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest
problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
products are widely recognized and trusted by users.
♥ More information welcome to contact us now!
And welcome to our company! We display more new design in our showroom.
Our company can also produce the customized testing machines as clients' requirements.
Best service and the best price for you .
Our cooperative partner :
