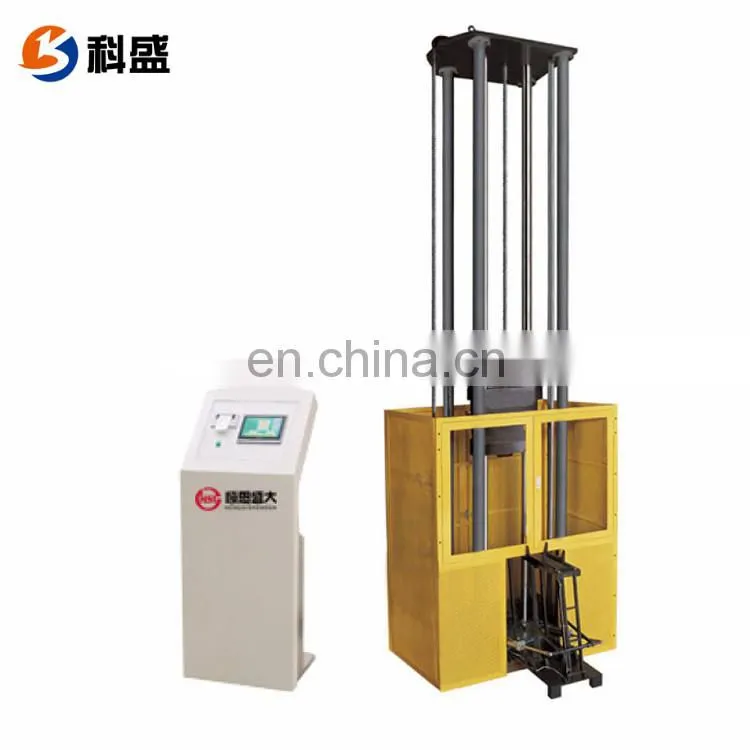

Help CenterNDT-4000 NDT Metal Drop Hammer Impact Test Machine
Related Products
-
JB-300 Manual Charpy Pendulum Impact Testing Machine For SaleUS$ 2,650 - 3,050MOQ: 1 Set -
Izod and Charpy 300J Computer Control Metal Impact Testing Machine /izod Impact Strength Tester From ChinaUS$ 8,000 - 11,200MOQ: 1 Set
-
JBW -300B Computer Control Pendulum Charpy Impact Testing Machine Charpy Impact Test Equipment PriceUS$ 5,550 - 5,700MOQ: 1 Set
-
JBW -500B 500J Computer Control Pendulum Charpy Impact Testing Machine Impact Test EquipmentUS$ 7,650 - 7,800MOQ: 1 Set
-
JBW -300C 300J Computer Control Pendulum Charpy Impact Testing Machine Charpy Impact Test Equipment PriceUS$ 8,100 - 8,300MOQ: 1 Set
NDT Series Digital Display Drop Hammer Impact NDT Test Equipment
1.Application:
This machine is applicable for nil ductility transition temperature testing of ferrite steel.
NDT temperature is the highest temperature when the standard specimen is broke
according to the standard of ASTM E208-2006,GB/T 6803-1986.
Also means the highest temperature of the crack steel occurred brittle fracture under
dynamic loading yield stress.
2.Standards:
ASTM E208-2006,GB/T 6803-1986.
3.Main Technical Specifications:
|
Model |
NDT-2000 |
NDT-3000 |
NDT-4000 |
NDT-6000 |
|
Max impact energy(J)
|
2000 |
3000 |
4000 |
6000 |
|
Min impact energy(J) |
300 |
350 |
600 |
750 |
|
Hammer quality (Kg) |
70 |
70 |
80 |
80 |
|
Main hammer body quality error |
±1%
|
|||
|
Impact height (mm)
|
750mm~3200 |
|||
|
Impact speed (m/s)
|
3.8-7.6 |
|||
|
Lifting hammer speed (m/min)
|
7 |
|||
|
Height test resolution(mm)
|
0.1 |
|||
|
Height test error(mm)
|
≤±10
|
|||
|
Hammer blade hardness |
HRC≥50 |
|||
|
Hammer blade radius of curvature |
R25mm |
|||
|
Bearing hardness |
HRC58~62
|
|||
|
Hammer blade center,Sample center and Support center deviation (mm)
|
≤±2.5
|
|||
|
sample bearing span(mm)
|
P-1:305 P-2,P-3:100
|
|||
|
Sample size(mm)(length×width×thickness) |
P-1sample:(360±1)×(90±2)×(25±2.5) P-2 sample:(130±1)×(50±1)×(20±1) P-3 sample:(130±1)×(50±1)×(16±0.5)
|
|||
|
(optional)high temperature device |
0°C -- 100°C,low temperature 0~-80°C
|
|||
4. Features:
Composed by framework, ascension, hammer body, the anvil block, safety protection
and control systems.Through adjusting the number of weight thallium and impact height
to adjust the impact energy. With anti secondary attack, automatic send sample function.
Specimen alignment is accurate and fast, energy range stepless adjustable, with energy
automatic display function.

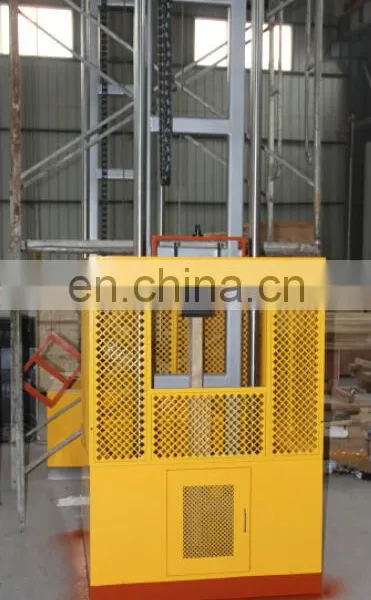

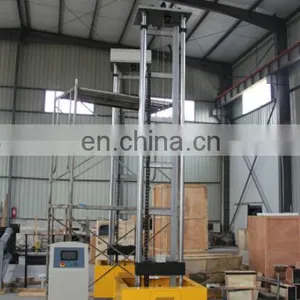

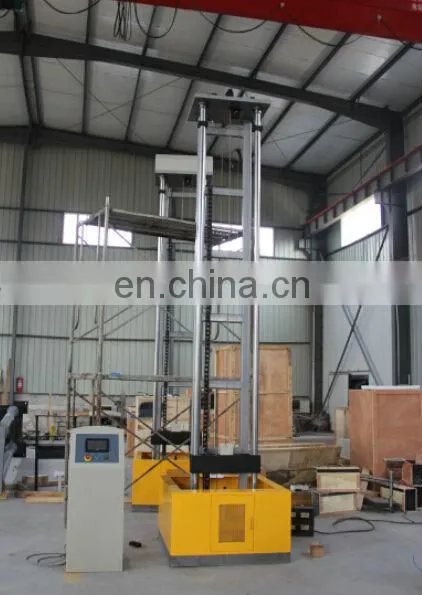

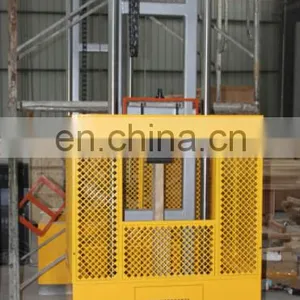

Digital Display Drop Hammer Impact Test Machine

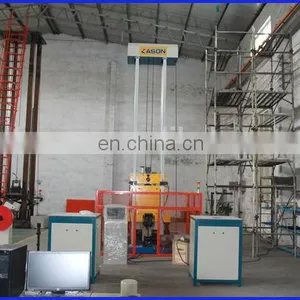

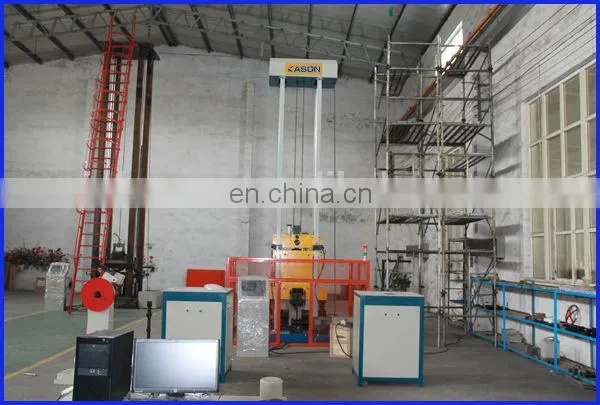

Factory:
