Product Details
| Brand Name | kason | Place of Origin | Shandong, China | |
| Model Number | JBW-C | Power | Electronic |
Product Description

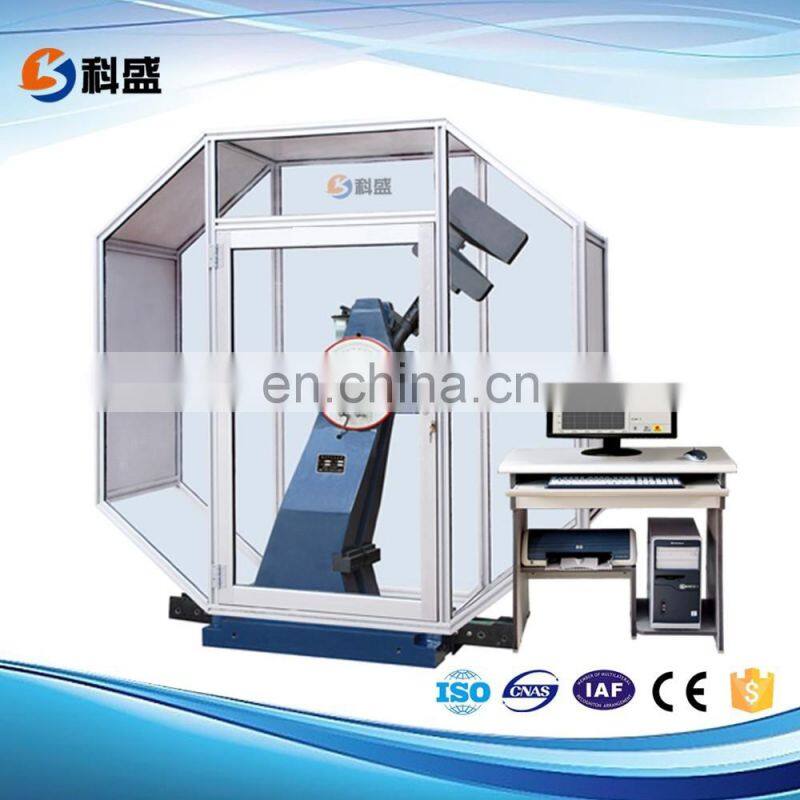

high standard: JBW-C drop dart impact testing machine
1. Application
JBW-C type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Description
The type uses PC computer control, it can achieve Yang pendulum→impact→measure→operation→digital display→print etc computerized operations,high efficiency, high precision. Especially for continuous impact test lab and do a lot of impact test metallurgy, machinery manufacturing and other industries. The computer can calculate and display material impact absorbed energy, the pendulum Yang angle and test averages. It can achieve remote data transmission according to user needs.
3.Features
3.1 Main frame is dual prop, shaft simply supported beam supporting, hanging pendulum, a reasonable distribution of radial load bearing host stiffness, particularly suitable for large energy impact test.
3.2 Standard dual-stage reducer mention hammer, smooth operation.
3.3 Hanging pendulum device uses a hydraulic cushion, hanging pendulum steady
3.4 Pendulum 3D design, to ensure the combat center accurate, precise moment the pendulum.
3.5 Shock knife with screw mounting, easy replacement.
3.6 Main frame is equipped with safety pins, and is equipped with a fully enclosed safety net.
4.Main Technical Specifications
Model | JBW-300C | JBW-450C | JBW-600C | JBW-750C |
Control Method | Computer Control | |||
Max. impact energy | 300J | 450J | 600J | 750J |
Impact speed | 5.24m/s | |||
Pre-rising angle of the pendulum | 150° | |||
Angle accuracy | ±0.1° | |||
Specimen bearer span | 40mm | |||
Round angle of the jaw | R1.0~1.5mm | |||
Round angle of impact edge | R2.0~2.5mm(R8mm) | |||
Thickness of impact knife | 16mm | |||
Distance between the pendulum shaft and impact point | 750mm | |||
Standard specimen dimension | 10×10(7.5 or 5)×55mm | |||
Pendulum | 300J 1pc | 450J 1pc | 600J 1pc | 750J 1pc |
Power supply | Three-phase four-wire system 50Hz /380V | |||
