Oil/Gas Fired Thermal Fluid Heaters/Boilers for Hot Press Machine

Oil/Gas Fired Thermal Fluid Heaters/Boilers for Hot Press machine

Thermic Fluid Heater, thermal oil boiler

Heat Power:300,000-2,000,000 Kcal/H

Working Pressure :0.8 Mpa

Fuel :light oil,heavy oil,diesel

Application : textile printing and dyeing, plastic and rubber, paper industry, wood industry, building material, food industry

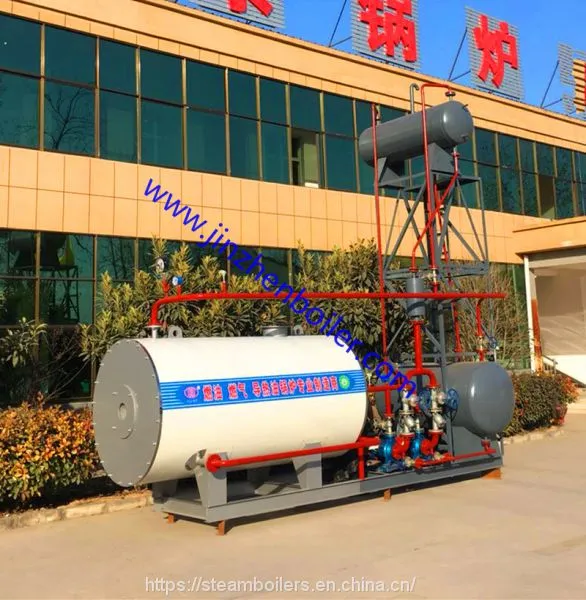

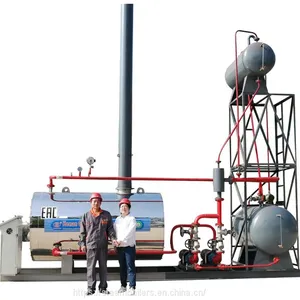

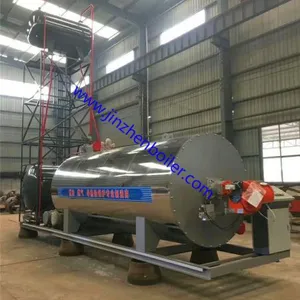

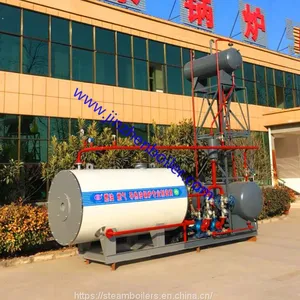

YY(Q)W series thermal oil boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil.

It is widely applied for oil chemical industry, chemical fiber industry, wood processing industry, paper making industry, building materials industry, food industry,etc.

The thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.

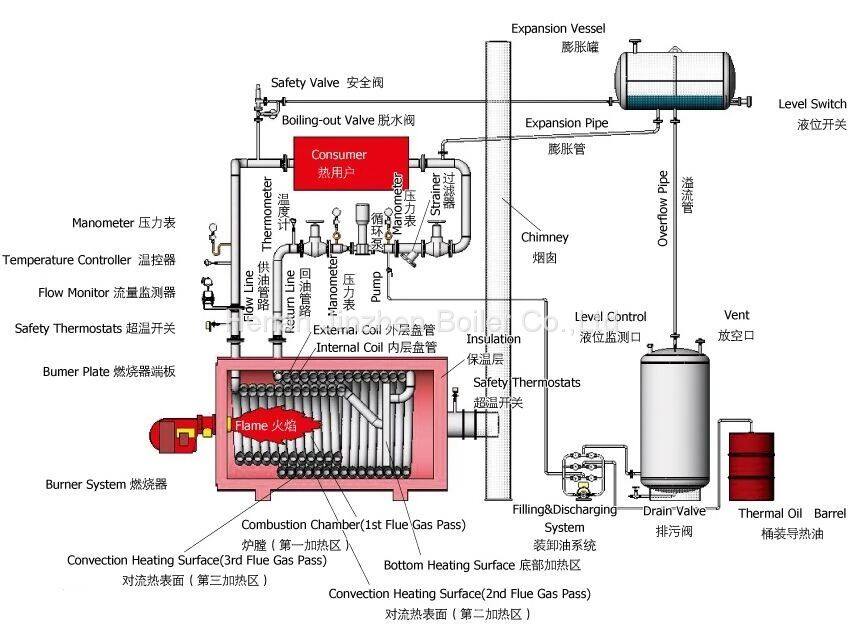

Structure of thermal oil boiler

Thermal Oil Boiler For Hot Press takes diesel, gas, town gas as fuel. Three pass and wet back structure enhance it's thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.

All boilers are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc. functions.

Technical Parameters:

Performance characteristics:

1. High Quality and Reliable Oil Gas Burner.

High combustion efficiency and environmental protection.

2. Excellent coil design.

The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.

3. Large Diameter Furnace.

Large radiation heating area, increase thermal efficiency and reduce the NOx emission.

4. High Thermal Efficiency.

1) Adopts three pass heating system, improve the heat utilization efficiency.

2) Uses aluminium silicate board for heat preservation, high thermal shielding efficiency.

3) By equipping with economizer, make full use of the heat of flue gas.

5. High Quality boiler auxiliaries and multiple safety protection devices.

(pressure controller, pressure transmitter, water level alarm, safety valve, etc.)

6. Excellent Automatic System.

Adopts PLC full automatic intelligent control system, to ensure the safe operation.

7. Convenient Maintenance

1)There are maintenance holes on the boiler, convenient for boiler internal installation, inspection and clean.

2)The explosion proof equipment has the fire sight glass and inspection gallery, it is convenient for furnace checking and maintaining.

Application

Thermal Oil boiler Can Be Used For the following Industry:

1.Petrochemical industry: Polymerization, Condensation, Distillation, Concentration, Evaporation, Melting, Dehydrogenation

2.Chemical Industry: Polymerization, Condensation, Distillation, Concentration, Evaporation, melting

Plastic Rubber Industry: Mixing, Hot Pressing, Extrusion Calendering, Internal Mixing, Open Rolling, Vulcanization Molding, Tentering, Mold Heating, Heat Preservation

3.Oil Industry: Decomposition of oil, Deodorization, Fatty Acid Distillation, Lipidation

4.Textile Industry: Heating Setting, Hot Melt Extrusion for Pharmaceutical Industry; Preparation, Configuration, Disinfection

5.Coating Industry: Paint Baking, Drying, High Temperature Curing

6.Construction Industry: Asphalt Dissolution, Paint Heating, Decorative Material Heating, Waterproof Material, Linoleum Product

7.Food Industry: Vegetables Dehydrating, Food Baking, Rice & flour  drying

8.Air Conditioning Industry: Heating for Industrial and Civil Building Heating

9.Other Industries: Paper Industry, Cardboard Industry, Leather Drying and Shaping, Other Drying

 10.Building materials industry: road bitumen heating, gypsum board drying, heating bitumen concrete, concrete elements curing, drying equipment. and other industries.

FAQ

What is the highest temperature that thermal oil heater could achieve?

thermal oil heater can reach as high as 330℃, and working under low pressure (<1.0MPa)

YY(Q)W series horizontal type oil gas fired thermal fluid heater.

What are the heat-resistance temperature of grate and furnace?

The heat resistance temperature of grate is related to the grate material, the highest temperature could be as high as 1100℃, and the lower temperature could be 700℃.

The highest heat resistance temperature of furnace could be about 1700℃~1800℃.

What is conduction oil/ hot oil / heat transfer fluid?

Conduction oil has a high boiling point, it usually used for the industries that need the temperature of 150~350℃, to instead of steam. The hot oil has the advantages of high transfer efficiency, fast heat transfer, and good thermal stability.

What about the maintenance?

I will offer you the timely maintenance way sheet after installation of the boiler mainly parts.
