Help Center300000 Kcal Horizontal Organic Heat Carrier Boiler Thermal Oil Furnace For Heat Exchanger
Related Products
-
High Temperature Thermal Fluid Heater Heat Conducting Oil Boiler For Heating Bitumen TankUS$ 8000 - 15000MOQ: 1 Set -
Industrial Thermal Fluid Heater/Thermal Oil Boiler for Wood Processing PlantUS$ 8000 - 90000MOQ: 1 Set
-
Oil Gas Fired Thermal Fluid Heaters Hot Oil Boilers for Drying, Hot PressingUS$ 8000 - 90000MOQ: 1 Set
-
Industrial Gas Fired Thermal Fluid Heater/Thermal Oil Boiler for Synthetic Fiber IndustryUS$ 8000 - 90000MOQ: 1 Set
-
Industrial Horizontal Gas-fired Thermal Fluid Heater Heat Conducting Oil Boiler for High Temperature HeatingUS$ 8000 - 90000MOQ: 1 Set
Thermic Fluid Heater, thermal oil boiler, hot oil boiler
thermal capacity: 350kw-1400KW
Working pressure:0.8-1.0 MPA
Outlet temperature:320 C
Available fuel:natural gas, coke oven gas, bio-gas,liquefied petroleum gas, diesel, heavy oil, light oil, crude oil
Available industries:Petroleum, chemical, chemical fiber, pharmaceutical, textile printing and dyeing, building materials, wood processing, vegetable oil processing and other industries
YY(Q)W series thermal fluid boiler heater has skid-mounted design and full automatic control system. The heat carrier is thermal fluid oil, boiler's working pressure ≤1.0MPa, working temperature ≤310℃. Adopting three-pass structure, 3 layer corrugated coil rings.
Free-Installation

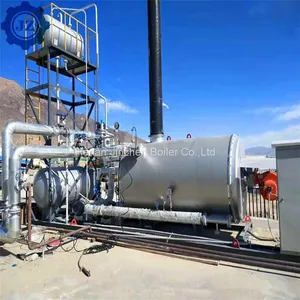

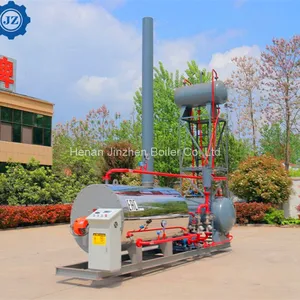

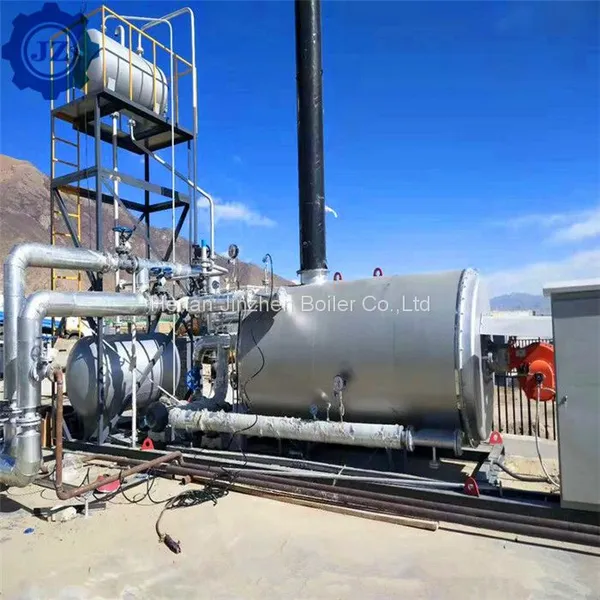

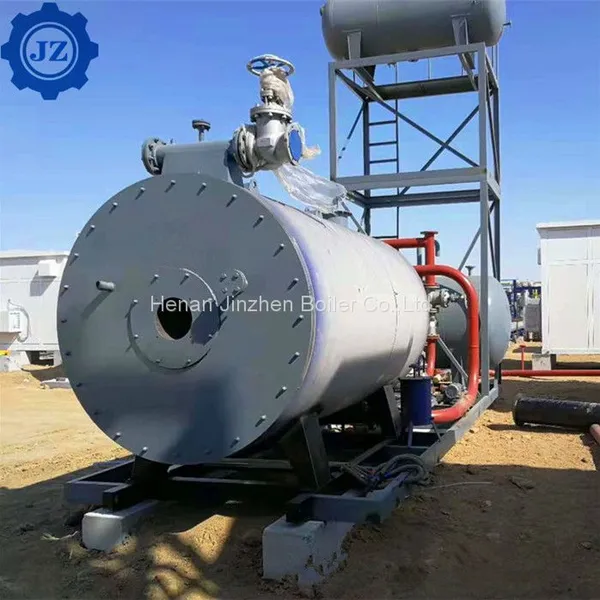

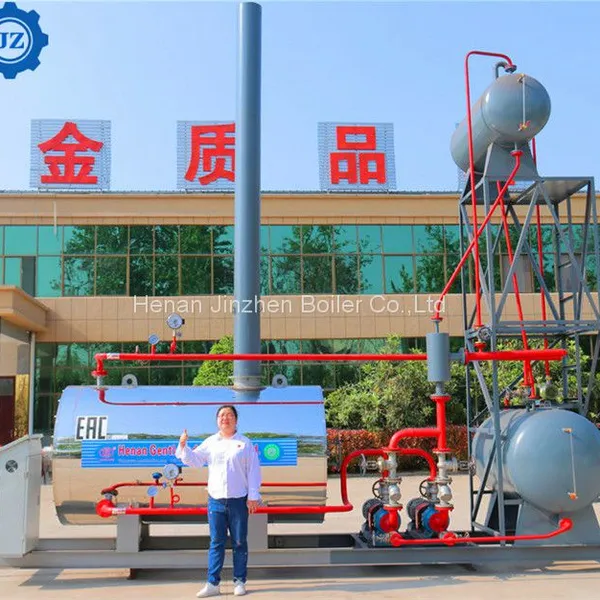

The complete boiler system is well skid-mounted on the basement, also we have done the pipe(valves) connection and wire connection. After receiving the boiler, user no need to do installation, just filling the thermal fluid oil, join the fuel and electricity. Entire boiler system is portable.
Main characters of thermal oil heater:
Model No. |
Thermal power(kcal/h) |
Heating efficiency (%) |
Max. working temp.(℃) |
Medium circulation(M3/H) |
Transport size (mm) |
Weight (Kg) |
YY(Q)W-120Y(Q) |
10*104 |
≥92.26 |
340 |
12.5 |
Φ1060*2045 |
1215 |
YY(Q)W-240Y(Q) |
20*104 |
≥92.26 |
340 |
18 |
Φ1020*1980 |
1355 |
YY(Q)W-350Y(Q) |
30*104 |
≥92.26 |
340 |
30 |
Φ1212*2310 |
1590 |
YY(Q)W-500Y(Q) |
40*104 |
≥92.26 |
340 |
30 |
Φ1212*2730 |
1680 |
YY(Q)W-700Y(Q) |
60*104 |
≥92.26 |
340 |
60 |
Φ1400*3410 |
2715 |
YY(Q)W-930Y(Q) |
80*104 |
≥92.26 |
340 |
80 |
Φ1616*3400 |
3142 |
YY(Q)W-1200Y(Q) |
100*104 |
≥92.26 |
340 |
100 |
Φ1616*4000 |
3660 |
YY(Q)W-1400Y(Q) |
120*104 |
≥92.26 |
340 |
100 |
Φ1820*4905 |
5420 |
YY(Q)W-2000Y(Q) |
160*104 |
≥92.26 |
340 |
100 |
Φ1840*4950 |
7850 |
YY(Q)W-2400Y(Q) |
200*104 |
≥92.26 |
340 |
160 |
Φ2060*4700 |
8850 |
YY(Q)W-3000Y(Q) |
250*104 |
≥92.26 |
340 |
180 |
Φ2060*5450 |
9210 |
Performance characteristics
1, larger coil combustion chamber can make the combustion in low temperature and reduce the nitrogen oxides emissions with the characters of energy saving and environmental protection.
2, the thermal oil heater structure increases the thermal efficiency. And the high-density ring tube design structure can also reduce the occupation space.
3. The reasonable circulation section structure of multi-pass heat transfer ensure the thermal oil flow load uniform and the operation stable
4, complete control system with warning system, easy operation, safe operation.
5. Spiral coil inside and outside the furnace is composed of many small diameter tube with the advantage of good performance thermal expansion and low pressure.
6, The output (oil) temperature can be accurately controlled. Medium temperature, pressure and smoke temperature protection can also be controlled.

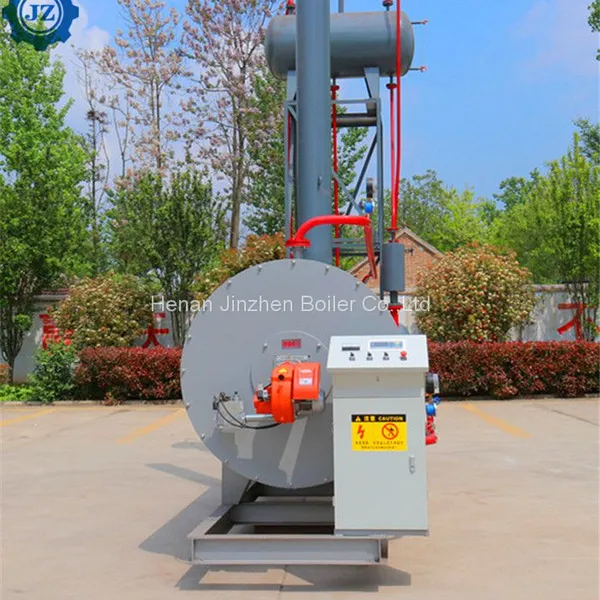

The thermal oil heaters in assembly structure is easy for installation by just connecting system devices. Intelligent control system makes heater operation control easy. Controller with screen display has auto igniting, burning, circulation pumps control, alarm and other control functions.
Boiler Application
Owing to its characteristics of high heating temperature, low working pressure, and energy saving, the hot oil boiler could be widely used in a variety of industrial production.
1) Textile industry - dyeing machine, drying rooms, high temperature machine, resin setting machine.
2) Food industry - cooking, drying, vegetable oil refining.
3) Chemical industry - oil chemistry, polymer industry, reaction tanks, distillation, concentration.
4) Plastics industry - plastics fired, extruded shape.
5) Rubber industry - hot press, hot extent, extrusion, vulcanization molding, injection, etc.
6) Paper industry - drying, corrugated paper processing, calender, glue roller.
7) Wood industry - hot processing, heat setting.
8) Machinery industry - drying, assembly processing
9) Building materials industry - plasterboard drying, asphalt heating, emulsified asphalt, asphalt concrete, concrete component maintenance, etc.
10) Synthetic fiber industry: polymerization, melting, spinning, extension, dry
