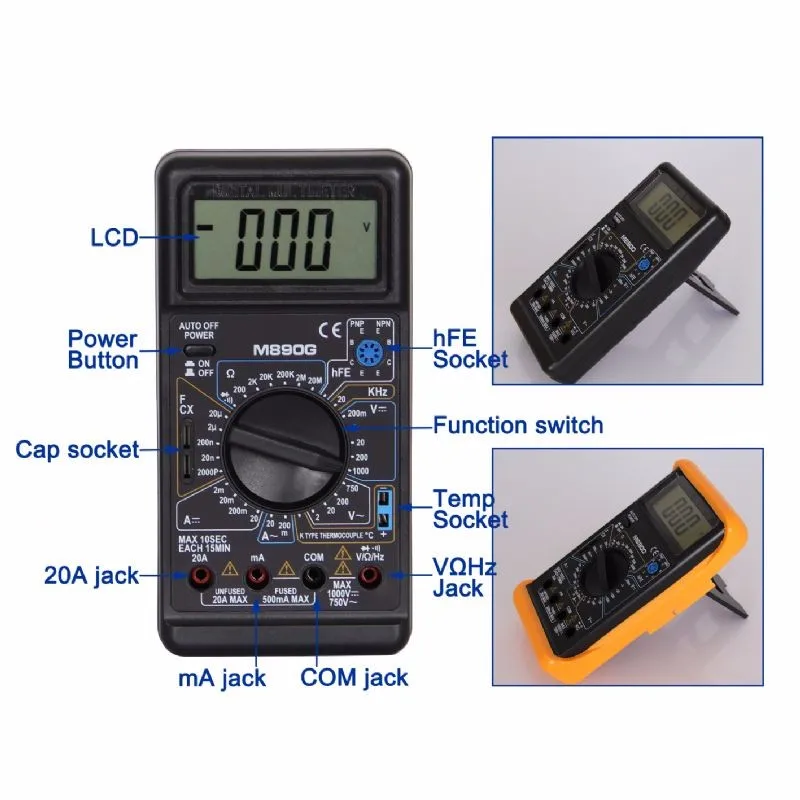

M890G Useful Digital Multimeter Large LCD Display With Temperature and Frequency Function

M890G Useful Digital Multimeter Large LCD Display With Temperature and Frequency Function thumbnail-1
M890G Useful Digital Multimeter Large LCD Display With Temperature and Frequency Function thumbnail-2
M890G Useful Digital Multimeter Large LCD Display With Temperature and Frequency Function thumbnail-3
M890G Useful Digital Multimeter Large LCD Display With Temperature and Frequency Function photo-1
M890G Useful Digital Multimeter Large LCD Display With Temperature and Frequency Function photo-2
M890G Useful Digital Multimeter Large LCD Display With Temperature and Frequency Function photo-3
US$ 4.61 - 4.61 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Brand Name:
FRANKEVER
Place of Origin:
Zhejiang, China
Model Number:
M890G
Contact Supplier Request Quote Chat Now
Hangzhou Frankever Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name FRANKEVER
Place of Origin Zhejiang, China
Model Number M890G
Operating Temperature -20-45℃
Dimensions 170x87x35mm
Measuring Inductance Range 20KHz
Measuring Capacitance Range 2000p-20n-200n-2u-20uF
Measuring Resistance Range 200-2K-20K-200K-2M-20MΩ
Measuring Voltage Range DCV: 200m-2-20-200-1000V/ACV: 2-20-200-750V
Measuring Current Range DCA: 2m-20m-200m-20A /ACA: 200m-20A
Product Description

Product Application

Technology features

DCV: 200m-2-20-200-1000V ±0.5%

ACV: 2-20-200-750V ±1.0 %

DCA: 2m-20m-200m-20A ±1.8%

ACA: 200m-20A ±2.0%

Resistance: 200-2K-20K-200K-2M-20MΩ ±1.0%

Capacitance: 2000p-20n-200n-2u-20uF ±4.0%

Frequency: 20KHz ±3.0%

Temperature: -20ºC ~1000ºC ±2.0%


Description

LCD size:63x27mm

MAX display:1999

Low battery indication: yes

Overload protection: yes

Diode test: yes

Continuity buzzer test: yes

Transistor test: yes

Auto power offer: yes

Power supply: one 9V 6F22 battery

Product size: 170x87x35mm

Product weight: about 215g

Standard accessories: meter (with battery), test lead, thermocouple, manual

Factory
Packing & Delivery
Packaging
Size
170(L) * 87(W) * 35(D)MM
Weight
215g



Packaging Details
Packing: color box

Packing quantity: 100PCS/CTN

Carton size: 56x35x29CM

G.W.: / N.W.: 18/17KG
