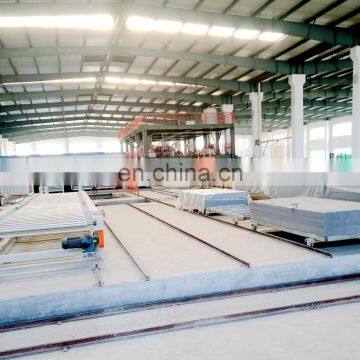

Straw Fireproof Glass Magnesium Machine Wall Board Production Line / Supply Waterproof Mgo Board Production Line

Shandong Yurui Internationl.

We are building material group company with 8 branches specialized in different building material and machinery manufacturing with 30 years history. our company occupy the finest mgo board production formular and the highest configuration machinery equipment in china .

Main Features

Machine parts

Name: automatic board loading machine
Brand: Yurui
Original: China
Function: used to feeding PVC mould on forming line automatically, no need manual work, and increase PVC mould service life

Machine Parts

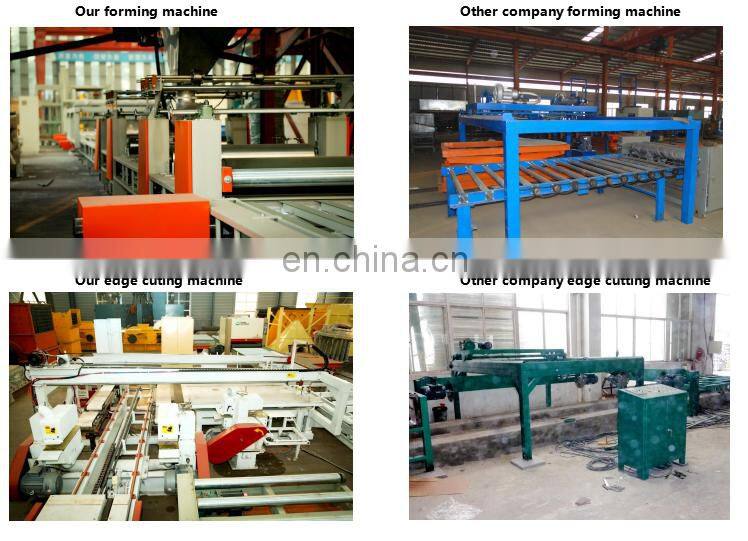

Name: Multifunctional forming system

Brand: Yurui

Original: China

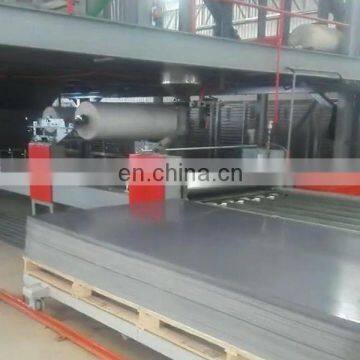

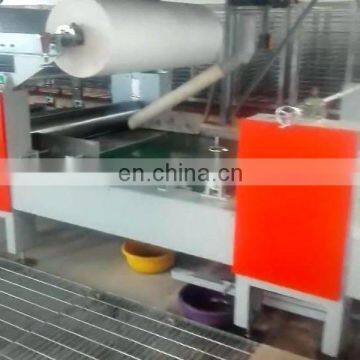

Function ：incluing all configuration of automatic feeding slurry, automatic laying cloth, automatic flatting, 5groups of roller, second -pressing.

Machine parts

Name: Forming system automatic cutting machine
Brand: Yurui
Original: China
Function :exactly cutting the board into designated
length during production flow, no damage to the board and PVC moulds, reducing labor cost and lower working strength.

Machine parts

Name: Forming /demoulding system PLC automatic control system
Brand: Rittal/SIEMENS/SCHNEIDER
Original: Germany
Function :automatic control system for forming and demoulding  part

Machine Parts

Name: automatic board loading machine
Brand: Yurui
Original: China
Function :used to automatically send PVC mould and semi-finished board into semi-finished board cage vehicle

Machine parts

Name: automatic board loading machine
Brand: Yurui
Original: China
Function :be used for mixing evenly middle material ready for stand-by, this mixing machine has advantage of high speed; short time; stiring fully.

Machine parts

Name: automatic board unloading system
Brand: Yurui
Original: China

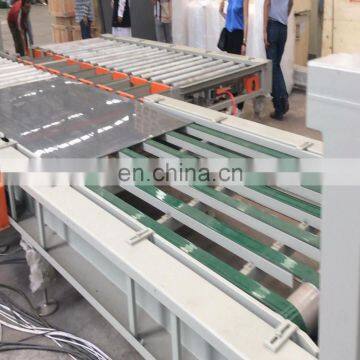

Function :used to release the board from the PVC mould and clear PVC moulds and stack them together

Machine parts

Name: automatic raw material feeding and metering system
Brand: Yurui
Original: China
Function :used to feeding and metering the raw material before mixing

Machine parts

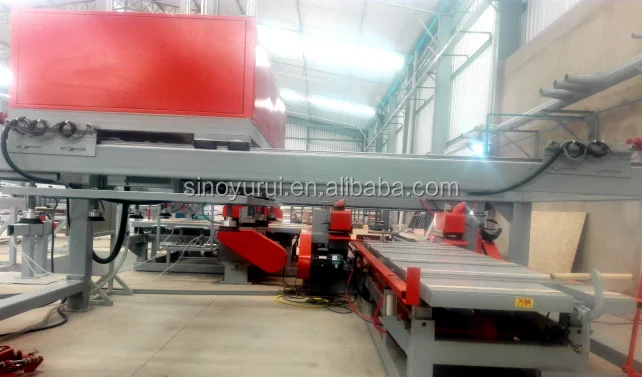

Name: Four-edge cutting machine
Brand: Yurui
Original: China
Function :used to feeding and metering the raw material before mixingcutting the formed board edges, making edge smooth and tidy, reducing error, so as to make the board more beautiful

1..Unique two times  curing process:

 First curing room(28-38degree, not higher than 40degree) and second curing room(35-45degree, not higher than 50degree), promising the complete chemical reaction of MGO and MgCl2/MgSO4, so as to ensure stable performance
of finished products.
Curing temperature needs to be reasonable. According to the different temperature in different areas, need to adopt different methods. Ideal reaction temperature is 35 to 40 degrees, equipped with heating, ventilation and dehumidifier, temperature difference is controlled in less than 5 degrees curing room Without compartment, the temperature difference will be about 10 degrees.

2..Can produce both non-woven MGO board and sanding MGO board.

 Our produce line can produce both Non-woven MGO board and sanding MGO board to help customer meet different market demind,at present we are the only factory mastering the technology of qualified sanding MGO board and its machine.

3.Good machine can ensure good board quality

4.We have a short machine testing time 10-15days

Our machine testing time only 15days ,and compare with these need one month and even some can not suceed , we can help you save much money .

5.Provide qualified formulation and workers training

After installation and commissioning ,we will provide MGO board formula suitbale with your demand ,ensuring you can produce qualified MGO board. Additional we will help local experienced engineer at least for one year to master the production process .
